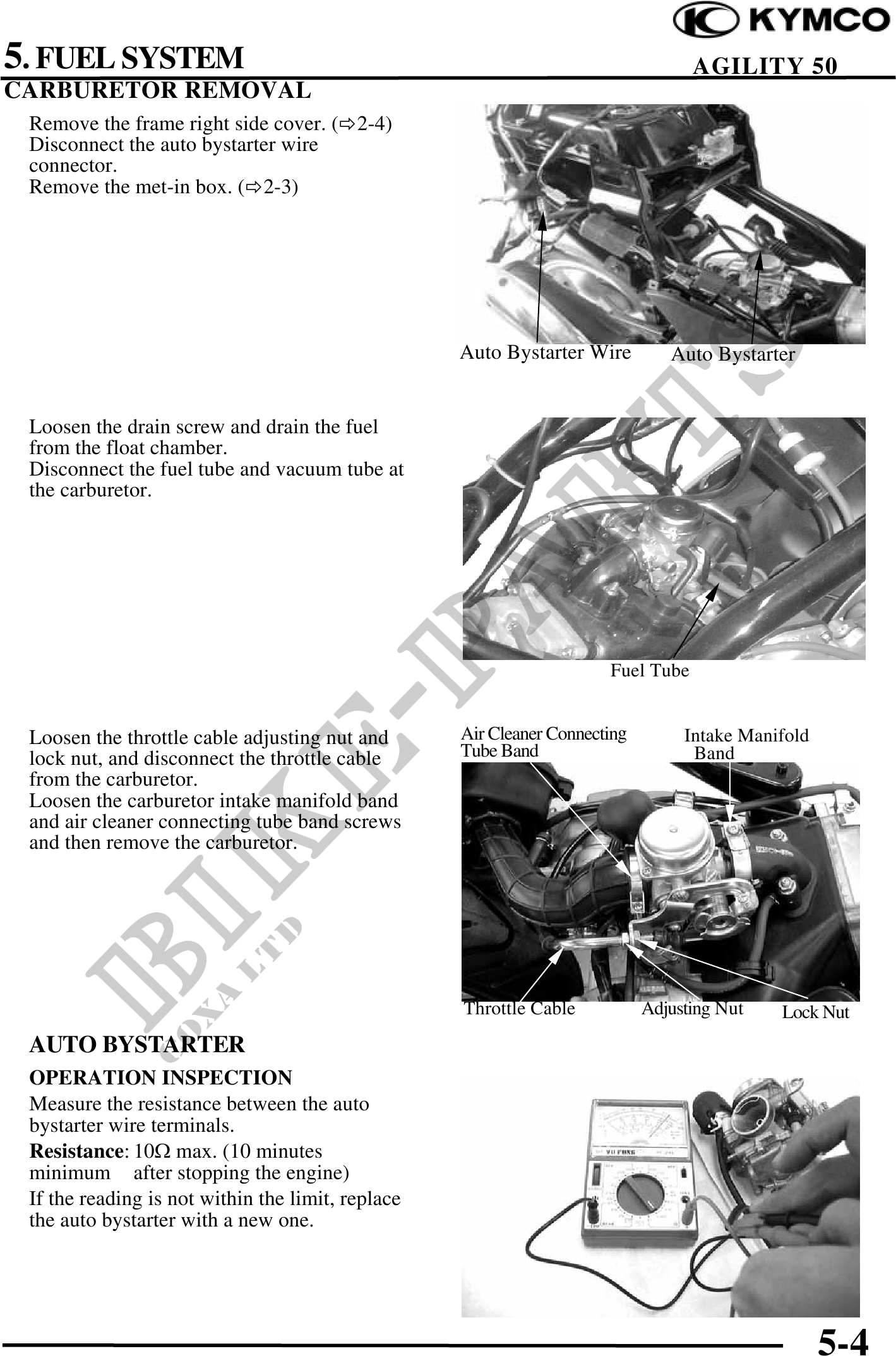

          5. FUEL SYSTEM                                                                    AGILITY 50
CARBURETOR REMOVAL
 Remove the frame right side cover. ( 2-4)
 Disconnect the auto bystarter wire
 connector.
 Remove the met-in box. ( 2-3)




                                                   Auto Bystarter Wire         Auto Bystarter


 Loosen the drain screw and drain the fuel
 from the float chamber.
 Disconnect the fuel tube and vacuum tube at
 the carburetor.




                                                                      Fuel Tube


 Loosen the throttle cable adjusting nut and       Air Cleaner Connecting        Intake Manifold
 lock nut, and disconnect the throttle cable       Tube Band                      Band
 from the carburetor.
 Loosen the carburetor intake manifold band
 and air cleaner connecting tube band screws
 and then remove the carburetor.




                                                   Throttle Cable           Adjusting Nut   Lock Nut
 AUTO BYSTARTER
 OPERATION INSPECTION
 Measure the resistance between the auto
 bystarter wire terminals.
 Resistance: 10 max. (10 minutes
 minimum after stopping the engine)
 If the reading is not within the limit, replace
 the auto bystarter with a new one.




                                                                                                   5-4
