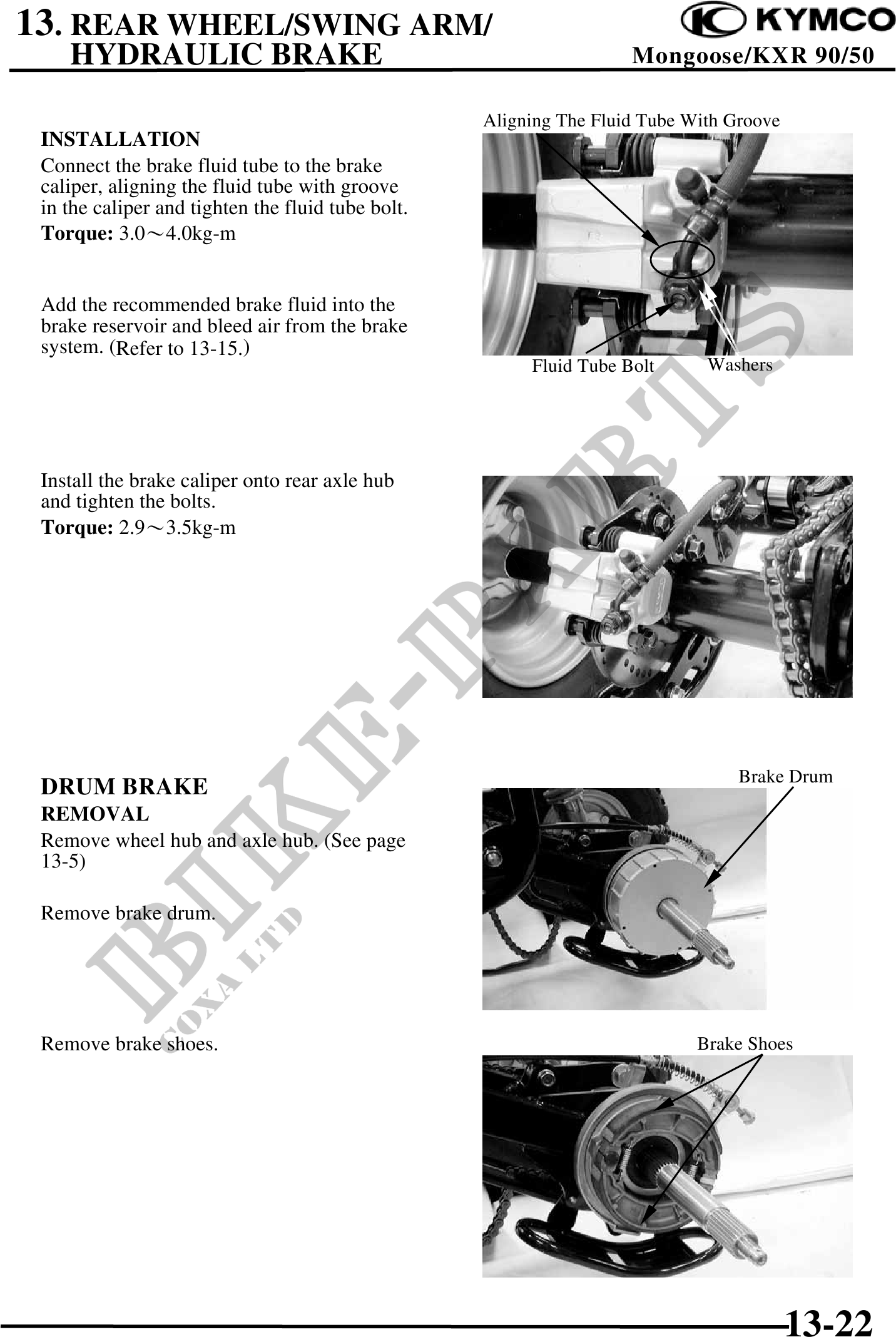

          13. REAR WHEEL/SWING ARM/
    HYDRAULIC BRAKE                                                 Mongoose/KXR 90/50

                                                   Aligning The Fluid Tube With Groove
 INSTALLATION
 Connect the brake fluid tube to the brake
 caliper, aligning the fluid tube with groove
 in the caliper and tighten the fluid tube bolt.
 Torque: 3.04.0kg-m


 Add the recommended brake fluid into the
 brake reservoir and bleed air from the brake
 system. (Refer to 13-15.)
                                                        Fluid Tube Bolt      Washers




 Install the brake caliper onto rear axle hub
 and tighten the bolts.
 Torque: 2.93.5kg-m




                                                                                 Brake Drum
 DRUM BRAKE
 REMOVAL
 Remove wheel hub and axle hub. (See page
 13-5)

 Remove brake drum.




 Remove brake shoes.                                                        Brake Shoes




                                                                                         13-22
