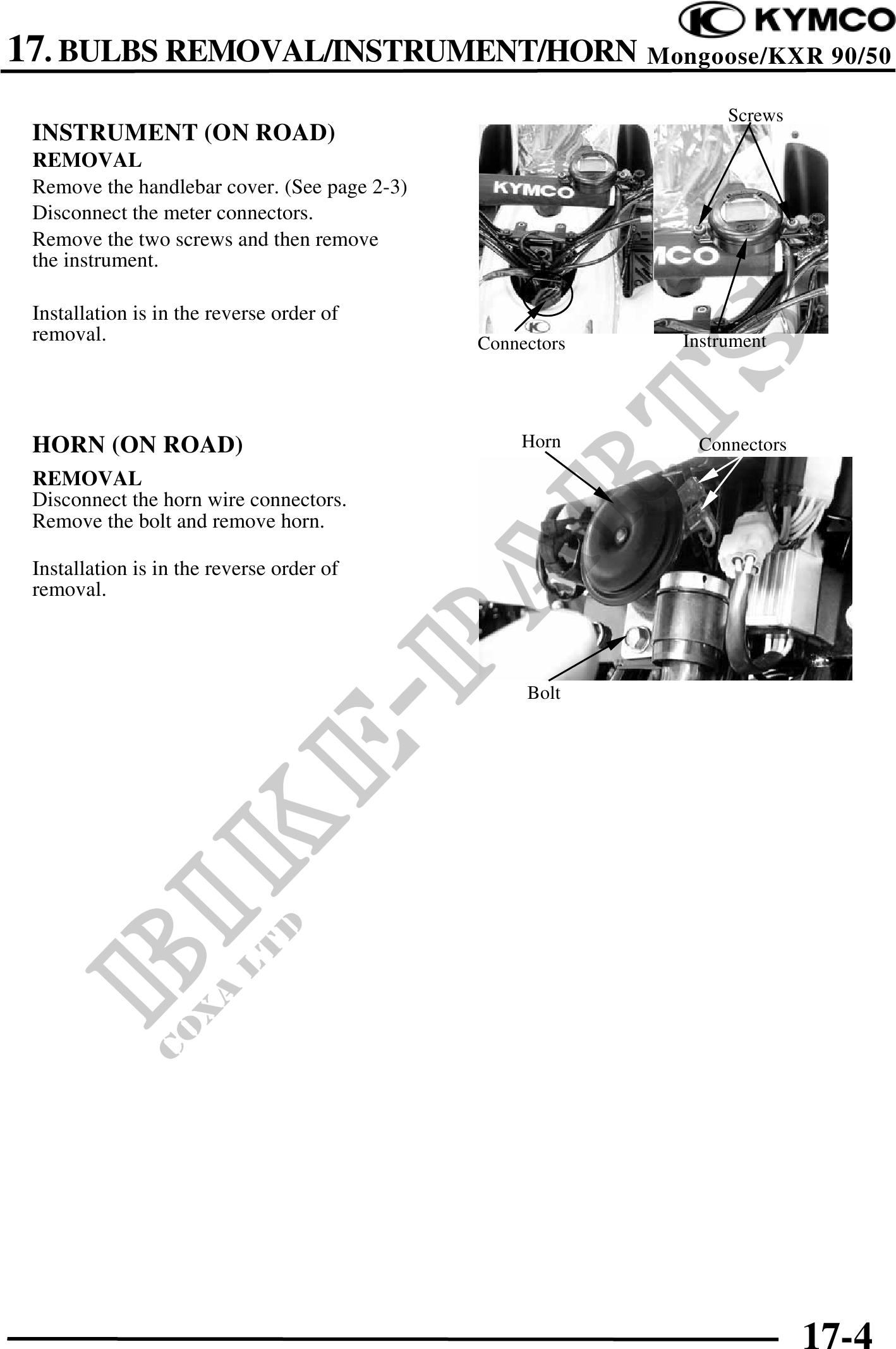

          17. BULBS REMOVAL/INSTRUMENT/HORN Mongoose/KXR 90/50
                                                                Screws
 INSTRUMENT (ON ROAD)
 REMOVAL
 Remove the handlebar cover. (See page 2-3)
 Disconnect the meter connectors.
 Remove the two screws and then remove
 the instrument.

 Installation is in the reverse order of
 removal.                                     Connectors   Instrument




 HORN (ON ROAD)                                    Horn     Connectors
 REMOVAL
 Disconnect the horn wire connectors.
 Remove the bolt and remove horn.

 Installation is in the reverse order of
 removal.



                                                   Bolt




                                                                         17-4
