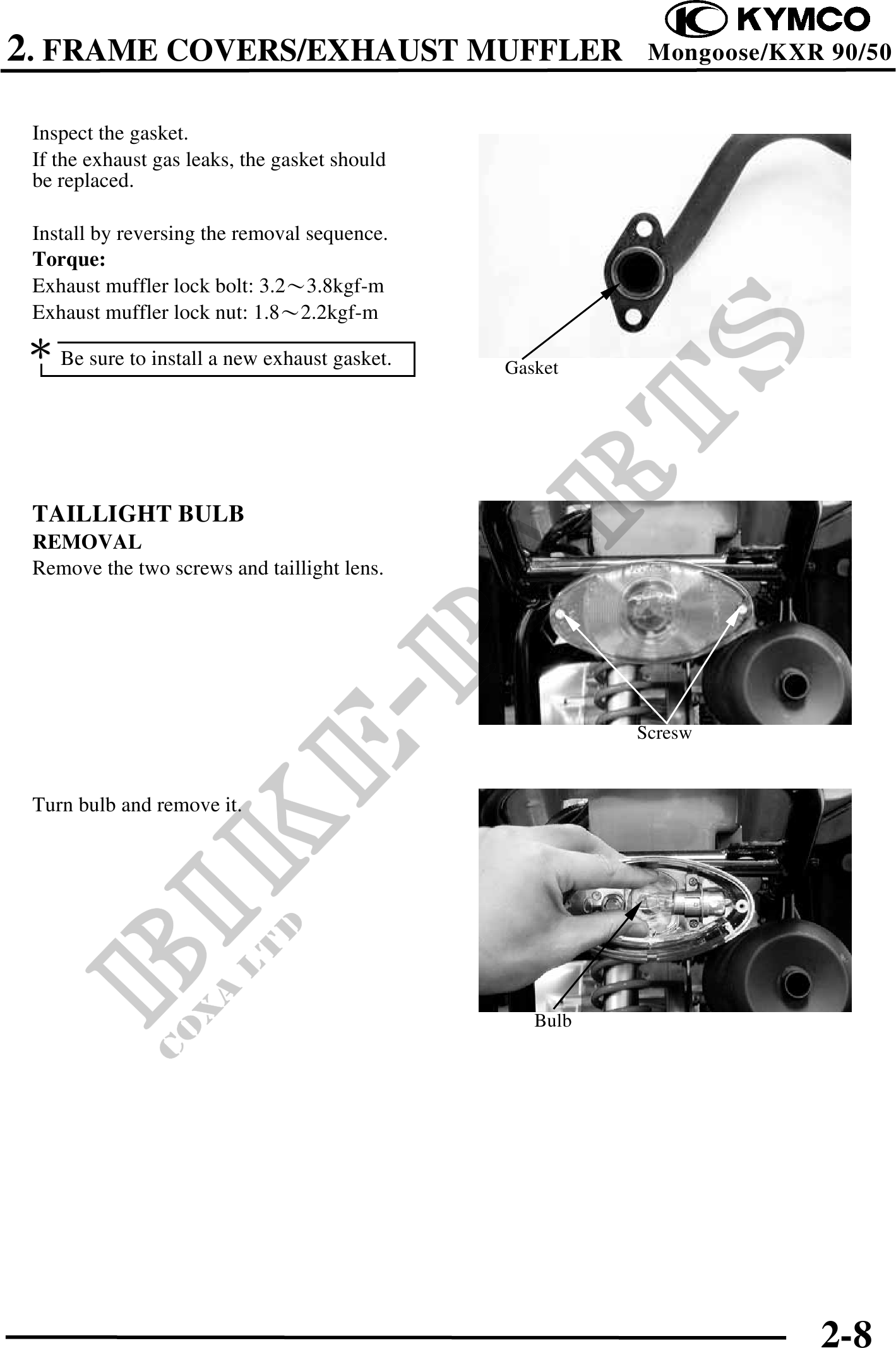

          2. FRAME COVERS/EXHAUST MUFFLER                           Mongoose/KXR 90/50


 Inspect the gasket.
 If the exhaust gas leaks, the gasket should
 be replaced.

 Install by reversing the removal sequence.
 Torque:
 Exhaust muffler lock bolt: 3.23.8kgf-m
 Exhaust muffler lock nut: 1.82.2kgf-m
 Be sure to install a new exhaust gasket.      Gasket




 TAILLIGHT BULB
 REMOVAL
 Remove the two screws and taillight lens.




                                                         Scresw


 Turn bulb and remove it.




                                                  Bulb
