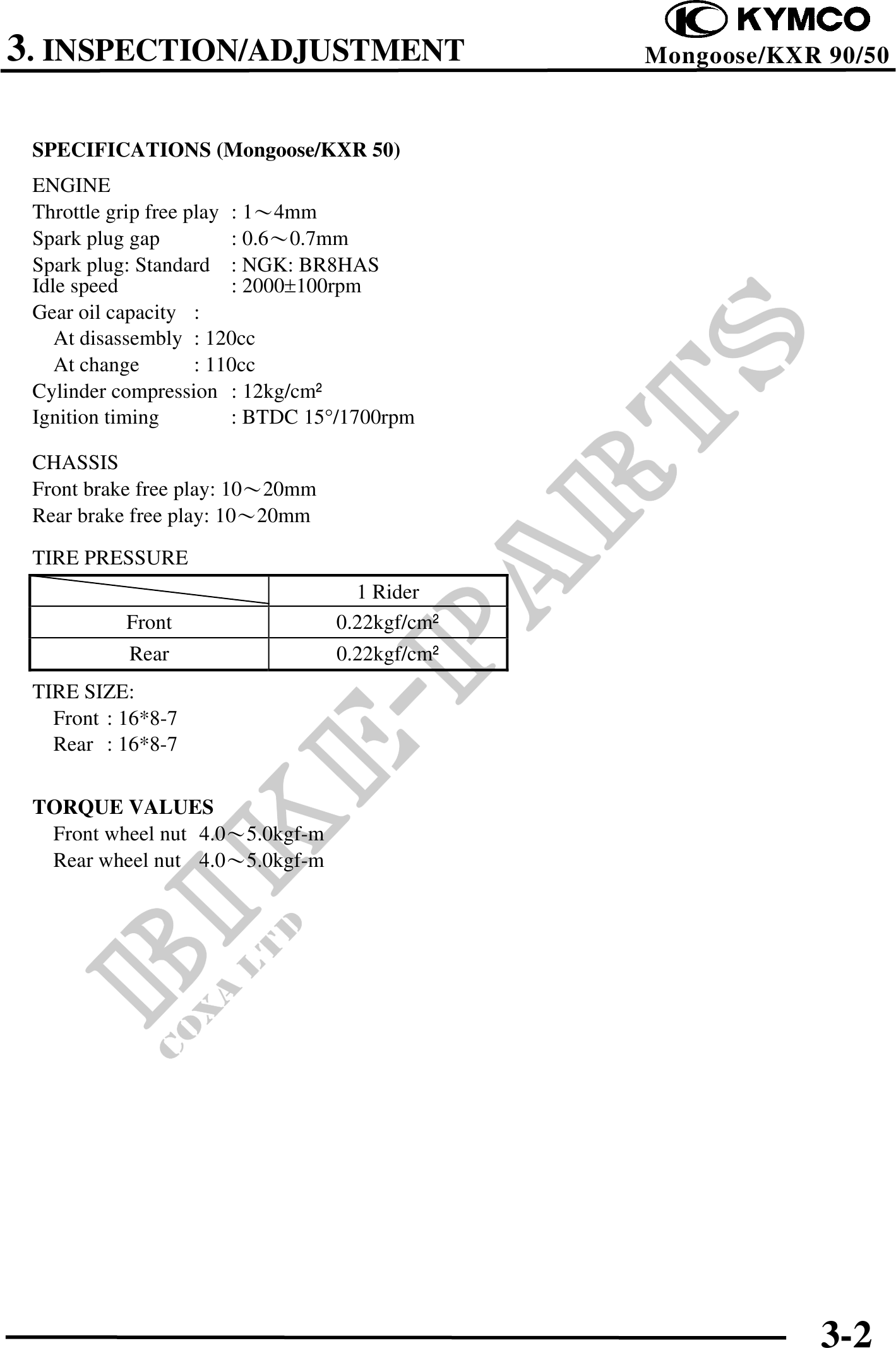

          3. INSPECTION/ADJUSTMENT                       Mongoose/KXR 90/50


 SPECIFICATIONS (Mongoose/KXR 50)
 ENGINE
 Throttle grip free play : 14mm
 Spark plug gap          : 0.60.7mm
 Spark plug: Standard : NGK: BR8HAS
 Idle speed              : 2000100rpm
 Gear oil capacity :
    At disassembly : 120cc
    At change        : 110cc
 Cylinder compression : 12kg/cm
 Ignition timing         : BTDC 15°/1700rpm

 CHASSIS
 Front brake free play: 1020mm
 Rear brake free play: 1020mm
 TIRE PRESSURE
                                    1 Rider
           Front                  0.22kgf/cm
           Rear                   0.22kgf/cm
 TIRE SIZE:
   Front : 16*8-7
   Rear : 16*8-7


 TORQUE VALUES
  Front wheel nut 4.05.0kgf-m
  Rear wheel nut 4.05.0kgf-m
