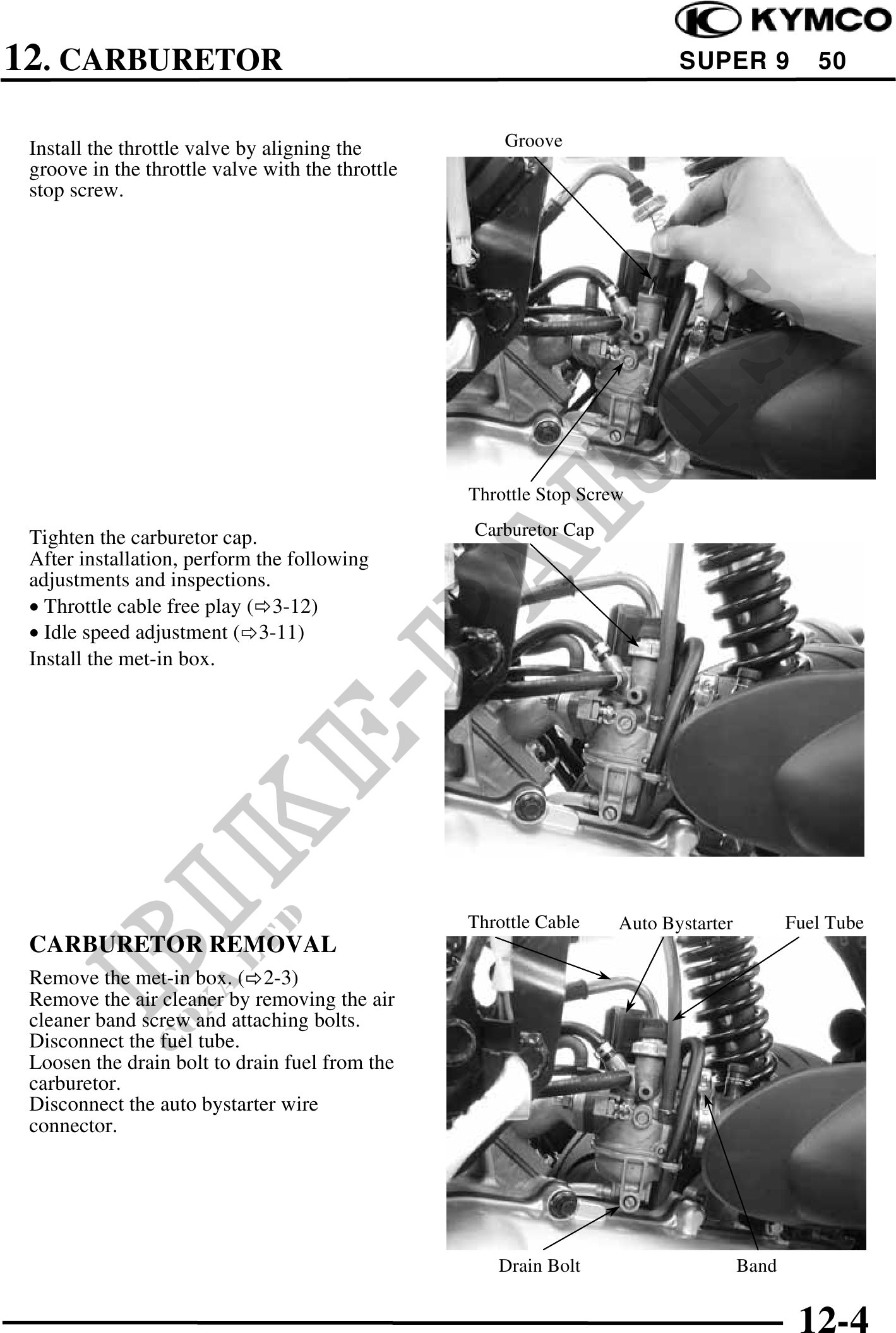

          12. CARBURETOR                                                             SUPER 9             50


 Install the throttle valve by aligning the           Groove
 groove in the throttle valve with the throttle
 stop screw.




                                                  Throttle Stop Screw

 Tighten the carburetor cap.                      Carburetor Cap
 After installation, perform the following
 adjustments and inspections.
 · Throttle cable free play ( 3-12)
 · Idle speed adjustment ( 3-11)
 Install the met-in box.




                                                  Throttle Cable    Auto Bystarter          Fuel Tube
 CARBURETOR REMOVAL
 Remove the met-in box. ( 2-3)
 Remove the air cleaner by removing the air
 cleaner band screw and attaching bolts.
 Disconnect the fuel tube.
 Loosen the drain bolt to drain fuel from the
 carburetor.
 Disconnect the auto bystarter wire
 connector.




                                                     Drain Bolt                      Band


                                                                                             12-4
