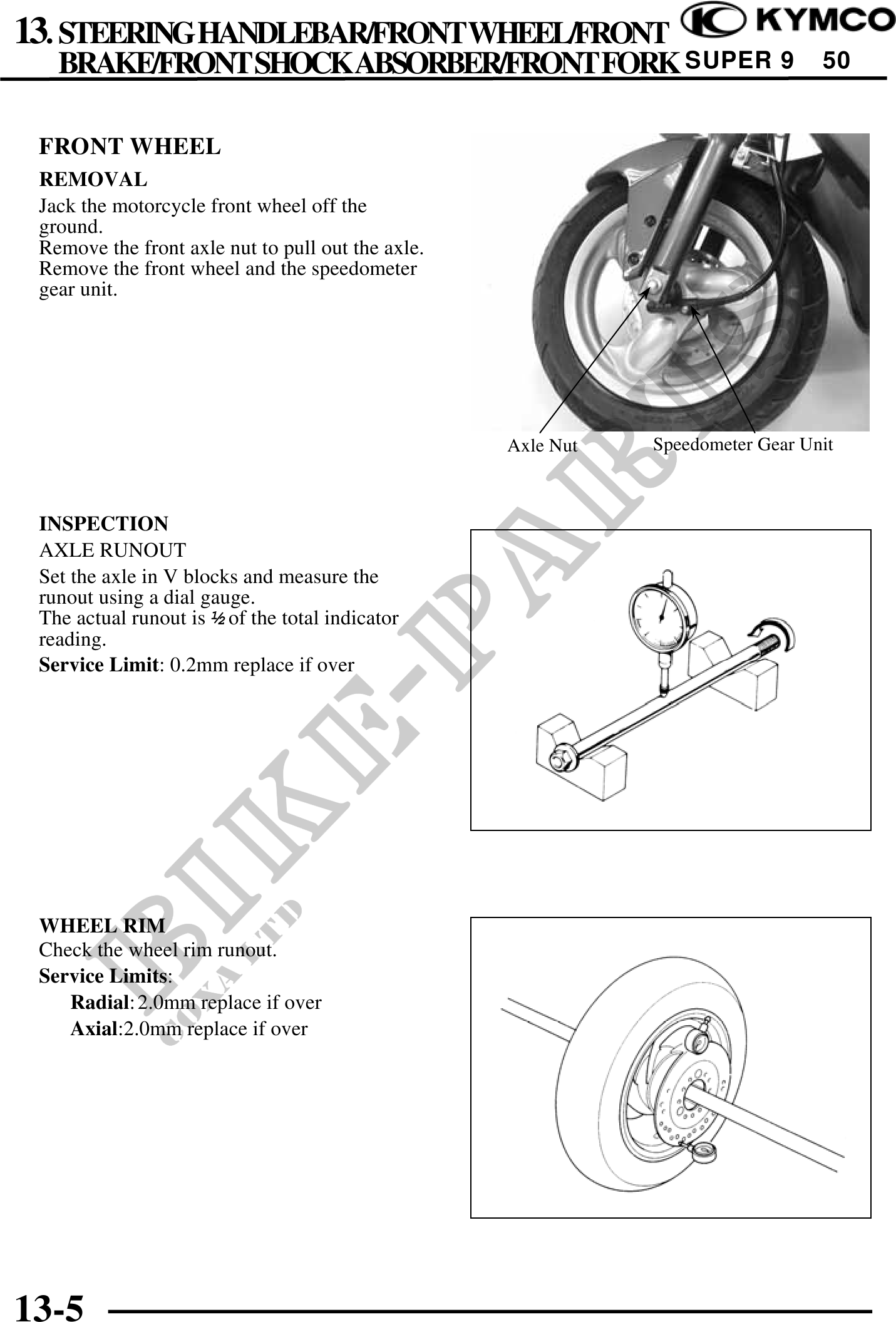

13. STEERINGHANDLEBAR/FRONTWHEEL/FRONT
BRAKE/FRONTSHOCKABSORBER/FRONTFORK SUPER 9 50
FRONT WHEEL
REMOVAL
Jack the motorcycle front wheel off the
ground.
Remove the front axle nut to pull out the axle.
Remove the front wheel and the speedometer
gear unit.
Axle Nut Speedometer Gear Unit
INSPECTION
AXLE RUNOUT
Set the axle in V blocks and measure the
runout using a dial gauge.
The actual runout is of the total indicator
reading.
Service Limit: 0.2mm replace if over
WHEEL RIM
Check the wheel rim runout.
Service Limits:
Radial: 2.0mm replace if over
Axial:2.0mm replace if over
13-5
