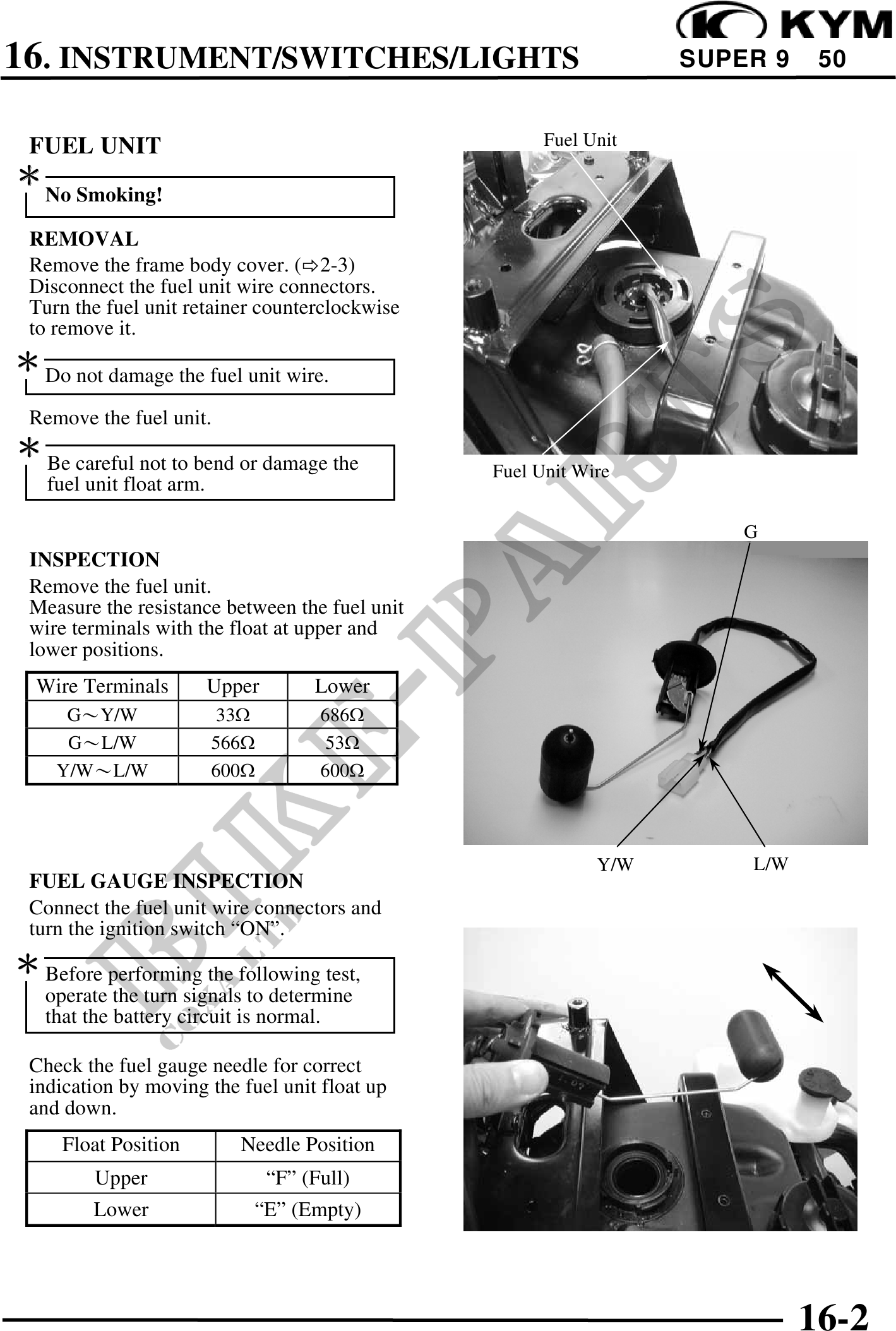

          16. INSTRUMENT/SWITCHES/LIGHTS                                    SUPER 9    50


 FUEL UNIT                                            Fuel Unit


   No Smoking!

 REMOVAL
 Remove the frame body cover. ( 2-3)
 Disconnect the fuel unit wire connectors.
 Turn the fuel unit retainer counterclockwise
 to remove it.
 Do not damage the fuel unit wire.
 Remove the fuel unit.
 Be careful not to bend or damage the
                                                Fuel Unit Wire
   fuel unit float arm.

                                                                      G
 INSPECTION
 Remove the fuel unit.
 Measure the resistance between the fuel unit
 wire terminals with the float at upper and
 lower positions.
  Wire Terminals          Upper      Lower
     GY/W                 33         686
     GL/W                 566        53
    Y/WL/W                600        600



                                                            Y/W       L/W
 FUEL GAUGE INSPECTION
 Connect the fuel unit wire connectors and
 turn the ignition switch "ON".
 Before performing the following test,
   operate the turn signals to determine
   that the battery circuit is normal.

 Check the fuel gauge needle for correct
 indication by moving the fuel unit float up
 and down.
     Float Position          Needle Position
        Upper                  "F" (Full)
        Lower                 "E" (Empty)




                                                                            16-2
