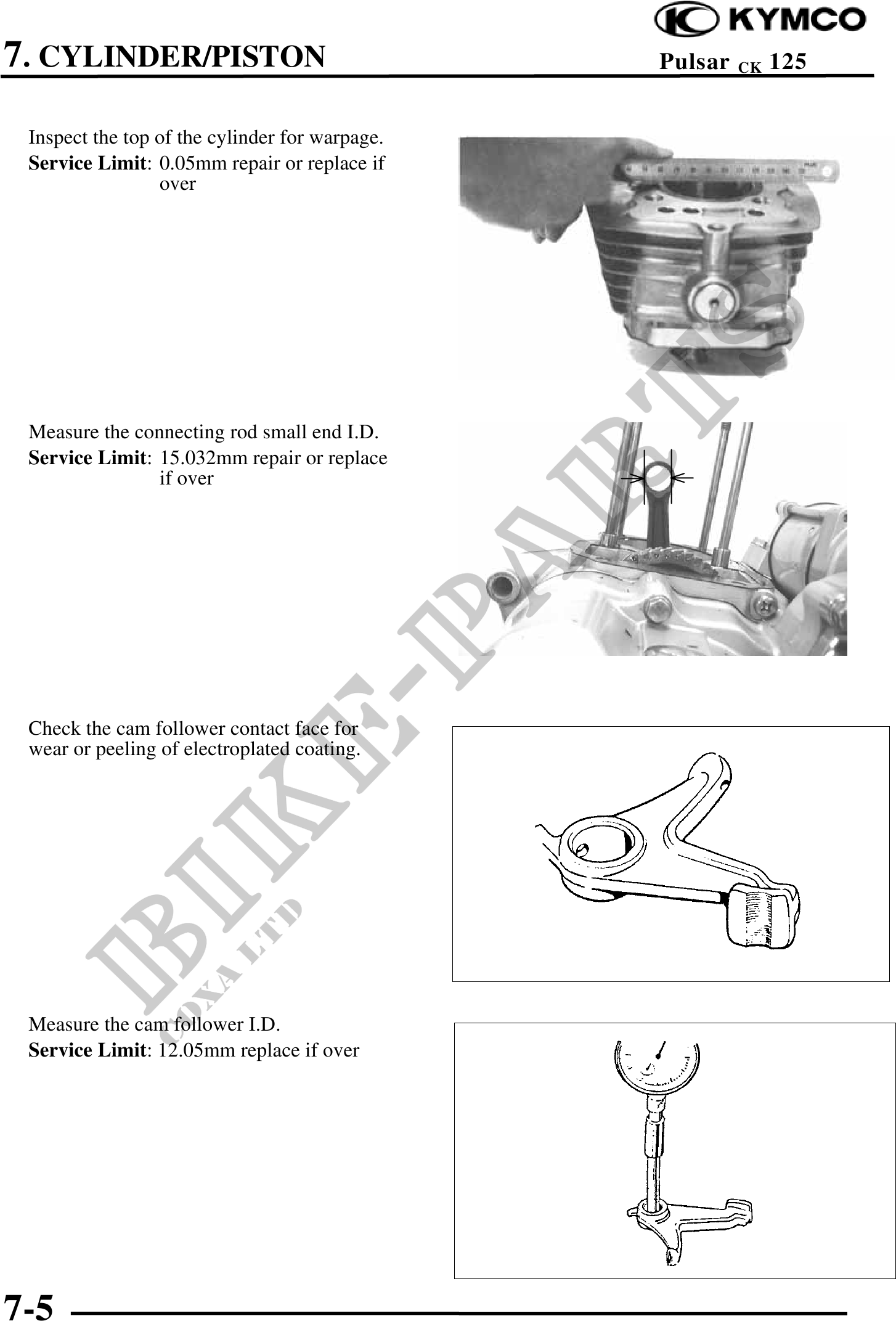

          7. CYLINDER/PISTON                              Pulsar   CK   125


 Inspect the top of the cylinder for warpage.
 Service Limit: 0.05mm repair or replace if
                 over




 Measure the connecting rod small end I.D.
 Service Limit: 15.032mm repair or replace
                if over




 Check the cam follower contact face for
 wear or peeling of electroplated coating.




 Measure the cam follower I.D.
 Service Limit: 12.05mm replace if over




7-5
