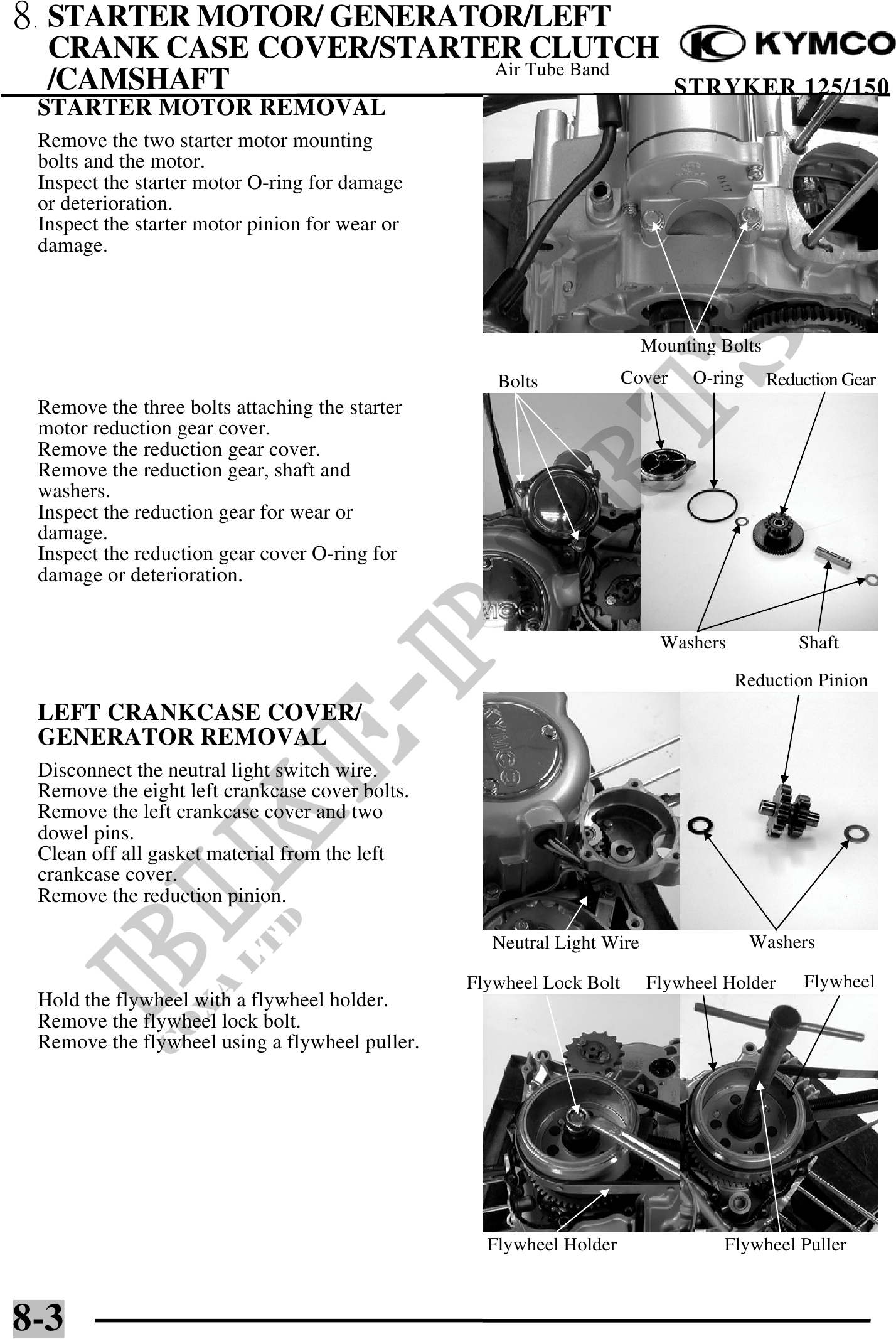

          8 STARTER MOTOR/ GENERATOR/LEFT
 .

     CRANK CASE COVER/STARTER CLUTCH
                            Air Tube Band
     /CAMSHAFT                                                               STRYKER 125/150
 STARTER MOTOR REMOVAL
 Remove the two starter motor mounting
 bolts and the motor.
 Inspect the starter motor O-ring for damage
 or deterioration.
 Inspect the starter motor pinion for wear or
 damage.



                                                                        Mounting Bolts
                                                   Bolts             Cover    O-ring     Reduction Gear
 Remove the three bolts attaching the starter
 motor reduction gear cover.
 Remove the reduction gear cover.
 Remove the reduction gear, shaft and
 washers.
 Inspect the reduction gear for wear or
 damage.
 Inspect the reduction gear cover O-ring for
 damage or deterioration.


                                                                          Washers            Shaft
                                                                                    Reduction Pinion
 LEFT CRANKCASE COVER/
 GENERATOR REMOVAL
 Disconnect the neutral light switch wire.
 Remove the eight left crankcase cover bolts.
 Remove the left crankcase cover and two
 dowel pins.
 Clean off all gasket material from the left
 crankcase cover.
 Remove the reduction pinion.

                                                   Neutral Light Wire                  Washers

                                                Flywheel Lock Bolt      Flywheel Holder      Flywheel
 Hold the flywheel with a flywheel holder.
 Remove the flywheel lock bolt.
 Remove the flywheel using a flywheel puller.




                                                  Flywheel Holder                Flywheel Puller



8-3
