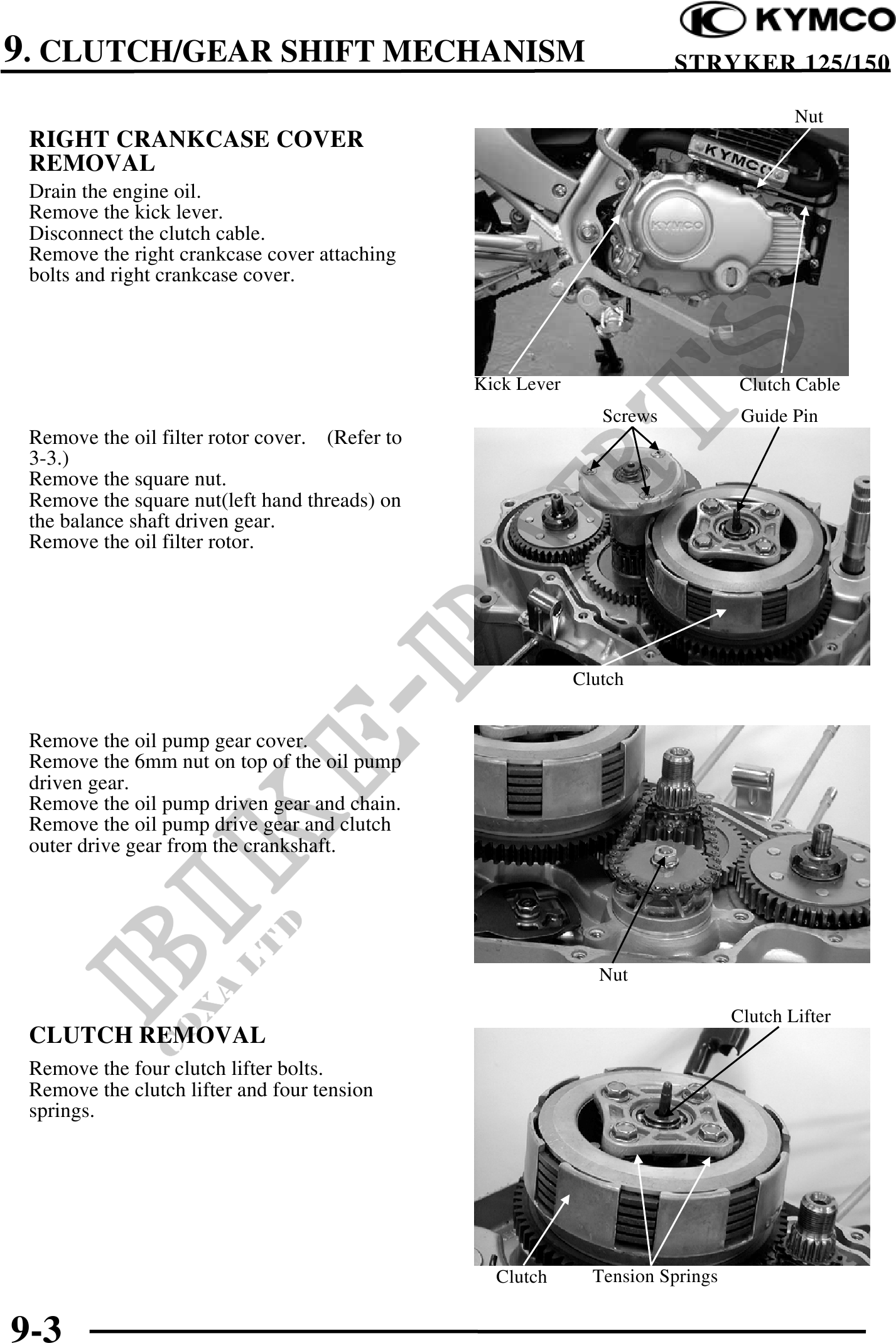

          9. CLUTCH/GEAR SHIFT MECHANISM                                           STRYKER 125/150

                                                                                         Nut
 RIGHT CRANKCASE COVER
 REMOVAL
 Drain the engine oil.
 Remove the kick lever.
 Disconnect the clutch cable.
 Remove the right crankcase cover attaching
 bolts and right crankcase cover.




                                                Kick Lever                        Clutch Cable
                                                                Screws            Guide Pin
 Remove the oil filter rotor cover. (Refer to
 3-3.)
 Remove the square nut.
 Remove the square nut(left hand threads) on
 the balance shaft driven gear.
 Remove the oil filter rotor.




                                                             Clutch


 Remove the oil pump gear cover.
 Remove the 6mm nut on top of the oil pump
 driven gear.
 Remove the oil pump driven gear and chain.
 Remove the oil pump drive gear and clutch
 outer drive gear from the crankshaft.




                                                                Nut

                                                                                 Clutch Lifter
 CLUTCH REMOVAL
 Remove the four clutch lifter bolts.
 Remove the clutch lifter and four tension
 springs.




                                                  Clutch       Tension Springs


9-3
