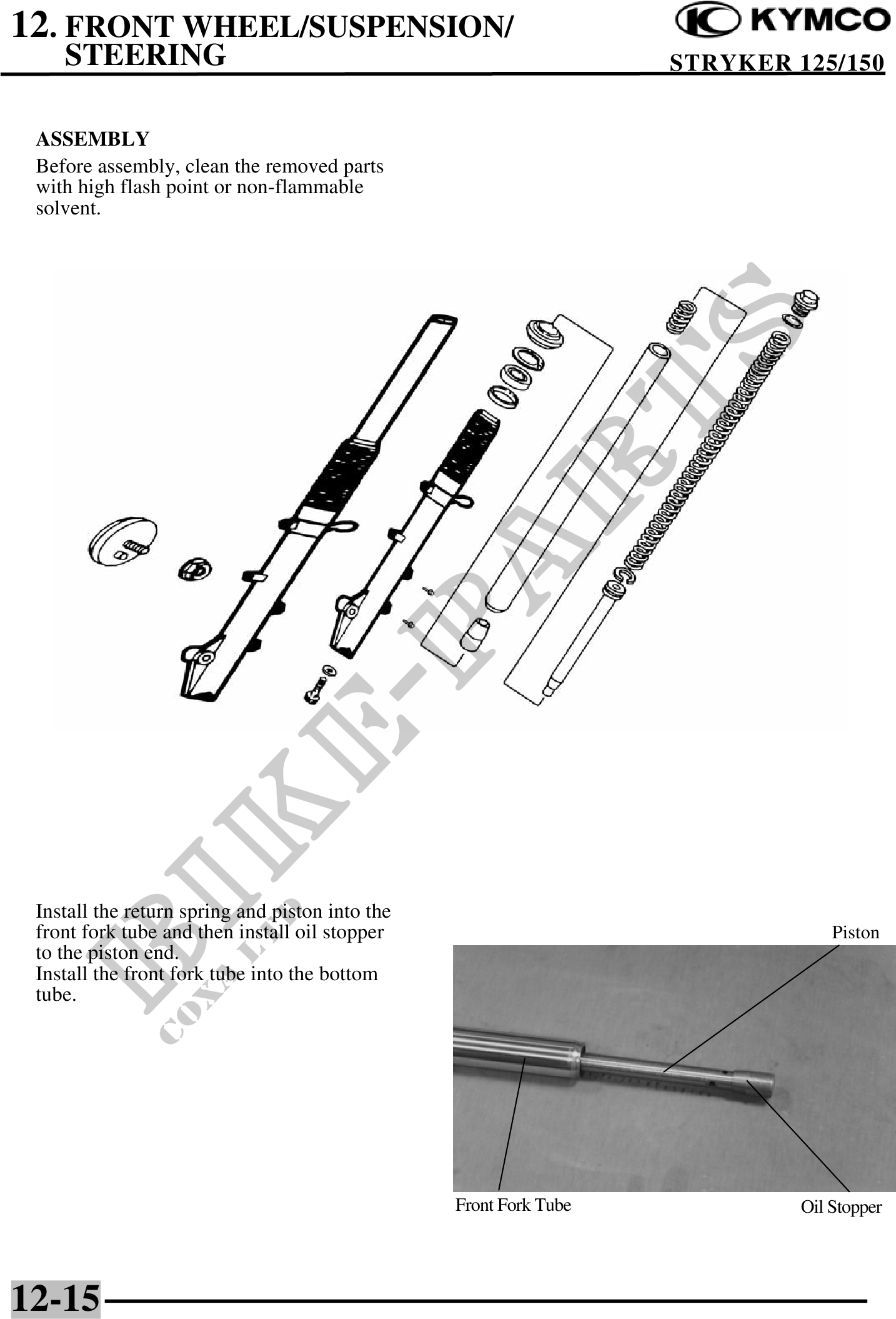

          12. FRONT WHEEL/SUSPENSION/
    STEERING                                                       STRYKER 125/150


 ASSEMBLY
 Before assembly, clean the removed parts
 with high flash point or non-flammable
 solvent.




 Install the return spring and piston into the
 front fork tube and then install oil stopper                                   Piston
 to the piston end.
 Install the front fork tube into the bottom
 tube.




                                                 Front Fork Tube            Oil Stopper




12-15
