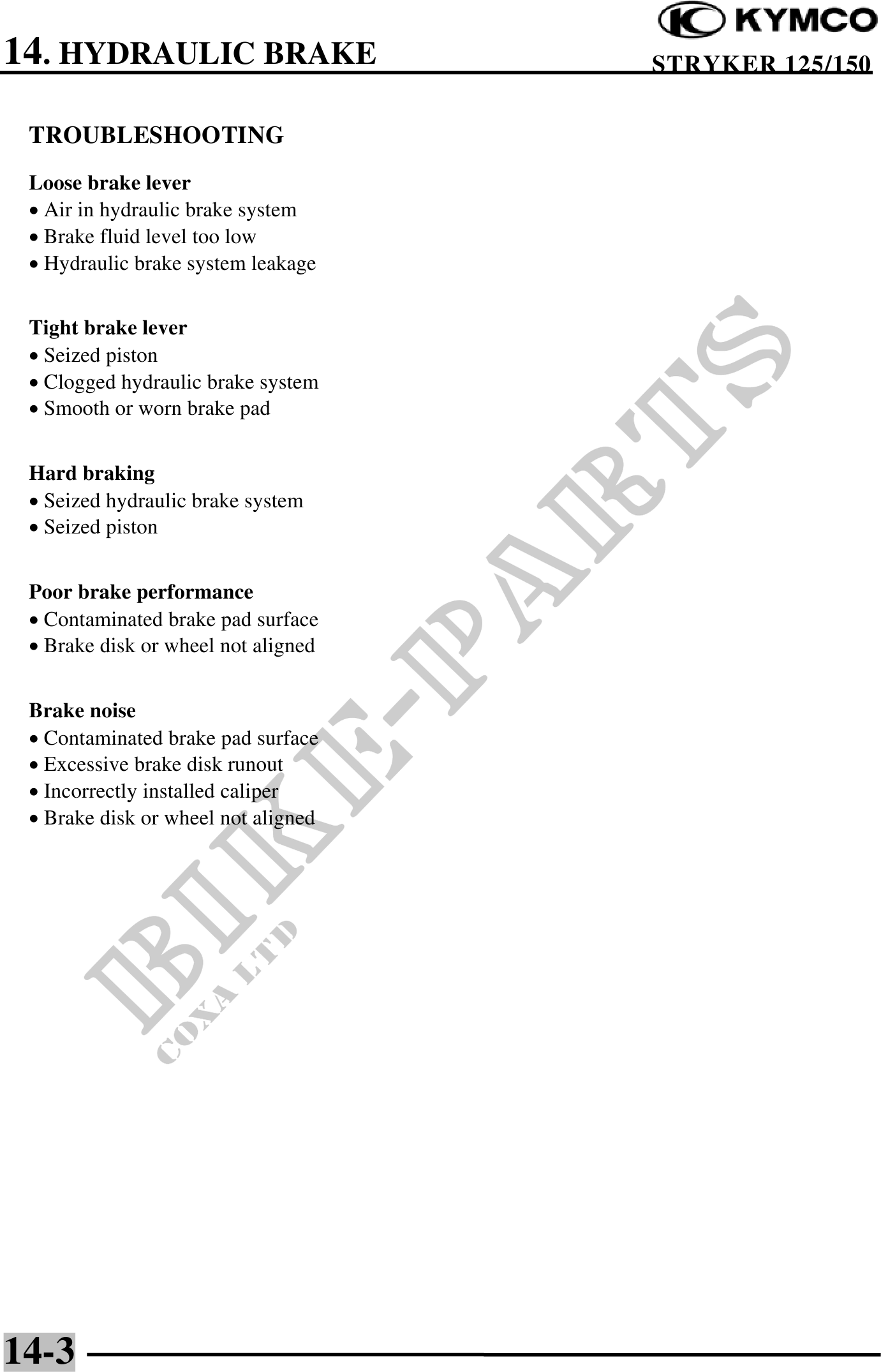

          14. HYDRAULIC BRAKE                  STRYKER 125/150

 TROUBLESHOOTING
 Loose brake lever
 · Air in hydraulic brake system
 · Brake fluid level too low
 · Hydraulic brake system leakage


 Tight brake lever
 · Seized piston
 · Clogged hydraulic brake system
 · Smooth or worn brake pad


 Hard braking
 · Seized hydraulic brake system
 · Seized piston


 Poor brake performance
 · Contaminated brake pad surface
 · Brake disk or wheel not aligned


 Brake noise
 · Contaminated brake pad surface
 · Excessive brake disk runout
 · Incorrectly installed caliper
 · Brake disk or wheel not aligned




14-3
