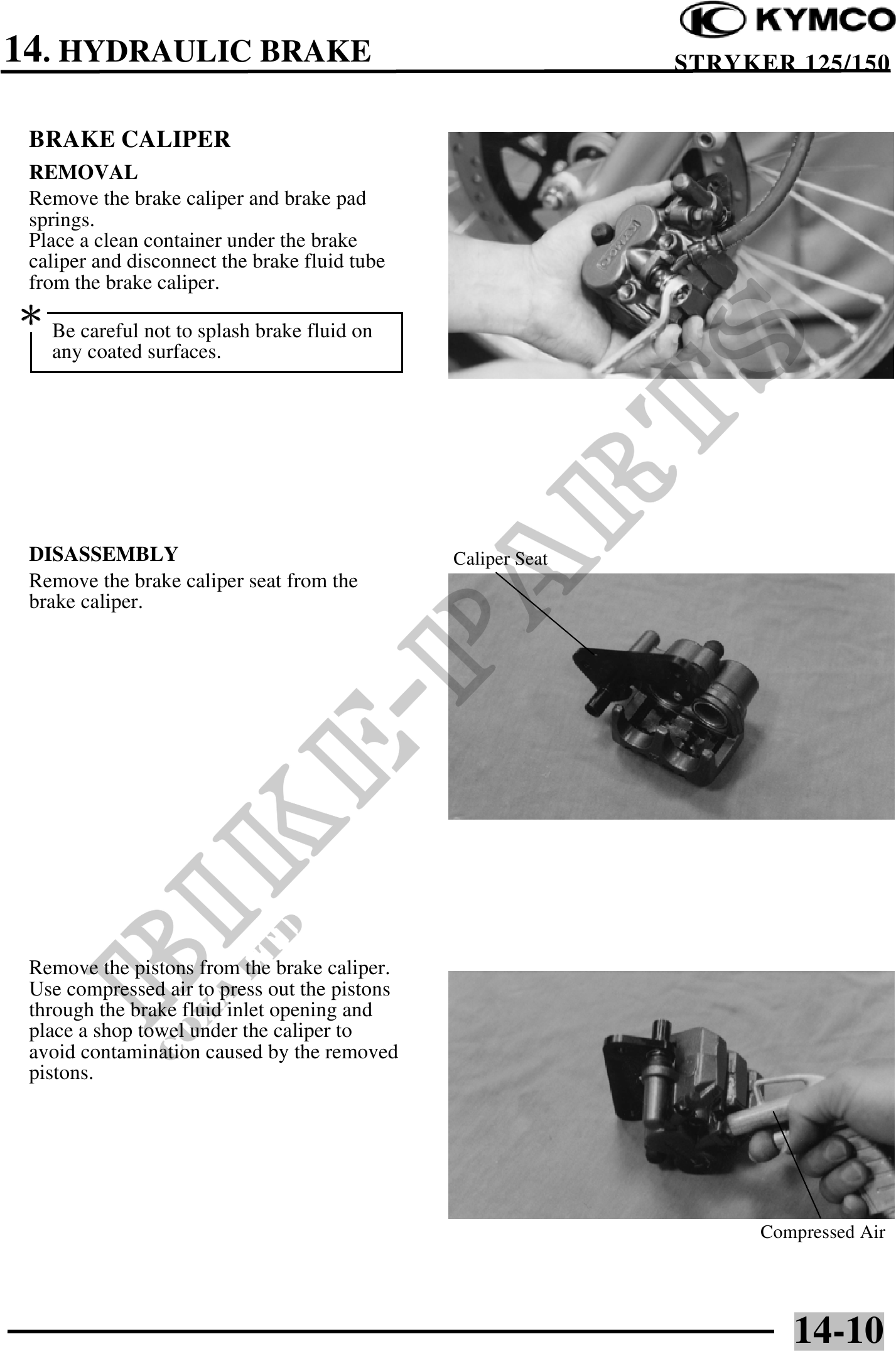

          14. HYDRAULIC BRAKE                                           STRYKER 125/150


 BRAKE CALIPER
 REMOVAL
 Remove the brake caliper and brake pad
 springs.
 Place a clean container under the brake
 caliper and disconnect the brake fluid tube
 from the brake caliper.
 Be careful not to splash brake fluid on
    any coated surfaces.




 DISASSEMBLY                                   Caliper Seat
 Remove the brake caliper seat from the
 brake caliper.




 Remove the pistons from the brake caliper.
 Use compressed air to press out the pistons
 through the brake fluid inlet opening and
 place a shop towel under the caliper to
 avoid contamination caused by the removed
 pistons.




                                                                   Compressed Air




                                                                      14-10
