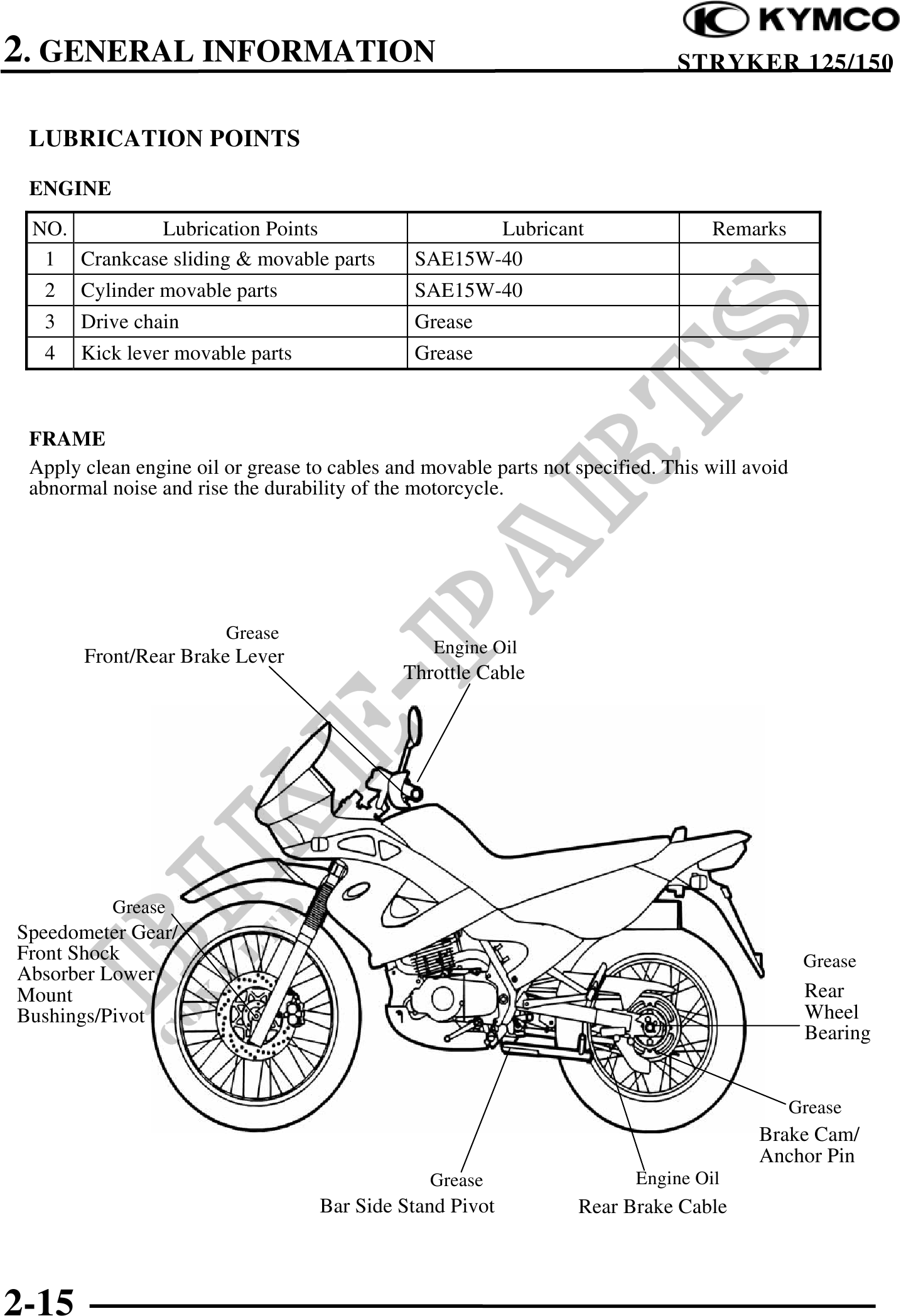

stryker 125 Workshop-manual : Page 20

          2. GENERAL INFORMATION                                                        STRYKER 125/150


 LUBRICATION POINTS

 ENGINE
 NO.            Lubrication Points                    Lubricant                   Remarks
  1    Crankcase sliding & movable parts       SAE15W-40
  2    Cylinder movable parts                  SAE15W-40
  3    Drive chain                             Grease
  4    Kick lever movable parts                Grease



 FRAME
 Apply clean engine oil or grease to cables and movable parts not specified. This will avoid
 abnormal noise and rise the durability of the motorcycle.




                        Grease
                                                 Engine Oil
       Front/Rear Brake Lever
                                             Throttle Cable




           Grease
Speedometer Gear/
Front Shock                                                                                     Grease
Absorber Lower
Mount                                                                                           Rear
Bushings/Pivot                                                                                  Wheel
                                                                                                Bearing


                                                                                               Grease
                                                                                        Brake Cam/
                                                                                        Anchor Pin
                                                 Grease                  Engine Oil
                                   Bar Side Stand Pivot           Rear Brake Cable



2-15
