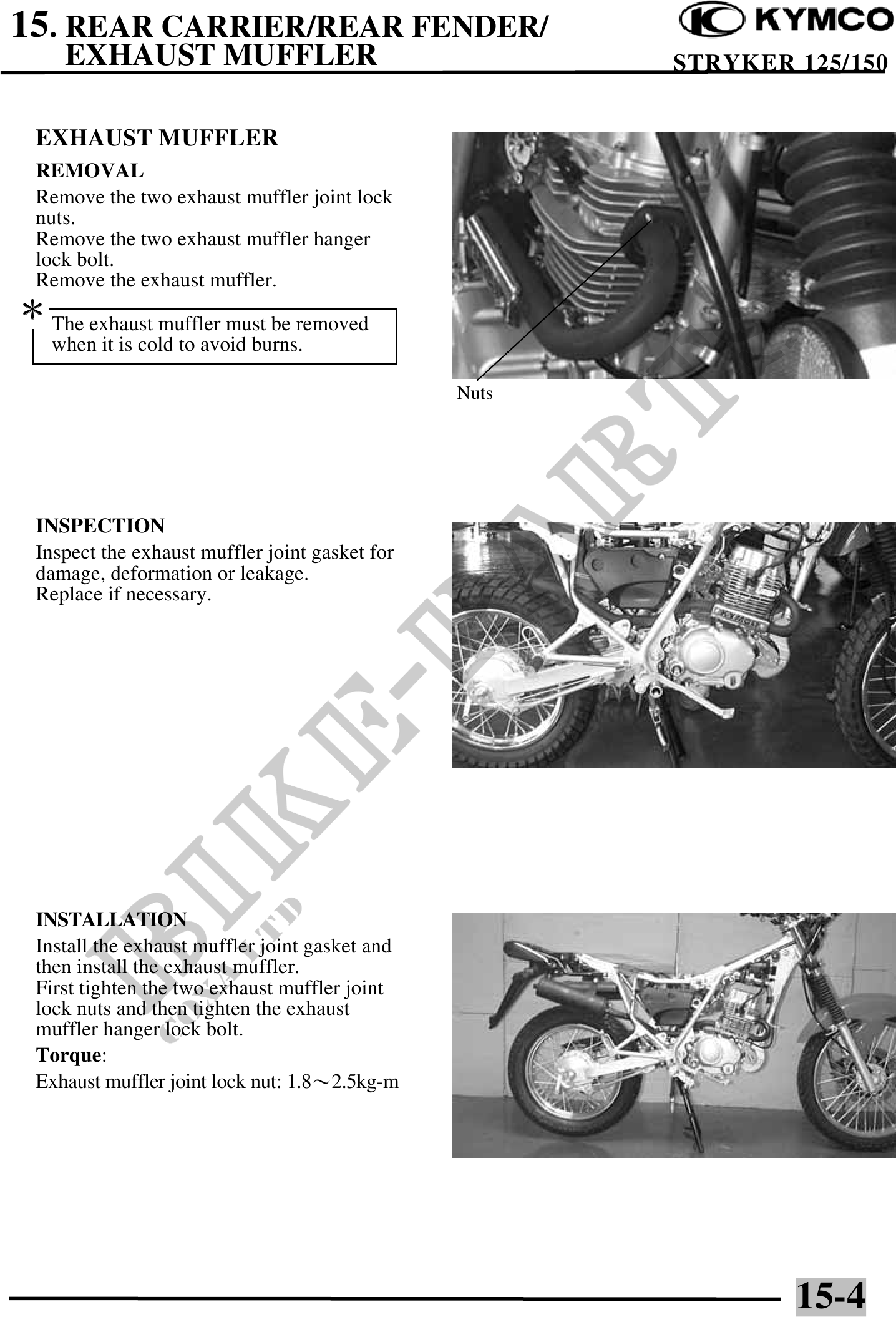

15. REAR CARRIER/REAR FENDER/
EXHAUST MUFFLER STRYKER 125/150
EXHAUST MUFFLER
REMOVAL
Remove the two exhaust muffler joint lock
nuts.
Remove the two exhaust muffler hanger
lock bolt.
Remove the exhaust muffler.
The exhaust muffler must be removed
when it is cold to avoid burns.
Nuts
INSPECTION
Inspect the exhaust muffler joint gasket for
damage, deformation or leakage.
Replace if necessary.
INSTALLATION
Install the exhaust muffler joint gasket and
then install the exhaust muffler.
First tighten the two exhaust muffler joint
lock nuts and then tighten the exhaust
muffler hanger lock bolt.
Torque:
Exhaust muffler joint lock nut: 1.82.5kg-m
15-4
