                     STRYKER 125/150




                                                                               2-16
2. GENERAL INFORMATION

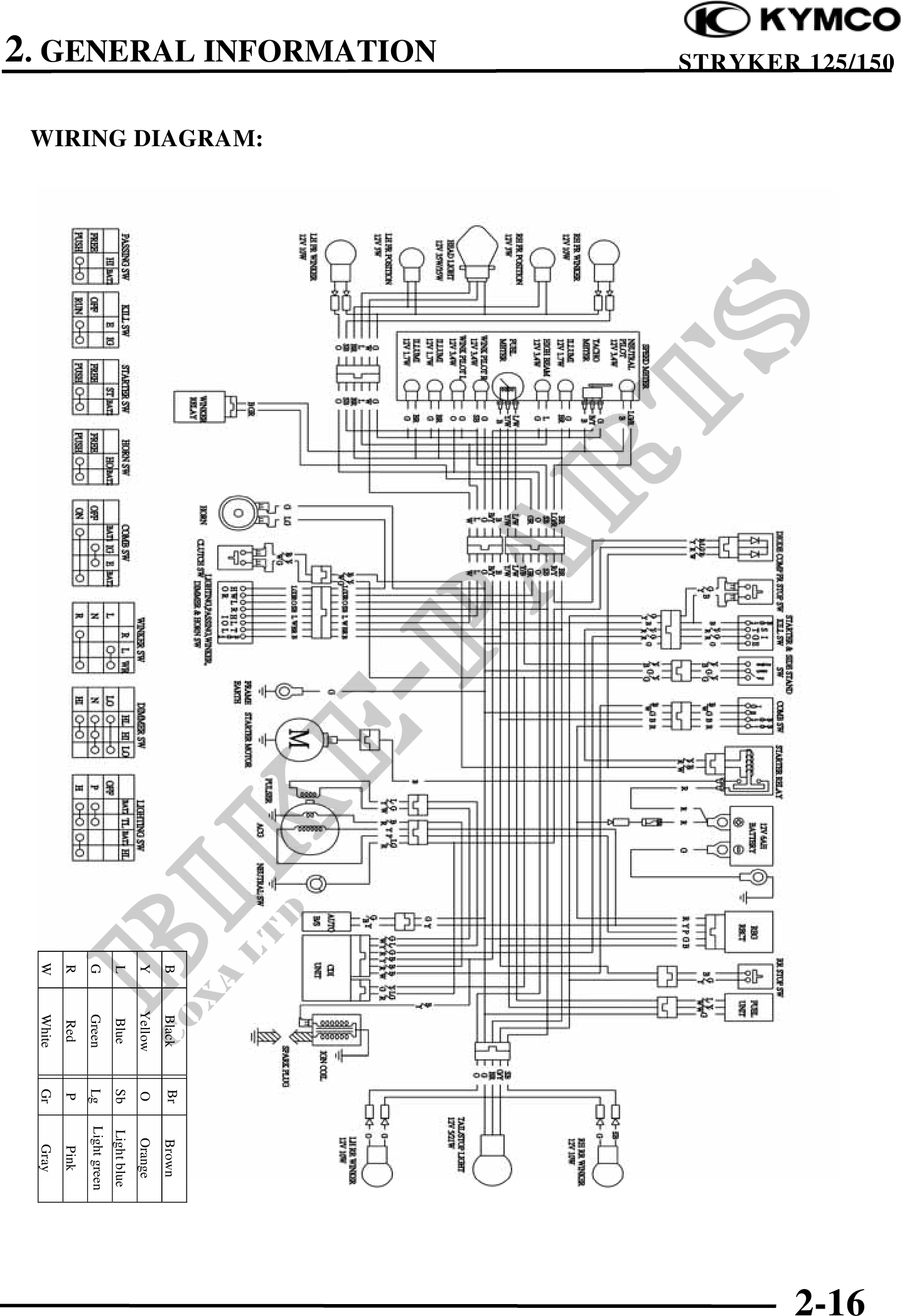

                             WIRING DIAGRAM:
                                               B   Black    Br     Brown
                                               Y   Yellow   O      Orange
                                               L    Blue    Sb   Light blue
                                               G   Green    Lg   Light green
                                               R    Red     P       Pink
                                               W   White    Gr      Gray
