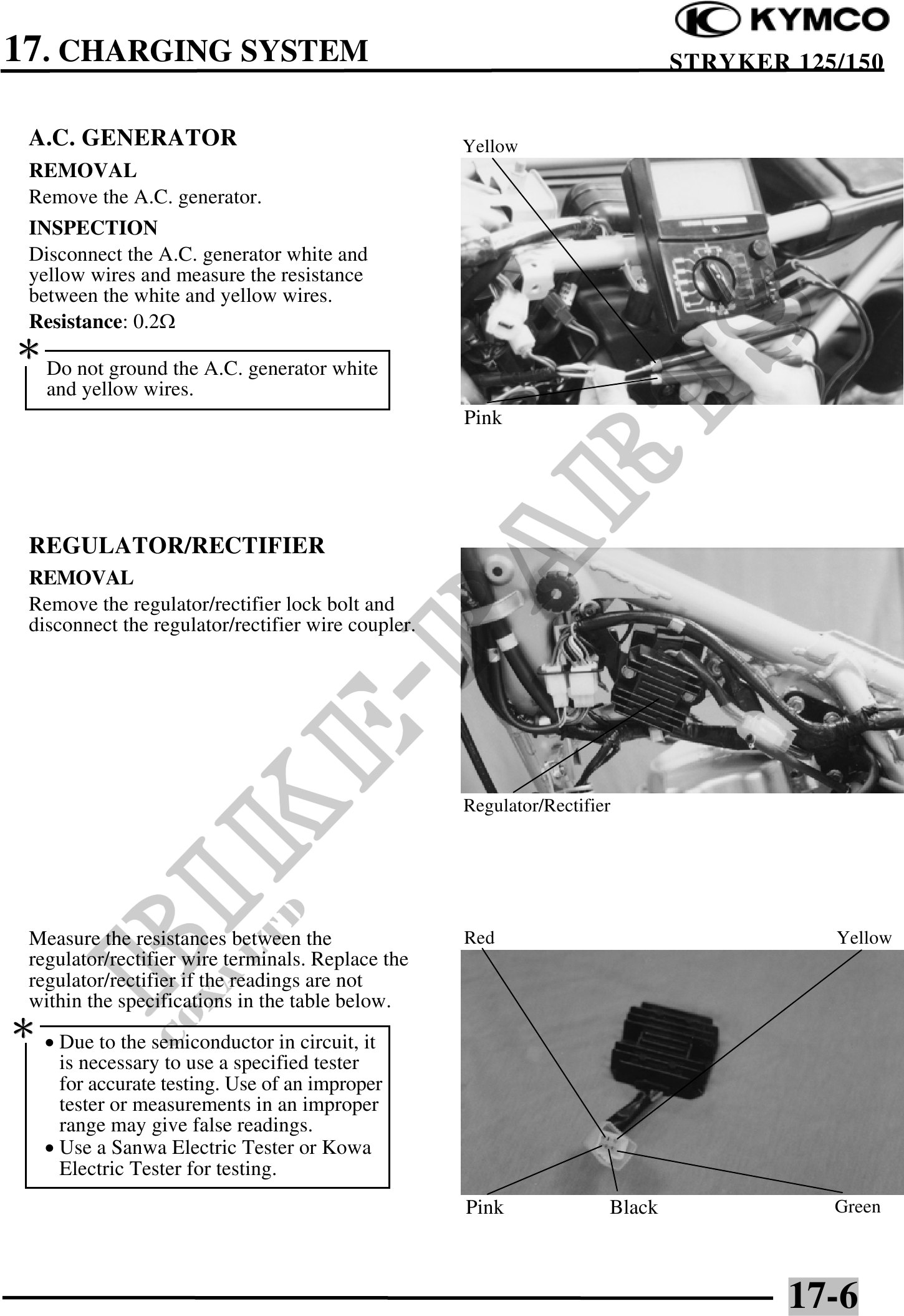

          17. CHARGING SYSTEM                                                            STRYKER 125/150


  A.C. GENERATOR                                     Yellow
  REMOVAL
  Remove the A.C. generator.
  INSPECTION
  Disconnect the A.C. generator white and
  yellow wires and measure the resistance
  between the white and yellow wires.
  Resistance: 0.2

    Do not ground the A.C. generator white
    and yellow wires.
                                                     Pink




  REGULATOR/RECTIFIER
  REMOVAL
  Remove the regulator/rectifier lock bolt and
  disconnect the regulator/rectifier wire coupler.




                                                     Regulator/Rectifier




  Measure the resistances between the                Red                                  Yellow
  regulator/rectifier wire terminals. Replace the
  regulator/rectifier if the readings are not
  within the specifications in the table below.
 · Due to the semiconductor in circuit, it
      is necessary to use a specified tester
      for accurate testing. Use of an improper
      tester or measurements in an improper
      range may give false readings.
    · Use a Sanwa Electric Tester or Kowa
      Electric Tester for testing.
                                                     Pink              Black              Green




                                                                                       17-6
