          3. INSPECTION/ADJUSTMENT                                                                       STRYKER 125/150

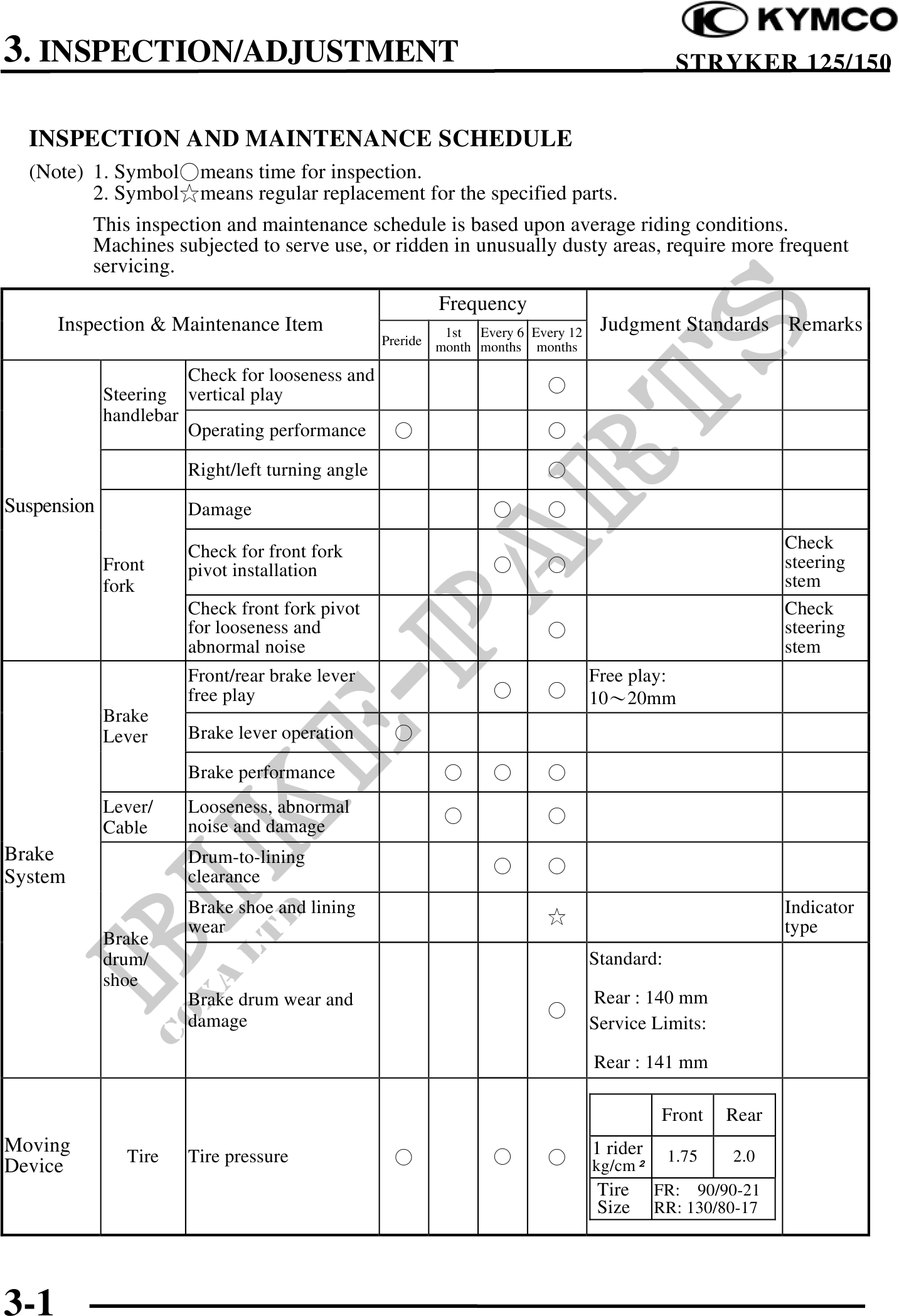

  INSPECTION AND MAINTENANCE SCHEDULE
  (Note) 1. Symbolmeans time for inspection.
         2. Symbolmeans regular replacement for the specified parts.
         This inspection and maintenance schedule is based upon average riding conditions.
         Machines subjected to serve use, or ridden in unusually dusty areas, require more frequent
         servicing.
                                                          Frequency
      Inspection & Maintenance Item                        1st Every 6 Every 12    Judgment Standards Remarks
                                                  Preride month months months

                       Check for looseness and
             Steering vertical play
             handlebar
                       Operating performance

                       Right/left turning angle
Suspension             Damage

                       Check for front fork                                                                 Check
             Front     pivot installation                                                                   steering
             fork                                                                                           stem
                       Check front fork pivot                                                               Check
                       for looseness and                                                                    steering
                       abnormal noise                                                                       stem
                       Front/rear brake lever                                     Free play:
                       free play                                                  1020mm
             Brake
             Lever     Brake lever operation

                       Brake performance
             Lever/    Looseness, abnormal
             Cable     noise and damage
Brake                  Drum-to-lining
System                 clearance
                       Brake shoe and lining                                                                Indicator
                       wear                                                                                 type
             Brake
             drum/                                                                Standard:
             shoe
                       Brake drum wear and                                        Rear : 140 mm

                       damage                                                     Service Limits:

                                                                                  Rear : 141 mm

                                                                                            Front    Rear
Moving                                                                            1 rider
               Tire    Tire pressure                                                          1.75   2.0
Device                                                                            kg/cm
                                                                                   Tire     FR: 90/90-21
                                                                                   Size     RR: 130/80-17




3-1
