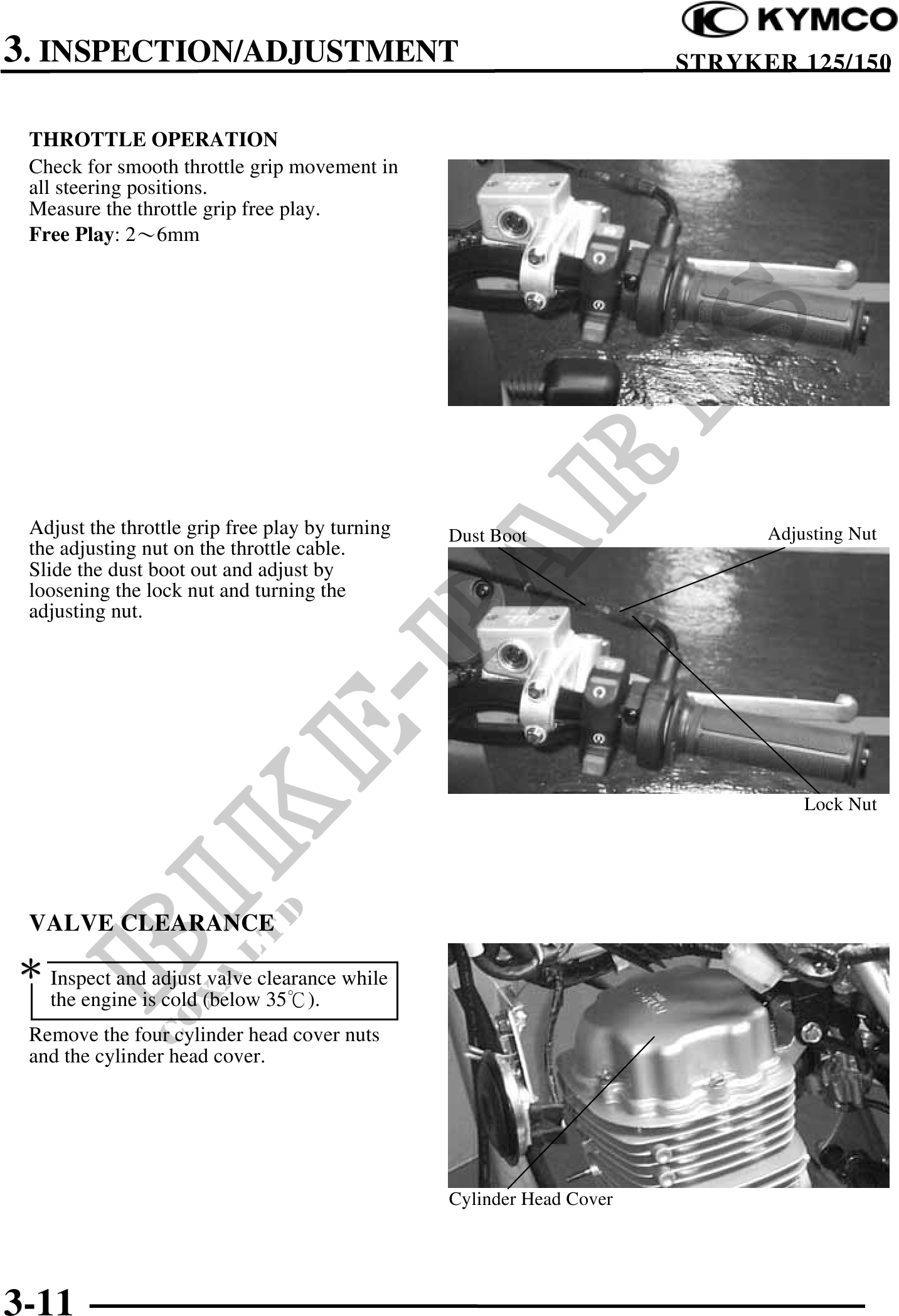

          3. INSPECTION/ADJUSTMENT                                               STRYKER 125/150


 THROTTLE OPERATION
 Check for smooth throttle grip movement in
 all steering positions.
 Measure the throttle grip free play.
 Free Play: 26mm




 Adjust the throttle grip free play by turning   Dust Boot                   Adjusting Nut
 the adjusting nut on the throttle cable.
 Slide the dust boot out and adjust by
 loosening the lock nut and turning the
 adjusting nut.




                                                                                 Lock Nut




 VALVE CLEARANCE
 Inspect and adjust valve clearance while
   the engine is cold (below 35).
 Remove the four cylinder head cover nuts
 and the cylinder head cover.




                                                 Cylinder Head Cover




3-11
