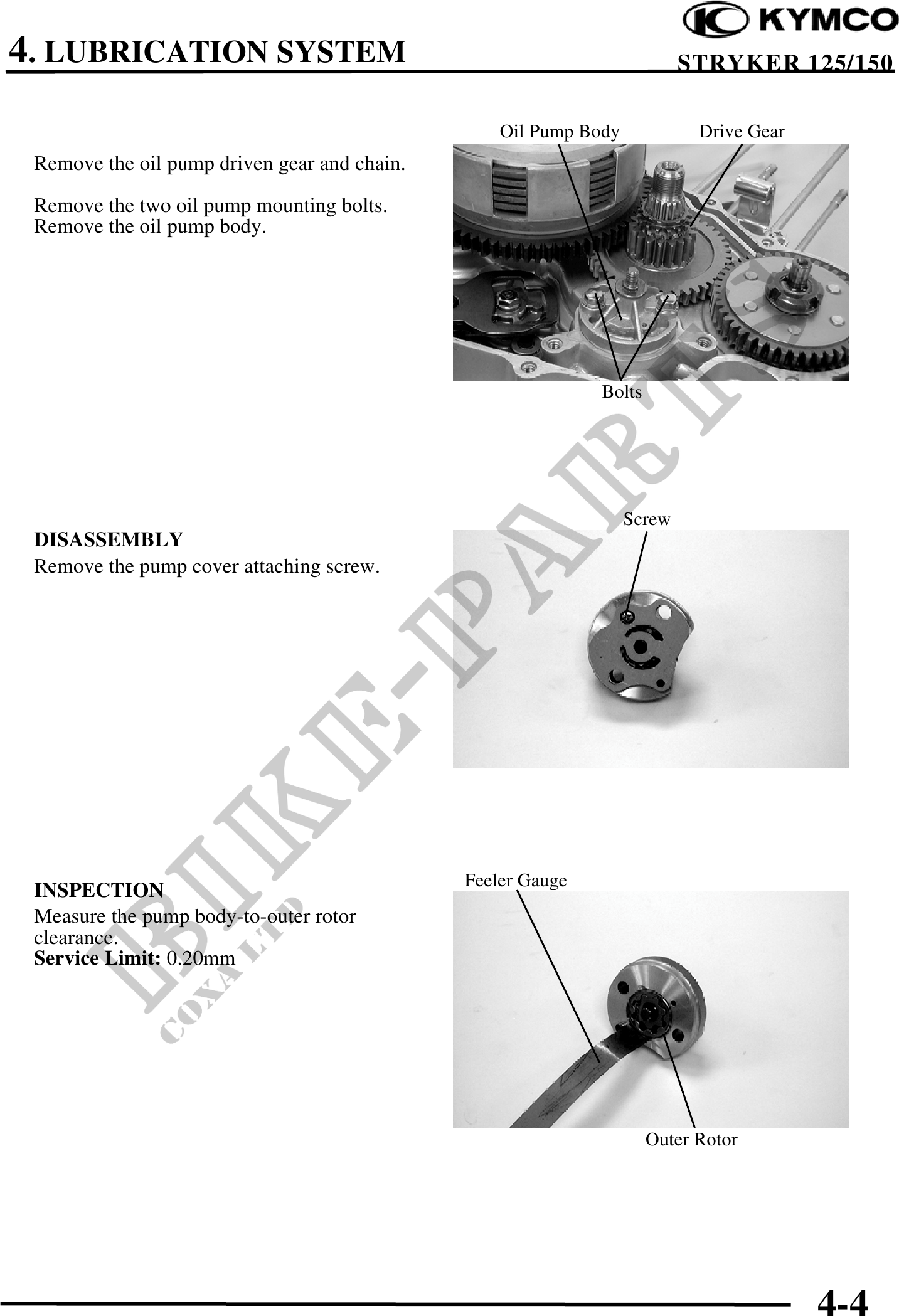

          4. LUBRICATION SYSTEM                                                     STRYKER 125/150

                                                  Oil Pump Body            Drive Gear
 Remove the oil pump driven gear and chain.

 Remove the two oil pump mounting bolts.
 Remove the oil pump body.




                                                             Bolts




                                                                  Screw
 DISASSEMBLY
 Remove the pump cover attaching screw.




                                              Feeler Gauge
 INSPECTION
 Measure the pump body-to-outer rotor
 clearance.
 Service Limit: 0.20mm




                                                                     Outer Rotor




                                                                                        4-4
