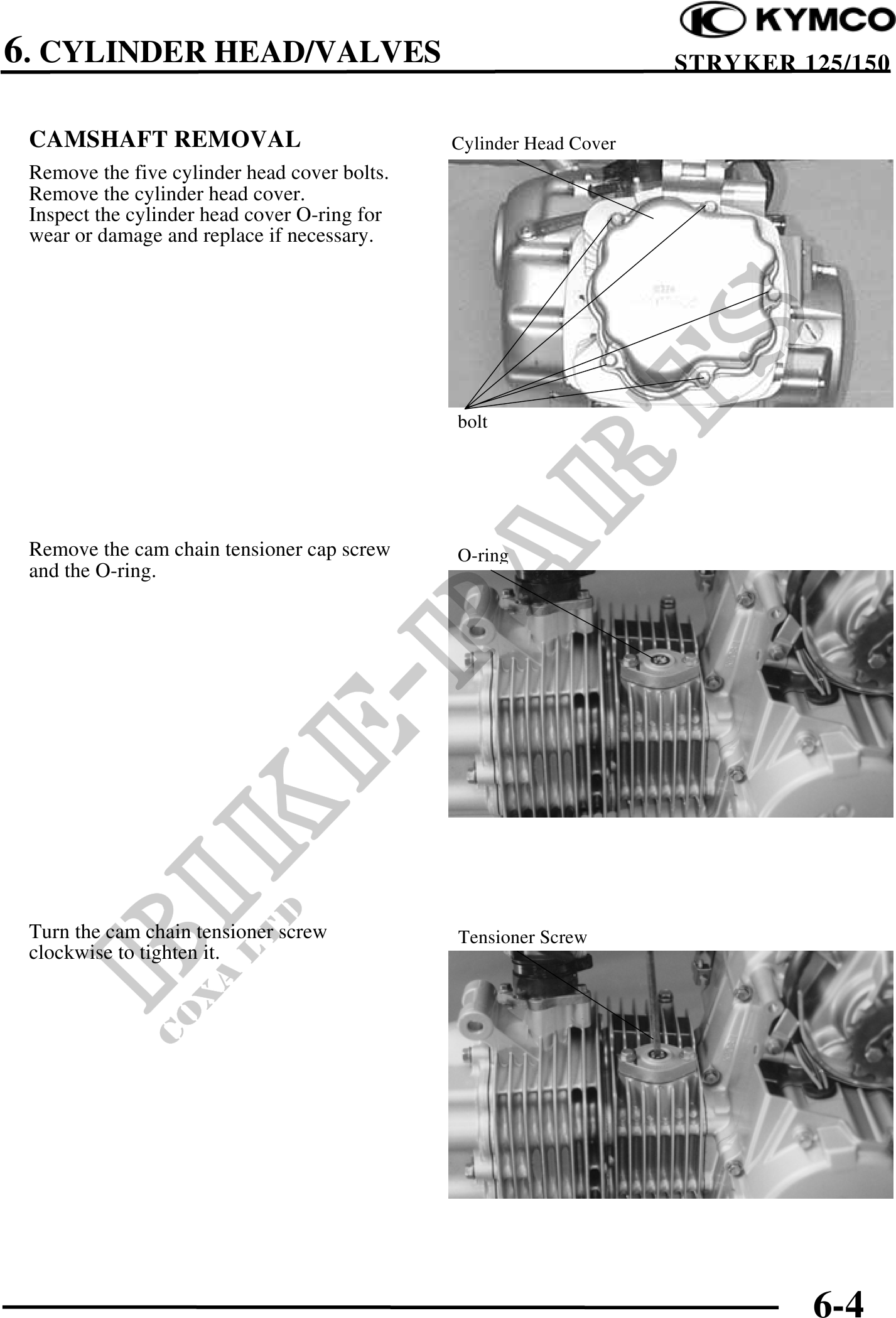

          6. CYLINDER HEAD/VALVES                                             STRYKER 125/150


 CAMSHAFT REMOVAL                             Cylinder Head Cover
 Remove the five cylinder head cover bolts.
 Remove the cylinder head cover.
 Inspect the cylinder head cover O-ring for
 wear or damage and replace if necessary.




                                              bolt




 Remove the cam chain tensioner cap screw     O-ring
 and the O-ring.




 Turn the cam chain tensioner screw           Tensioner Screw
 clockwise to tighten it.




                                                                             6-4
