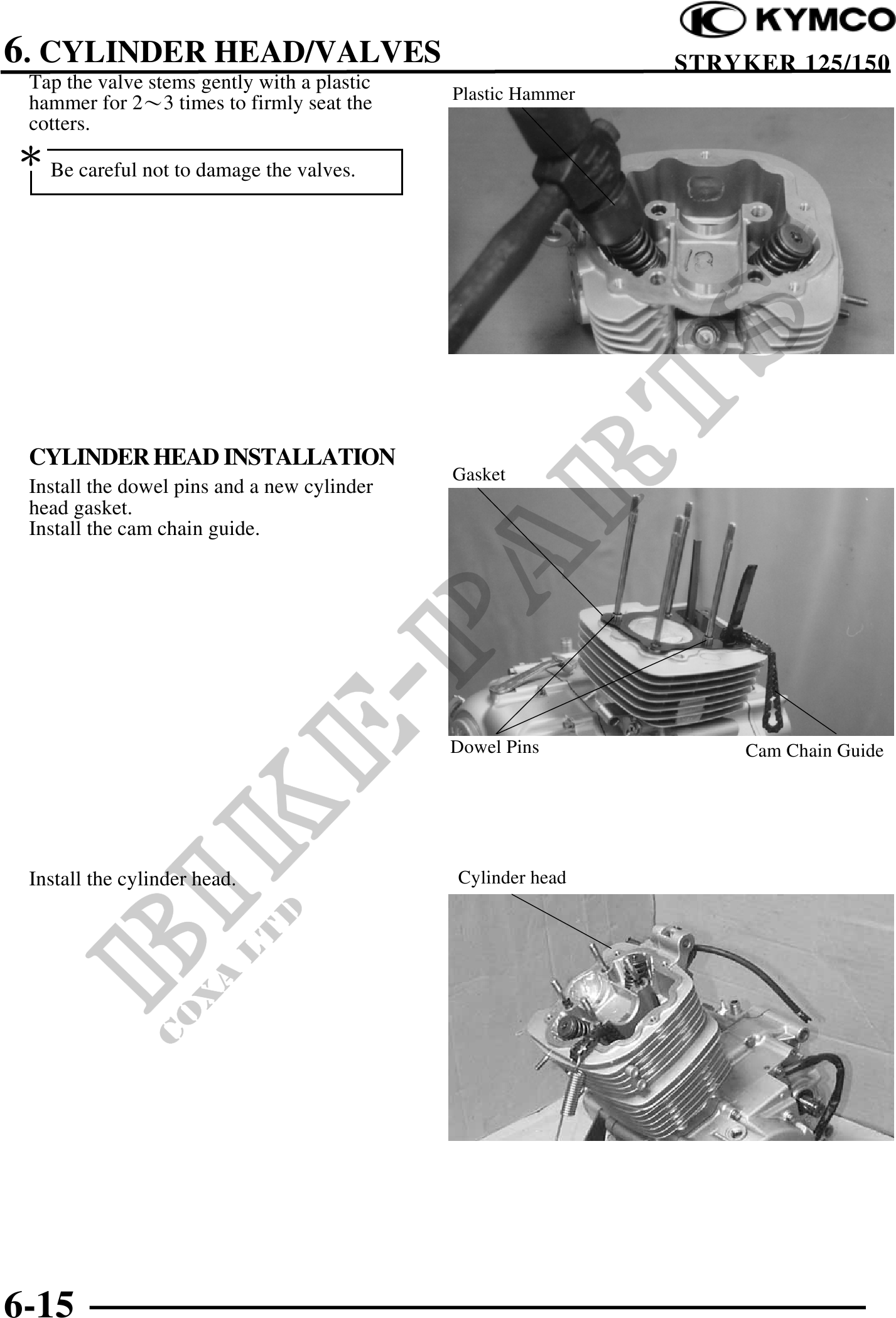

          6. CYLINDER HEAD/VALVES                                       STRYKER 125/150
 Tap the valve stems gently with a plastic
 hammer for 23 times to firmly seat the      Plastic Hammer
 cotters.
 Be careful not to damage the valves.




 CYLINDER HEAD INSTALLATION
                                             Gasket
 Install the dowel pins and a new cylinder
 head gasket.
 Install the cam chain guide.




                                             Dowel Pins           Cam Chain Guide




 Install the cylinder head.                  Cylinder head




6-15
