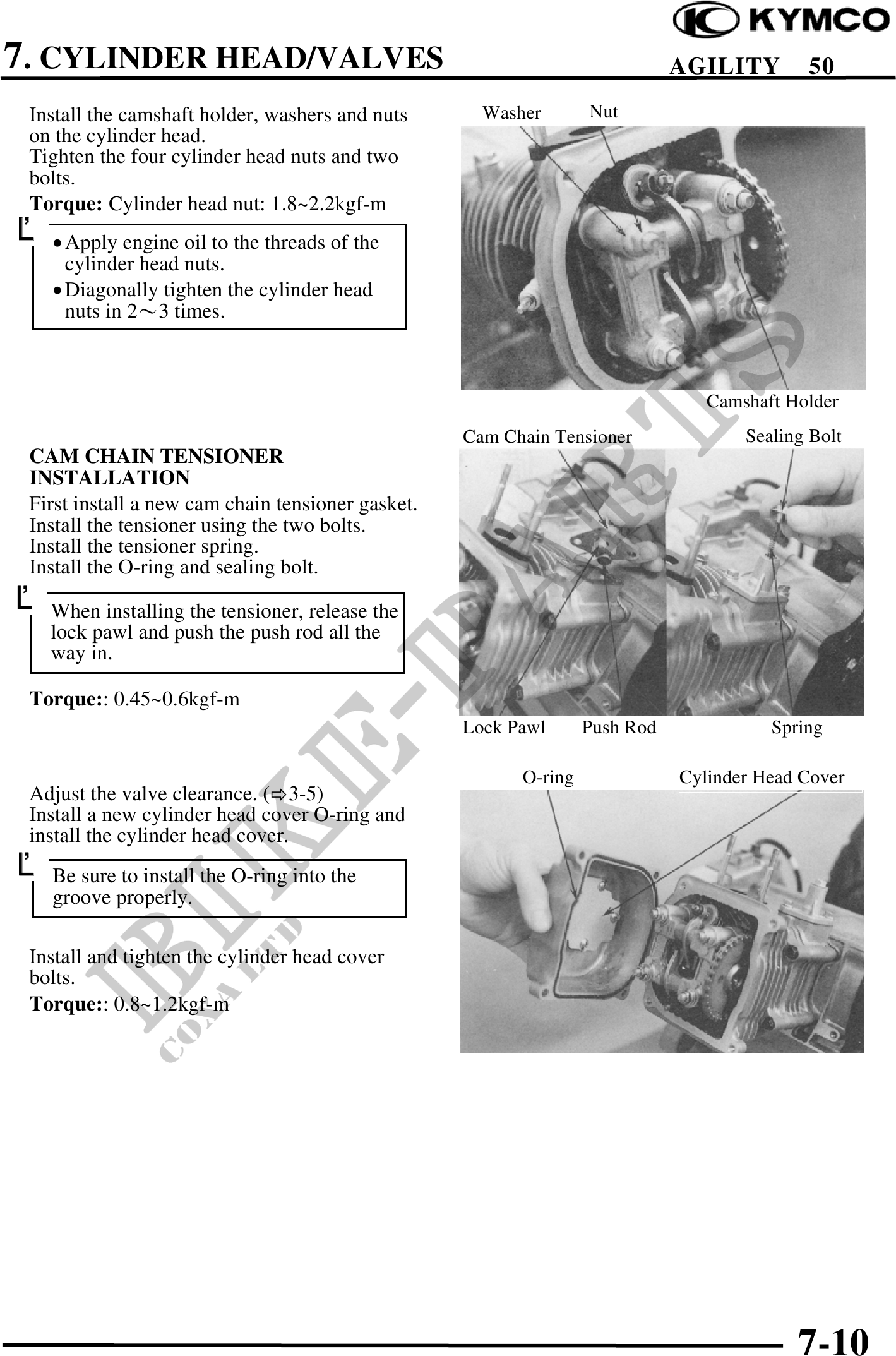

          7. CYLINDER HEAD/VALVES                                                      AGILITY       50
 Install the camshaft holder, washers and nuts       Washer       Nut
 on the cylinder head.
 Tighten the four cylinder head nuts and two
 bolts.
 Torque: Cylinder head nut: 1.8~2.2kgf-m
 · Apply engine oil to the threads of the
      cylinder head nuts.
    · Diagonally tighten the cylinder head
      nuts in 23 times.



                                                                                Camshaft Holder
                                                   Cam Chain Tensioner              Sealing Bolt
 CAM CHAIN TENSIONER
 INSTALLATION
 First install a new cam chain tensioner gasket.
 Install the tensioner using the two bolts.
 Install the tensioner spring.
 Install the O-ring and sealing bolt.
 When installing the tensioner, release the
    lock pawl and push the push rod all the
    way in.

 Torque:: 0.45~0.6kgf-m
                                                   Lock Pawl      Push Rod             Spring

                                                         O-ring              Cylinder Head Cover
 Adjust the valve clearance. ( 3-5)
 Install a new cylinder head cover O-ring and
 install the cylinder head cover.
 Be sure to install the O-ring into the
    groove properly.

 Install and tighten the cylinder head cover
 bolts.
 Torque:: 0.8~1.2kgf-m
