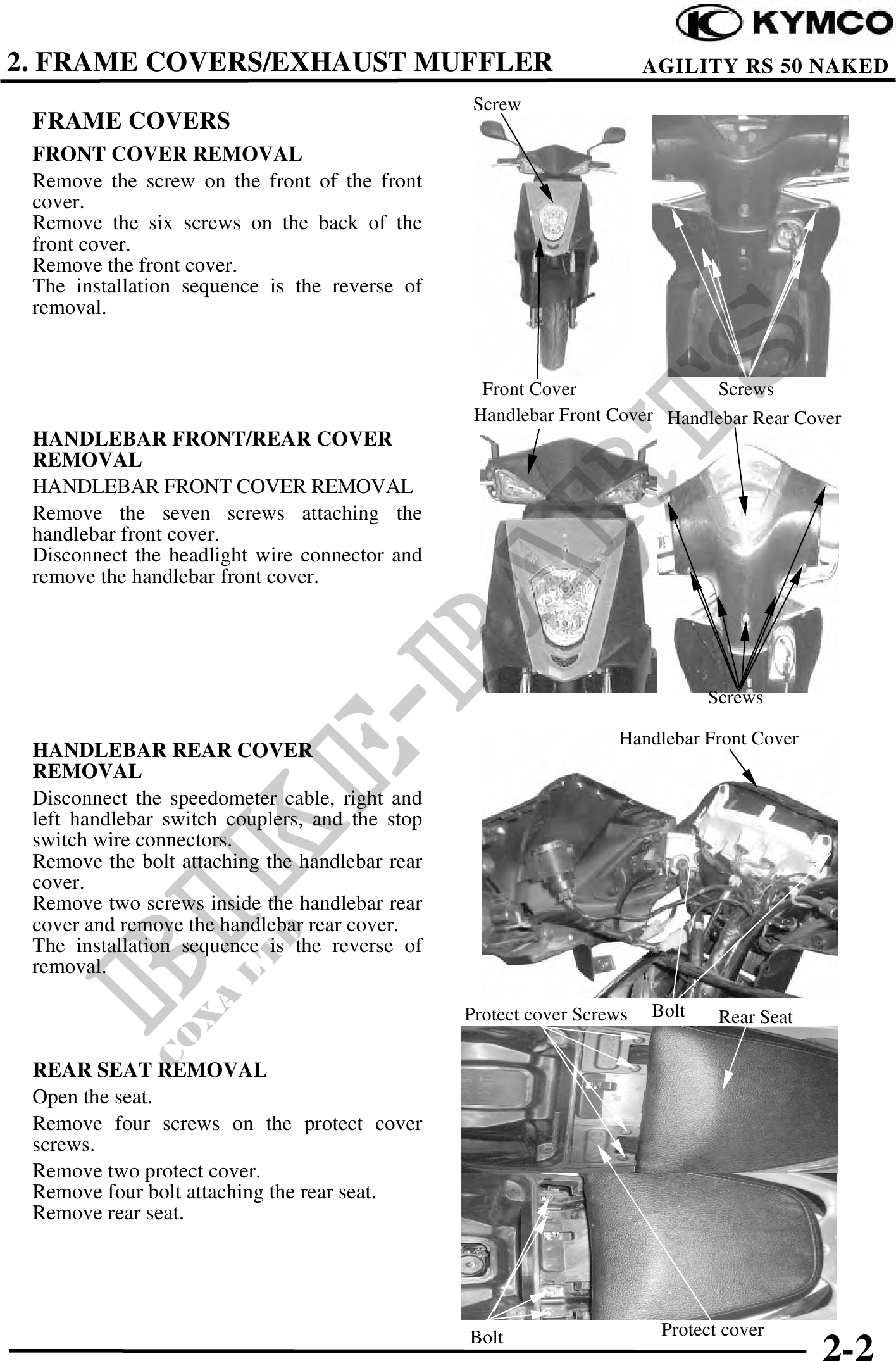

2. FRAME COVERS/EXHAUST MUFFLER AGILITY RS 50 NAKED
Screw
FRAME COVERS
FRONT COVER REMOVAL
Remove the screw on the front of the front
cover.
Remove the six screws on the back of the
front cover.
Remove the front cover.
The installation sequence is the reverse of
removal.
Front Cover Screws
Handlebar Front Cover Handlebar Rear Cover
HANDLEBAR FRONT/REAR COVER
REMOVAL
HANDLEBAR FRONT COVER REMOVAL
Remove the seven screws attaching the
handlebar front cover.
Disconnect the headlight wire connector and
remove the handlebar front cover.
Screws
Handlebar Front Cover
HANDLEBAR REAR COVER
REMOVAL
Disconnect the speedometer cable, right and
left handlebar switch couplers, and the stop
switch wire connectors.
Remove the bolt attaching the handlebar rear
cover.
Remove two screws inside the handlebar rear
cover and remove the handlebar rear cover.
The installation sequence is the reverse of
removal.
Protect cover Screws Bolt Rear Seat
REAR SEAT REMOVAL
Open the seat.
Remove four screws on the protect cover
screws.
Remove two protect cover.
Remove four bolt attaching the rear seat.
Remove rear seat.
Bolt Protect cover
2-2
