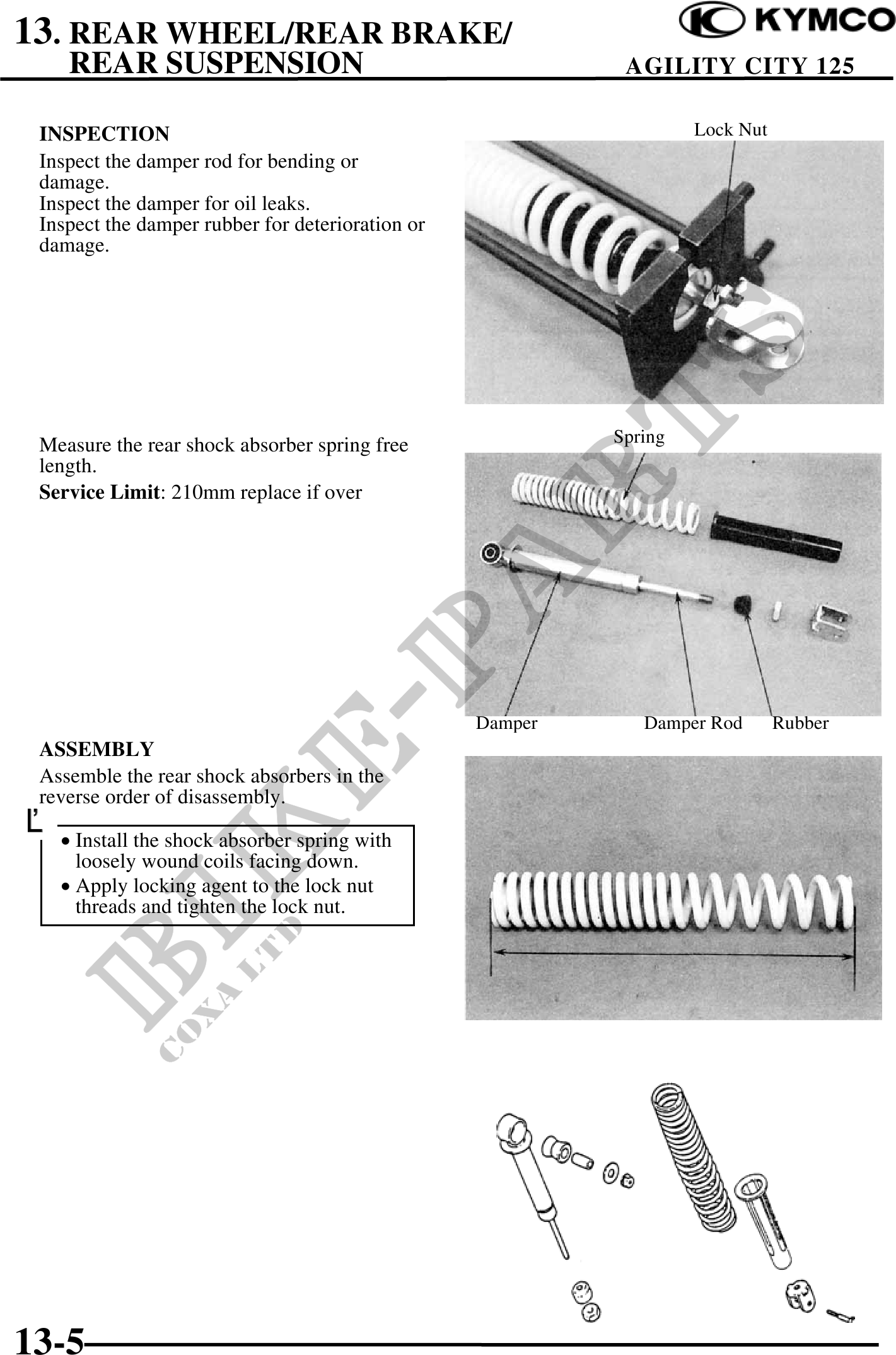

13. REAR WHEEL/REAR BRAKE/
REAR SUSPENSION AGILITY CITY 125
INSPECTION Lock Nut
Inspect the damper rod for bending or
damage.
Inspect the damper for oil leaks.
Inspect the damper rubber for deterioration or
damage.
Measure the rear shock absorber spring free Spring
length.
Service Limit: 210mm replace if over
Damper Damper Rod Rubber
ASSEMBLY
Assemble the rear shock absorbers in the
reverse order of disassembly.
· Install the shock absorber spring with
loosely wound coils facing down.
· Apply locking agent to the lock nut
threads and tighten the lock nut.
13-5
