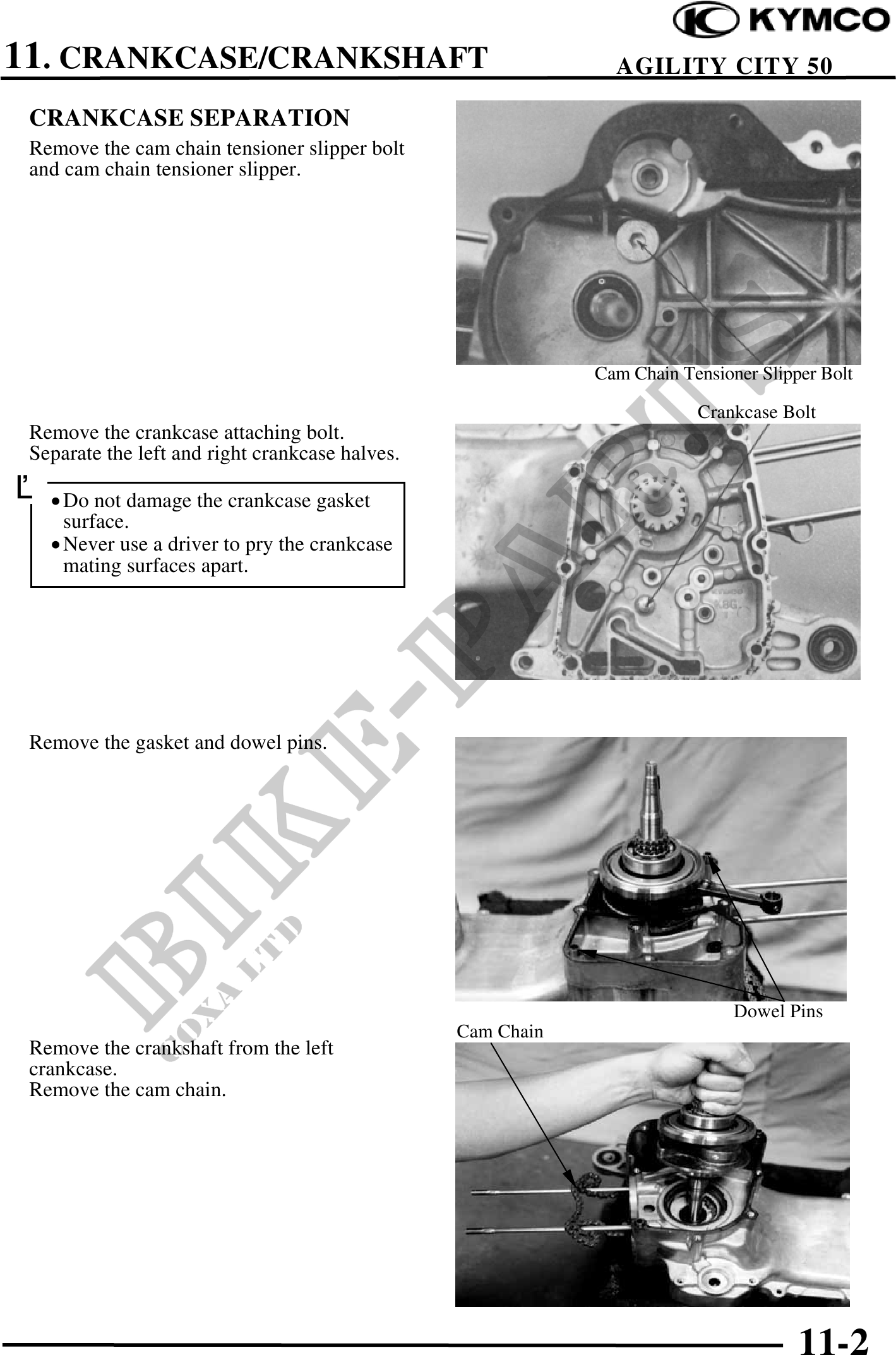

11. CRANKCASE/CRANKSHAFT AGILITY CITY 50
CRANKCASE SEPARATION
Remove the cam chain tensioner slipper bolt
and cam chain tensioner slipper.
Cam Chain Tensioner Slipper Bolt
Crankcase Bolt
Remove the crankcase attaching bolt.
Separate the left and right crankcase halves.
· Do not damage the crankcase gasket
surface.
· Never use a driver to pry the crankcase
mating surfaces apart.
Remove the gasket and dowel pins.
Dowel Pins
Cam Chain
Remove the crankshaft from the left
crankcase.
Remove the cam chain.
11-2
