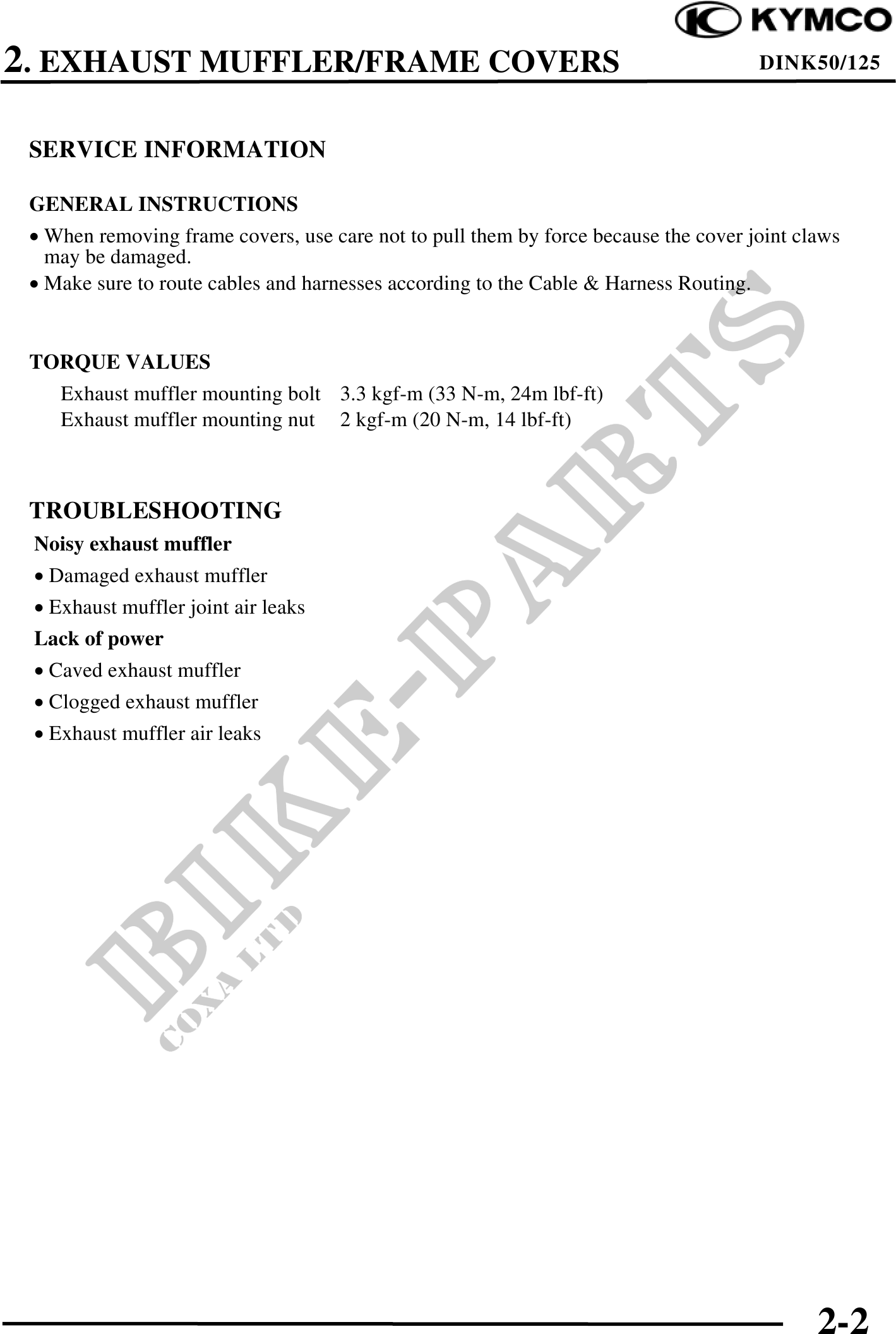

2. EXHAUST MUFFLER/FRAME COVERS DINK50/125
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When removing frame covers, use care not to pull them by force because the cover joint claws
may be damaged.
· Make sure to route cables and harnesses according to the Cable & Harness Routing.
TORQUE VALUES
Exhaust muffler mounting bolt 3.3 kgf-m (33 N-m, 24m lbf-ft)
Exhaust muffler mounting nut 2 kgf-m (20 N-m, 14 lbf-ft)
TROUBLESHOOTING
Noisy exhaust muffler
· Damaged exhaust muffler
· Exhaust muffler joint air leaks
Lack of power
· Caved exhaust muffler
· Clogged exhaust muffler
· Exhaust muffler air leaks
2-2
