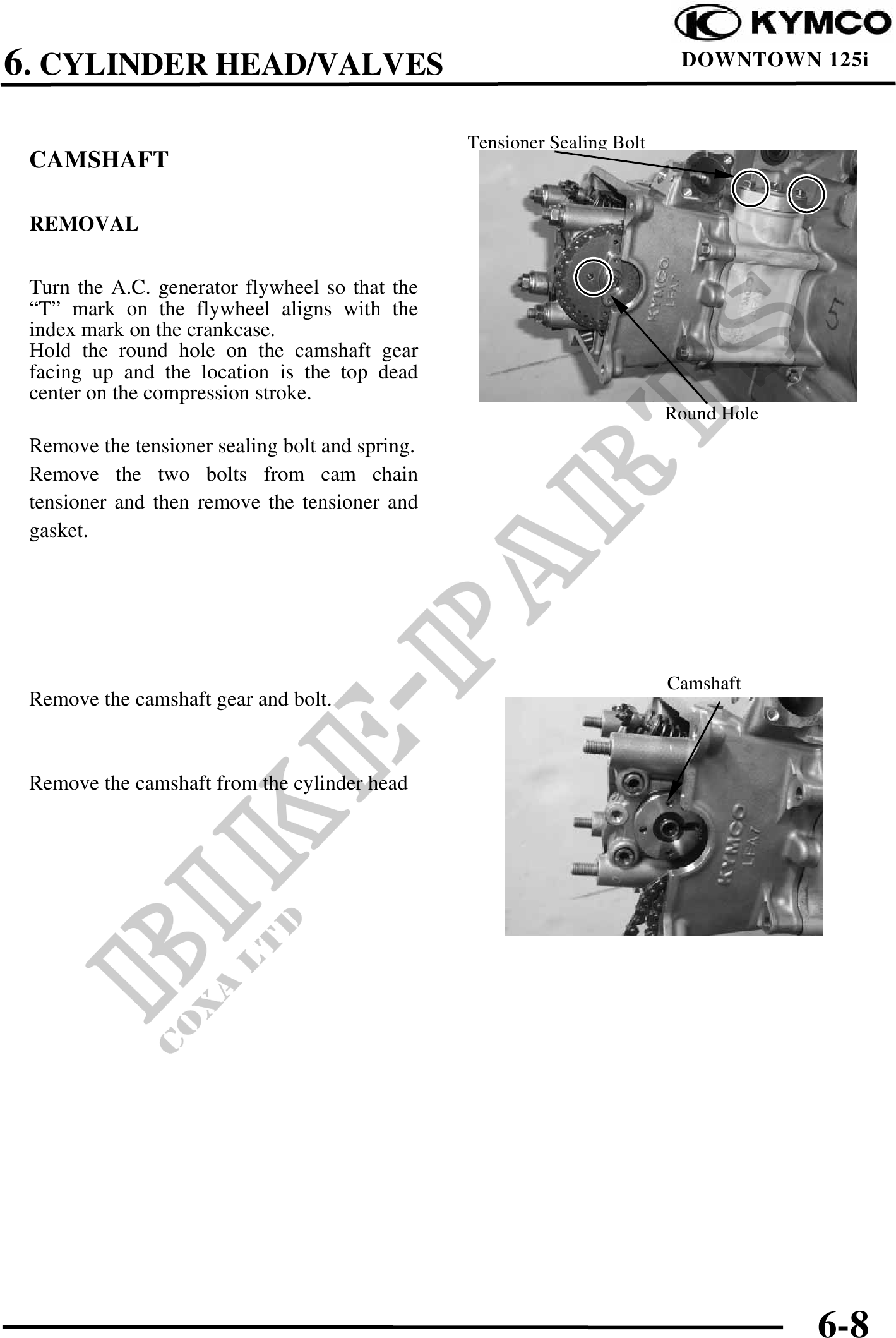

6. CYLINDER HEAD/VALVES DOWNTOWN 125i
Tensioner Sealing Bolt
CAMSHAFT
REMOVAL
Turn the A.C. generator flywheel so that the
"T" mark on the flywheel aligns with the
index mark on the crankcase.
Hold the round hole on the camshaft gear
facing up and the location is the top dead
center on the compression stroke.
Round Hole
Remove the tensioner sealing bolt and spring.
Remove the two bolts from cam chain
tensioner and then remove the tensioner and
gasket.
Camshaft
Remove the camshaft gear and bolt.
Remove the camshaft from the cylinder head
6-8
