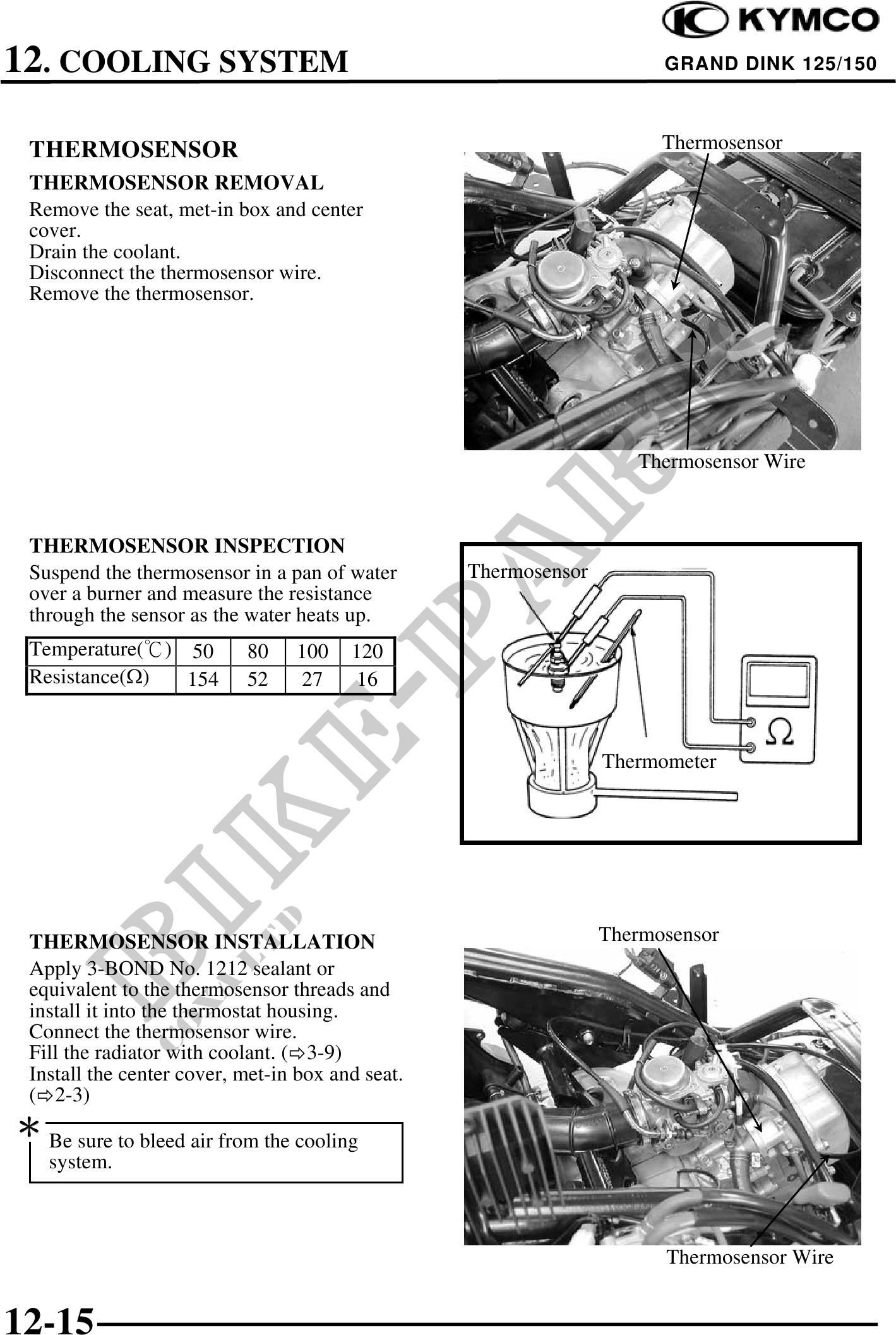

12. COOLING SYSTEM GRAND DINK 125/150
THERMOSENSOR Thermosensor
THERMOSENSOR REMOVAL
Remove the seat, met-in box and center
cover.
Drain the coolant.
Disconnect the thermosensor wire.
Remove the thermosensor.
Thermosensor Wire
THERMOSENSOR INSPECTION
Suspend the thermosensor in a pan of water Thermosensor
over a burner and measure the resistance
through the sensor as the water heats up.
Temperature() 50 80 100 120
Resistance() 154 52 27 16
Thermometer
THERMOSENSOR INSTALLATION Thermosensor
Apply 3-BOND No. 1212 sealant or
equivalent to the thermosensor threads and
install it into the thermostat housing.
Connect the thermosensor wire.
Fill the radiator with coolant. ( 3-9)
Install the center cover, met-in box and seat.
( 2-3)
Be sure to bleed air from the cooling
system.
Thermosensor Wire
12-15
