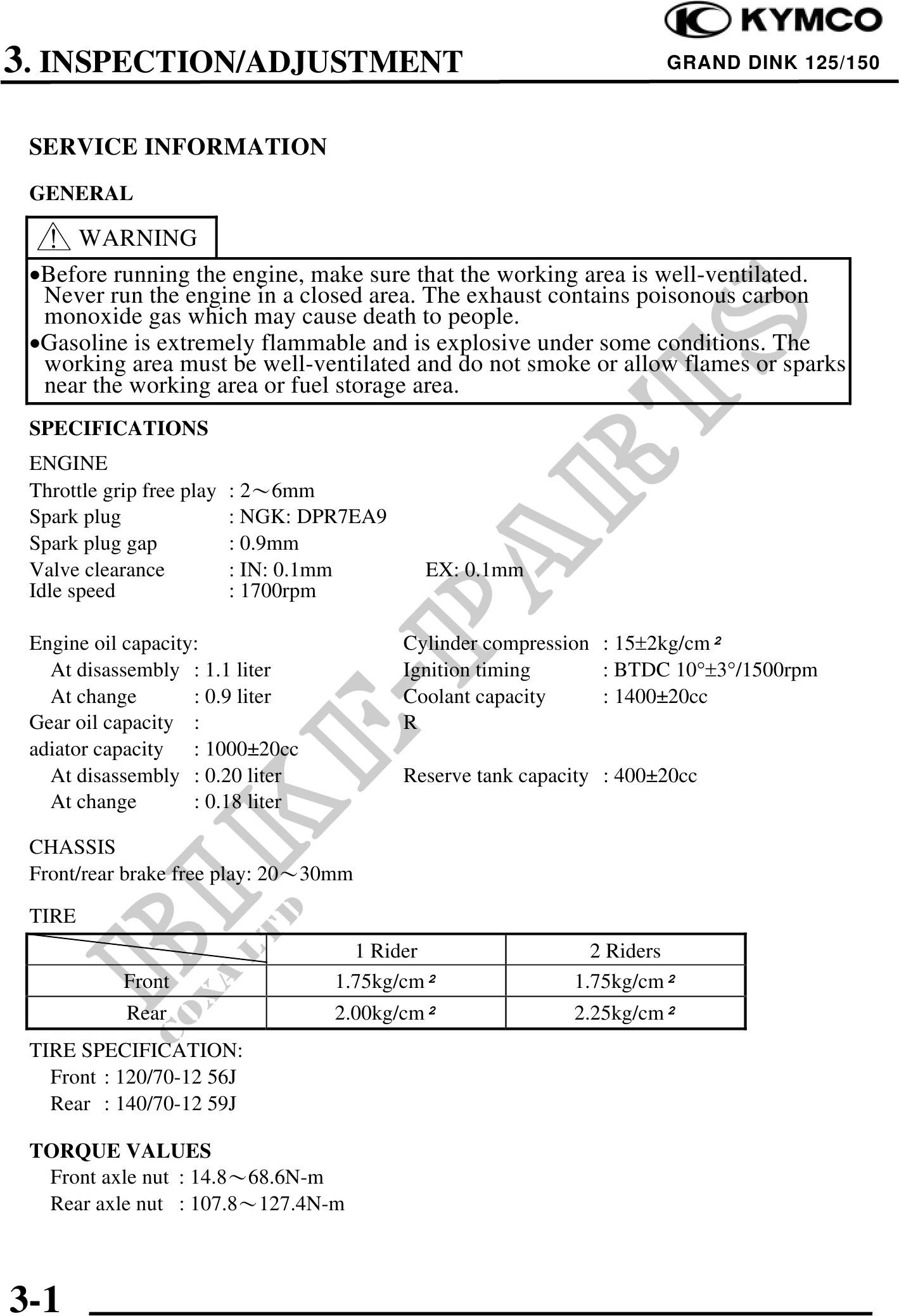

          3. INSPECTION/ADJUSTMENT                                               GRAND DINK 125/150



 SERVICE INFORMATION
 GENERAL

   WARNING
 ·Before running the engine, make sure that the working area is well-ventilated.
  Never run the engine in a closed area. The exhaust contains poisonous carbon
  monoxide gas which may cause death to people.
 ·Gasoline is extremely flammable and is explosive under some conditions. The
  working area must be well-ventilated and do not smoke or allow flames or sparks
  near the working area or fuel storage area.
 SPECIFICATIONS
 ENGINE
 Throttle grip free play   : 26mm
 Spark plug                : NGK: DPR7EA9
 Spark plug gap            : 0.9mm
 Valve clearance           : IN: 0.1mm        EX: 0.1mm
 Idle speed                : 1700rpm

 Engine oil capacity:                       Cylinder compression : 152kg/cm
   At disassembly : 1.1 liter               Ignition timing      : BTDC 10°3°/1500rpm
   At change        : 0.9 liter             Coolant capacity     : 140020cc
 Gear oil capacity :                        R
 adiator capacity : 100020cc
   At disassembly : 0.20 liter              Reserve tank capacity : 40020cc
   At change        : 0.18 liter

 CHASSIS
 Front/rear brake free play: 2030mm

 TIRE
                                      1 Rider                   2 Riders
            Front                   1.75kg/cm                 1.75kg/cm
            Rear                    2.00kg/cm                 2.25kg/cm
 TIRE SPECIFICATION:
   Front : 120/70-12 56J
   Rear : 140/70-12 59J

 TORQUE VALUES
  Front axle nut : 14.868.6N-m
  Rear axle nut : 107.8127.4N-m



3-1
