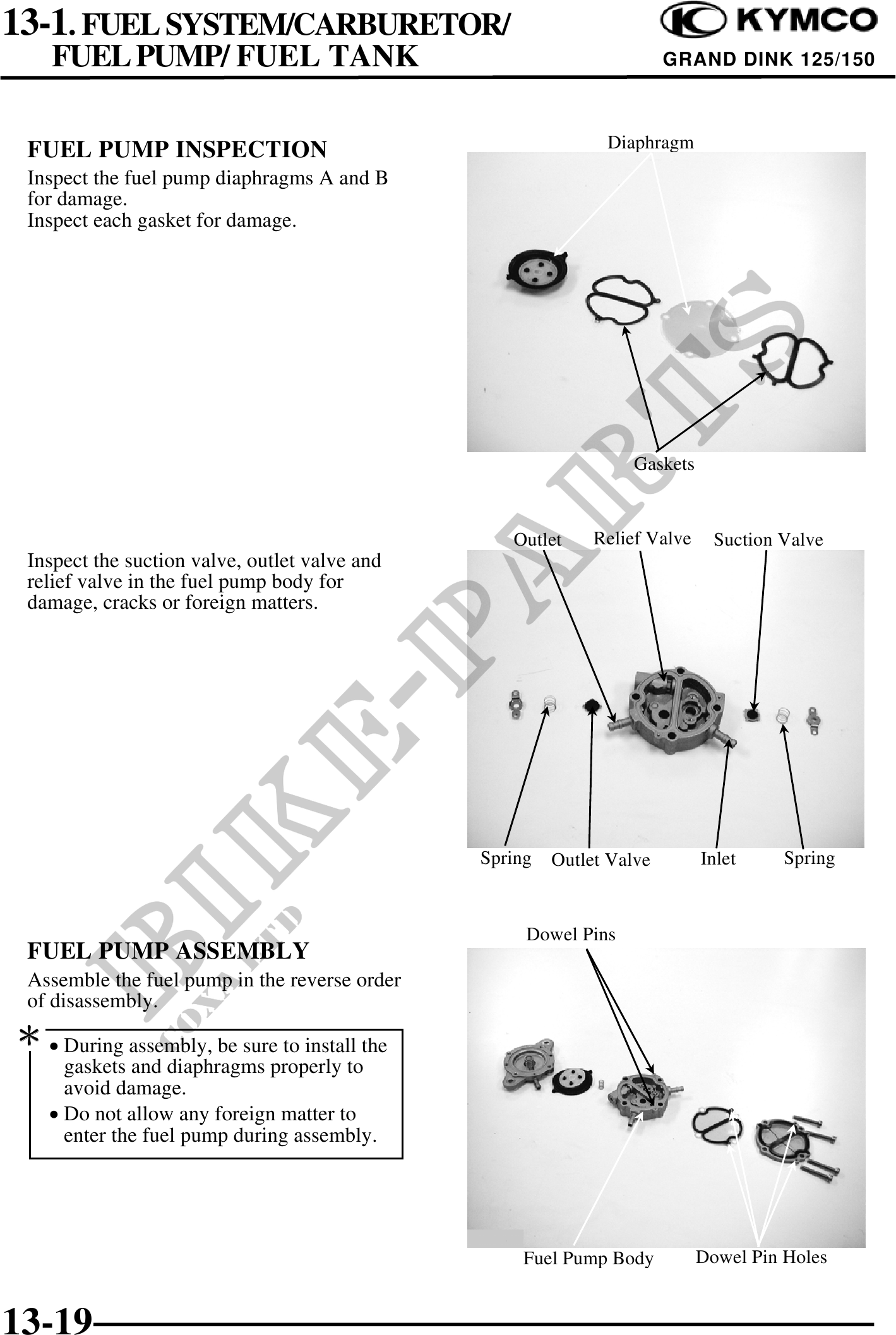

13-1. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK GRAND DINK 125/150
FUEL PUMP INSPECTION Diaphragm
Inspect the fuel pump diaphragms A and B
for damage.
Inspect each gasket for damage.
Gaskets
Outlet Relief Valve Suction Valve
Inspect the suction valve, outlet valve and
relief valve in the fuel pump body for
damage, cracks or foreign matters.
Spring Outlet Valve Inlet Spring
Dowel Pins
FUEL PUMP ASSEMBLY
Assemble the fuel pump in the reverse order
of disassembly.
· During assembly, be sure to install the
gaskets and diaphragms properly to
avoid damage.
· Do not allow any foreign matter to
enter the fuel pump during assembly.
Fuel Pump Body Dowel Pin Holes
13-19
