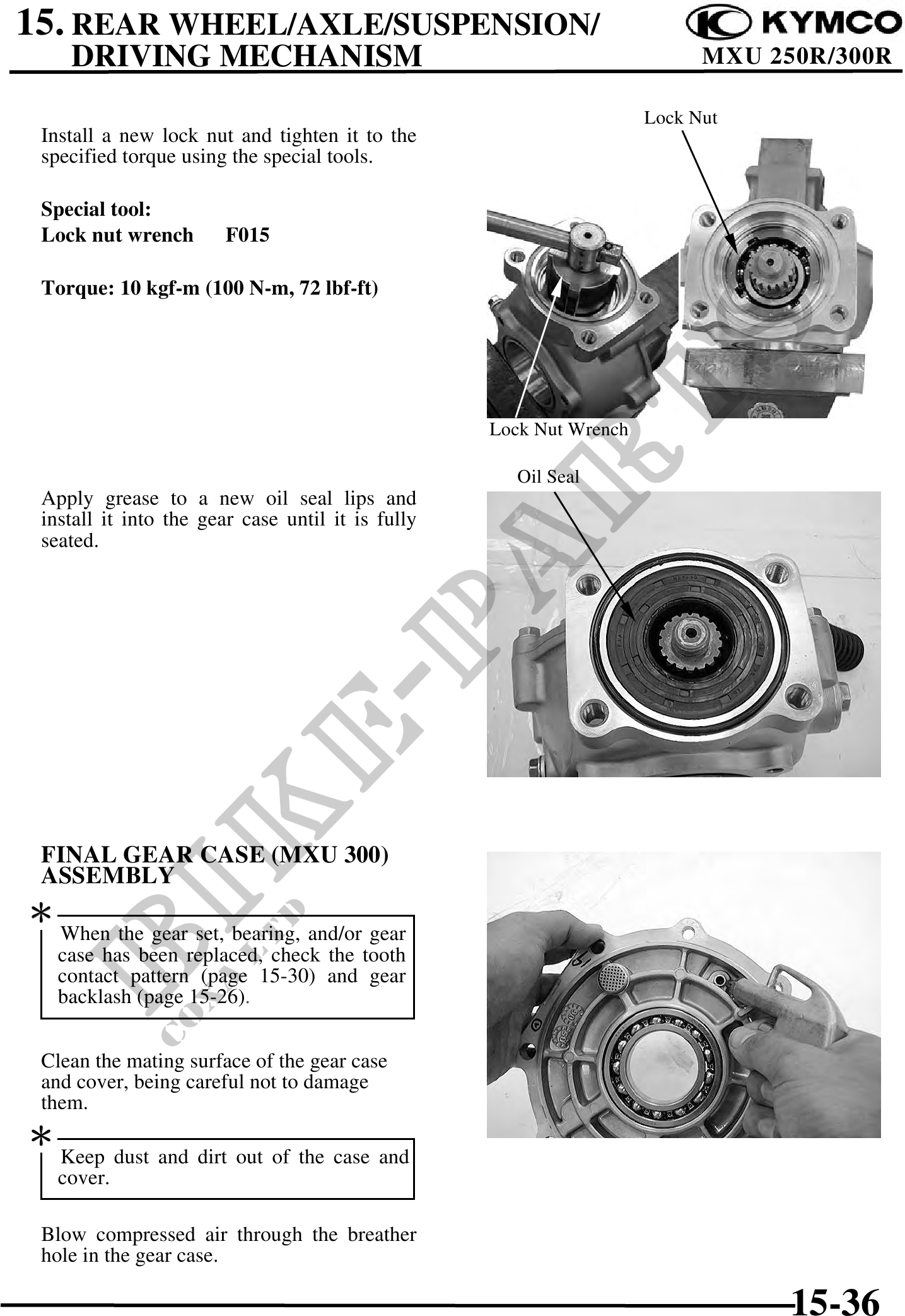

15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM MXU 250R/300R
Lock Nut
Install a new lock nut and tighten it to the
specified torque using the special tools.
Special tool:
Lock nut wrench F015
Torque: 10 kgf-m (100 N-m, 72 lbf-ft)
Lock Nut Wrench
Oil Seal
Apply grease to a new oil seal lips and
install it into the gear case until it is fully
seated.
FINAL GEAR CASE (MXU 300)
ASSEMBLY
When the gear set, bearing, and/or gear
case has been replaced, check the tooth
contact pattern (page 15-30) and gear
backlash (page 15-26).
Clean the mating surface of the gear case
and cover, being careful not to damage
them.
Keep dust and dirt out of the case and
cover.
Blow compressed air through the breather
hole in the gear case.
15-36
