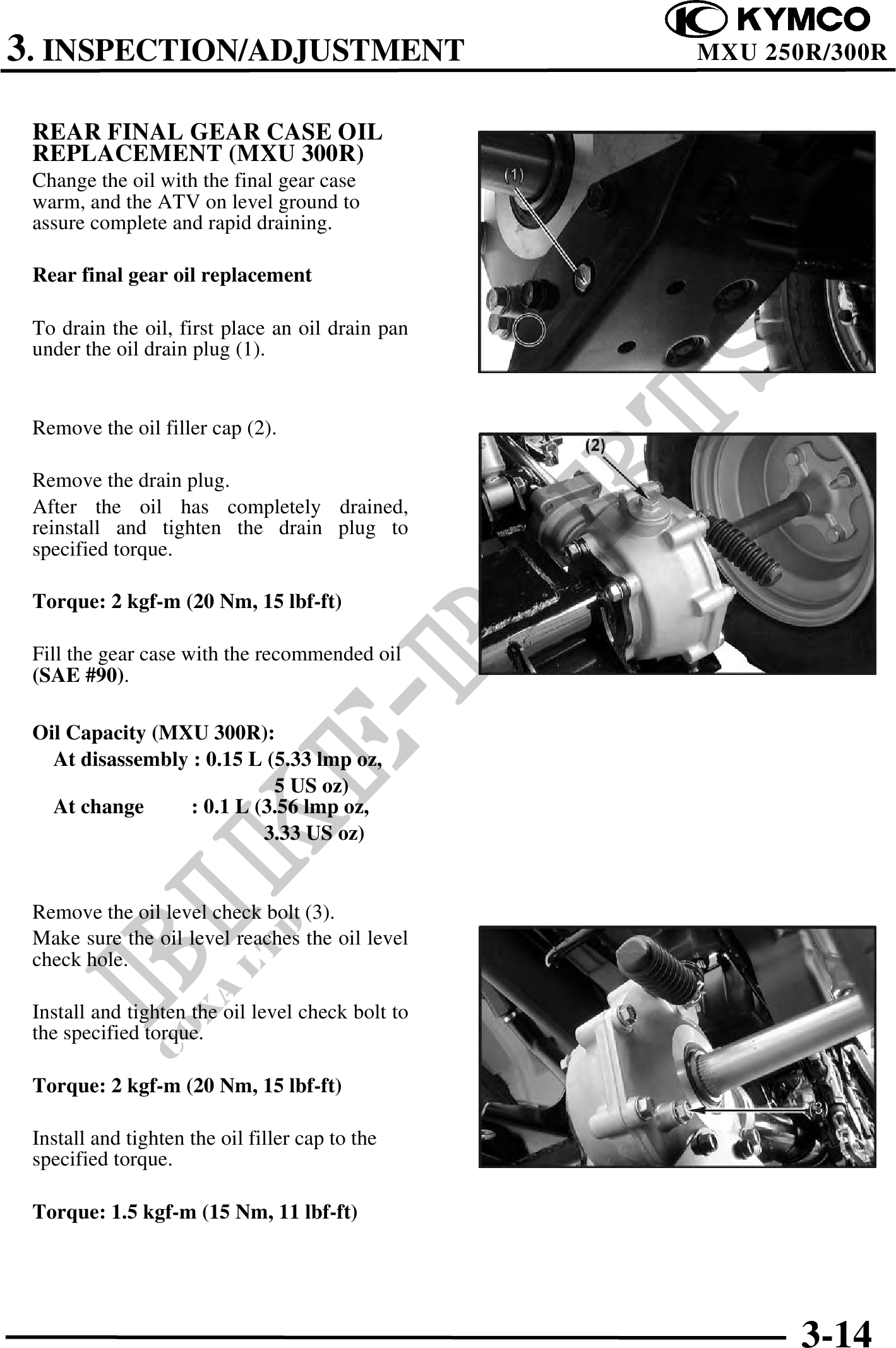

3. INSPECTION/ADJUSTMENT MXU 250R/300R
REAR FINAL GEAR CASE OIL
REPLACEMENT (MXU 300R)
Change the oil with the final gear case
warm, and the ATV on level ground to
assure complete and rapid draining.
Rear final gear oil replacement
To drain the oil, first place an oil drain pan
under the oil drain plug (1).
Remove the oil filler cap (2).
Remove the drain plug.
After the oil has completely drained,
reinstall and tighten the drain plug to
specified torque.
Torque: 2 kgf-m (20 Nm, 15 lbf-ft)
Fill the gear case with the recommended oil
(SAE #90).
Oil Capacity (MXU 300R):
At disassembly : 0.15 L (5.33 lmp oz,
5 US oz)
At change : 0.1 L (3.56 lmp oz,
3.33 US oz)
Remove the oil level check bolt (3).
Make sure the oil level reaches the oil level
check hole.
Install and tighten the oil level check bolt to
the specified torque.
Torque: 2 kgf-m (20 Nm, 15 lbf-ft)
Install and tighten the oil filler cap to the
specified torque.
Torque: 1.5 kgf-m (15 Nm, 11 lbf-ft)
3-14
