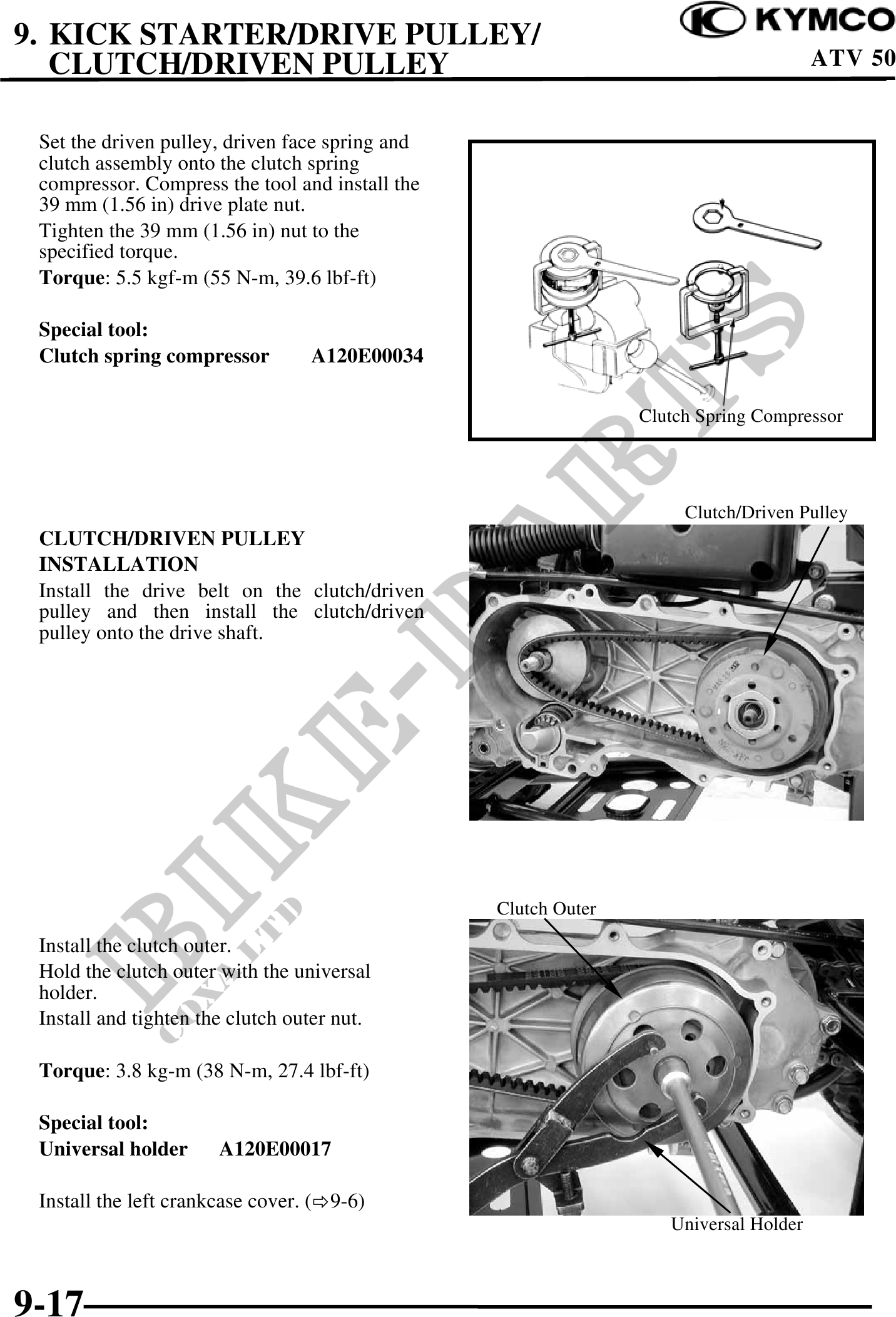

9. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY ATV 50
Set the driven pulley, driven face spring and
clutch assembly onto the clutch spring
compressor. Compress the tool and install the
39 mm (1.56 in) drive plate nut.
Tighten the 39 mm (1.56 in) nut to the
specified torque.
Torque: 5.5 kgf-m (55 N-m, 39.6 lbf-ft)
Special tool:
Clutch spring compressor A120E00034
Clutch Spring Compressor
Clutch/Driven Pulley
CLUTCH/DRIVEN PULLEY
INSTALLATION
Install the drive belt on the clutch/driven
pulley and then install the clutch/driven
pulley onto the drive shaft.
Clutch Outer
Install the clutch outer.
Hold the clutch outer with the universal
holder.
Install and tighten the clutch outer nut.
Torque: 3.8 kg-m (38 N-m, 27.4 lbf-ft)
Special tool:
Universal holder A120E00017
Install the left crankcase cover. ( 9-6)
Universal Holder
9-17
