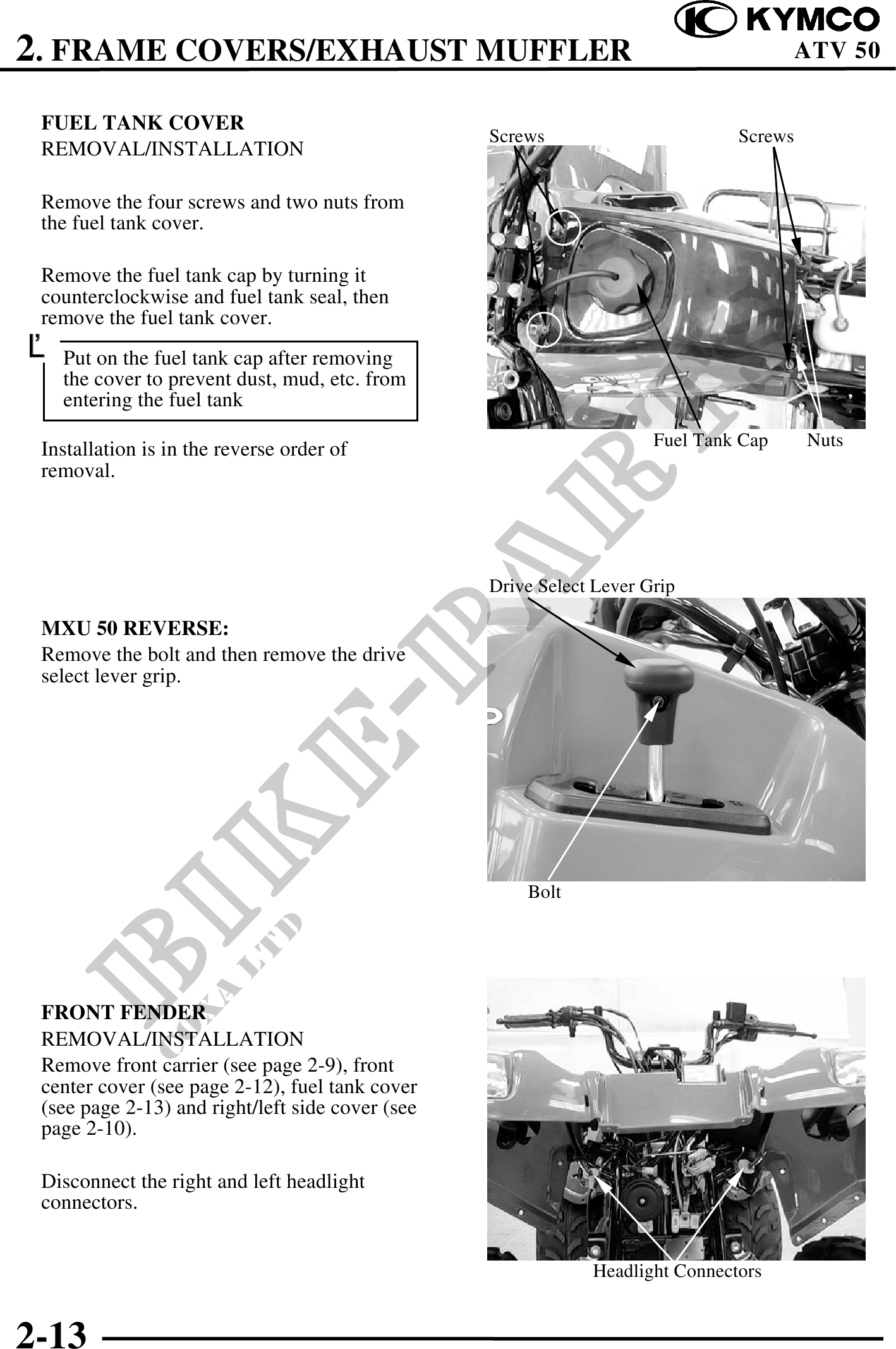

2. FRAME COVERS/EXHAUST MUFFLER ATV 50
FUEL TANK COVER
Screws Screws
REMOVAL/INSTALLATION
Remove the four screws and two nuts from
the fuel tank cover.
Remove the fuel tank cap by turning it
counterclockwise and fuel tank seal, then
remove the fuel tank cover.
Put on the fuel tank cap after removing
the cover to prevent dust, mud, etc. from
entering the fuel tank
Fuel Tank Cap Nuts
Installation is in the reverse order of
removal.
Drive Select Lever Grip
MXU 50 REVERSE:
Remove the bolt and then remove the drive
select lever grip.
Bolt
FRONT FENDER
REMOVAL/INSTALLATION
Remove front carrier (see page 2-9), front
center cover (see page 2-12), fuel tank cover
(see page 2-13) and right/left side cover (see
page 2-10).
Disconnect the right and left headlight
connectors.
Headlight Connectors
2-13
