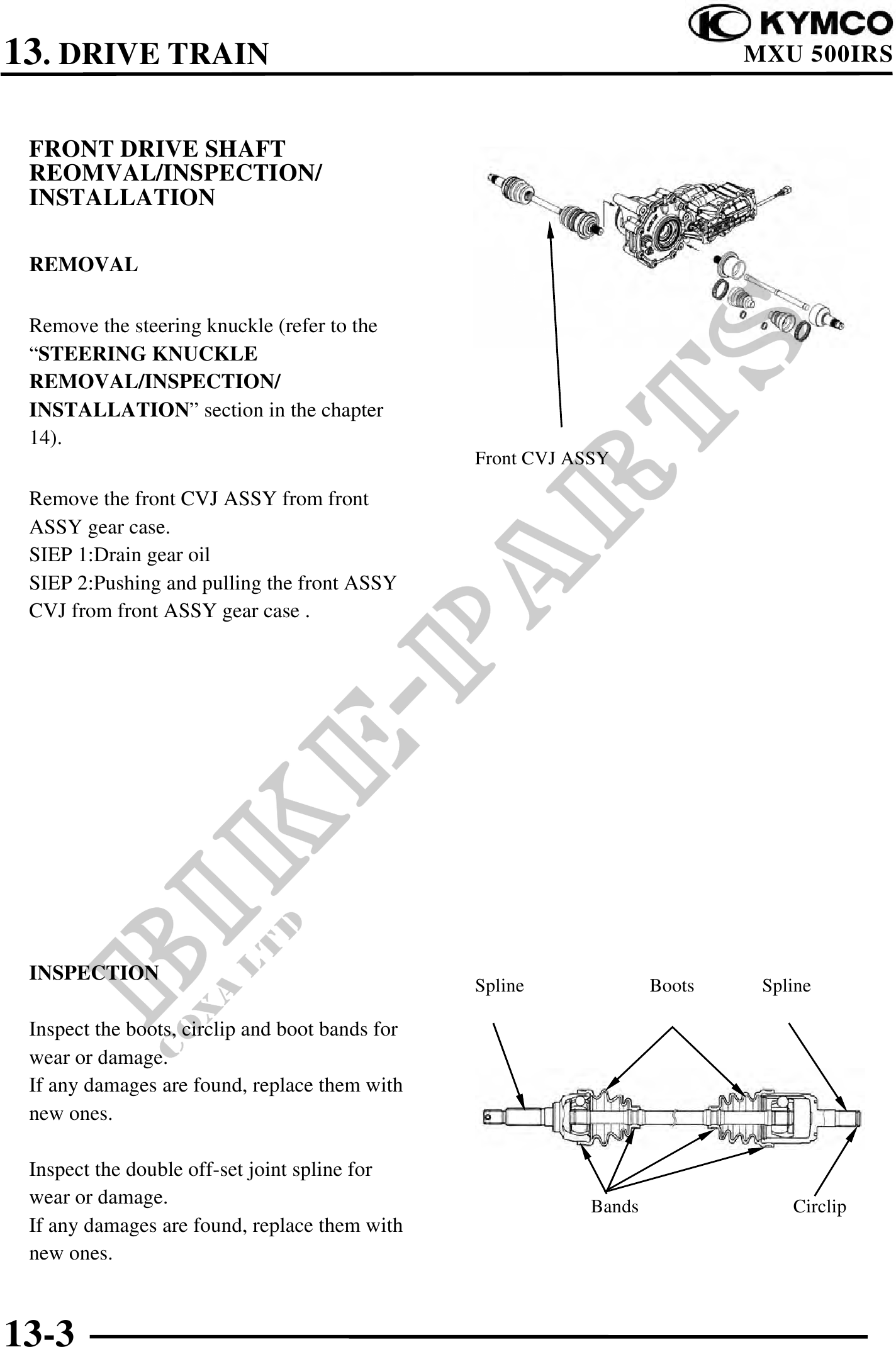

13. DRIVE TRAIN MXU 500IRS
FRONT DRIVE SHAFT
REOMVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the steering knuckle (refer to the
"STEERING KNUCKLE
REMOVAL/INSPECTION/
INSTALLATION" section in the chapter
14).
Front CVJ ASSY
Remove the front CVJ ASSY from front
ASSY gear case.
SIEP 1:Drain gear oil
SIEP 2:Pushing and pulling the front ASSY
CVJ from front ASSY gear case .
INSPECTION
Spline Boots Spline
Inspect the boots, circlip and boot bands for
wear or damage.
If any damages are found, replace them with
new ones.
Inspect the double off-set joint spline for
wear or damage. Bands Circlip
If any damages are found, replace them with
new ones.
13-3
