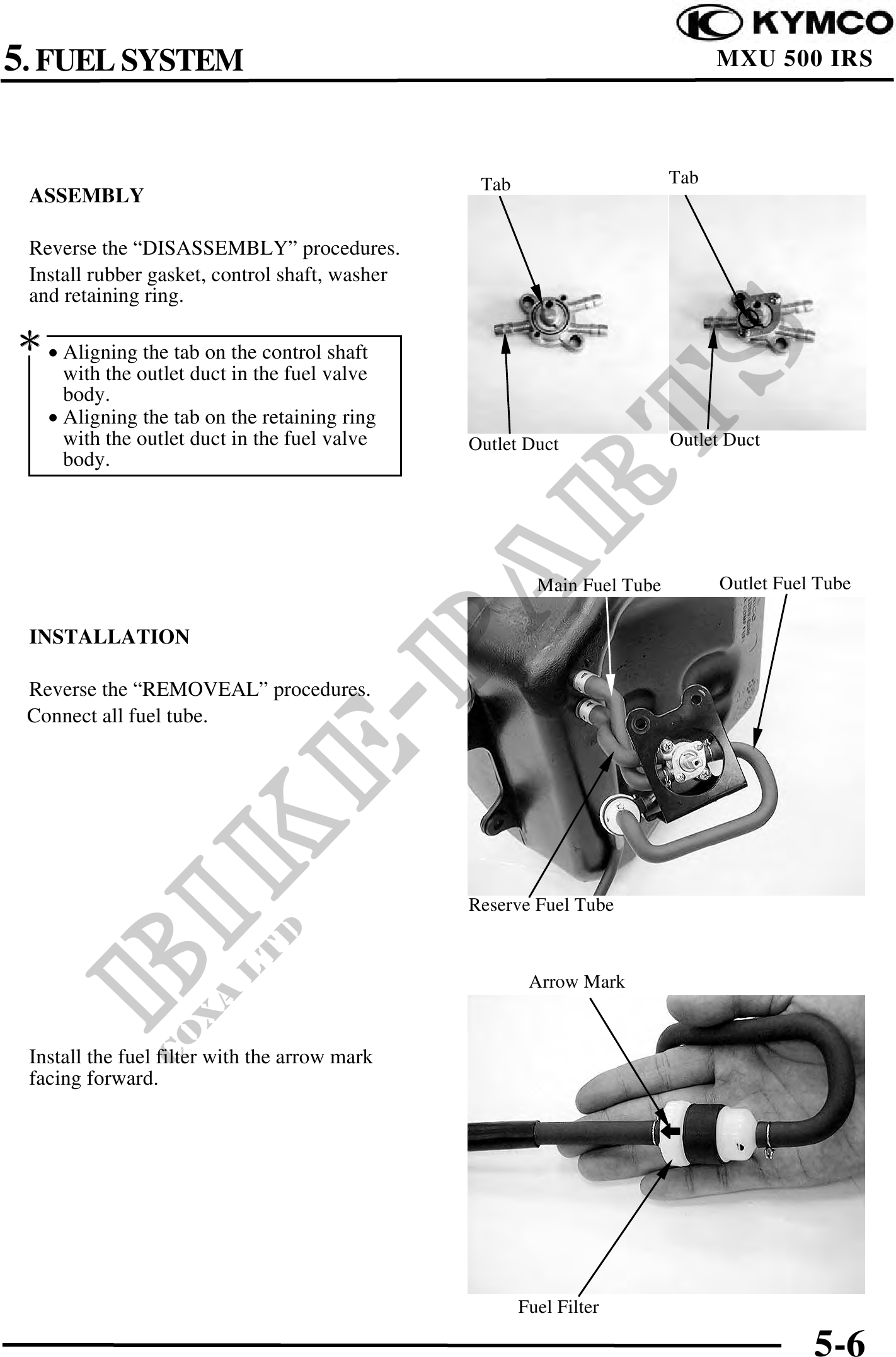

5. FUEL SYSTEM MXU 500 IRS
Tab Tab
ASSEMBLY
Reverse the "DISASSEMBLY" procedures.
Install rubber gasket, control shaft, washer
and retaining ring.
· Aligning the tab on the control shaft
with the outlet duct in the fuel valve
body.
· Aligning the tab on the retaining ring
with the outlet duct in the fuel valve Outlet Duct Outlet Duct
body.
Main Fuel Tube Outlet Fuel Tube
INSTALLATION
Reverse the "REMOVEAL" procedures.
Connect all fuel tube.
Reserve Fuel Tube
Arrow Mark
Install the fuel filter with the arrow mark
facing forward.
Fuel Filter
5-6
