22. FUEL INJECTION SYSTEM MXU500i

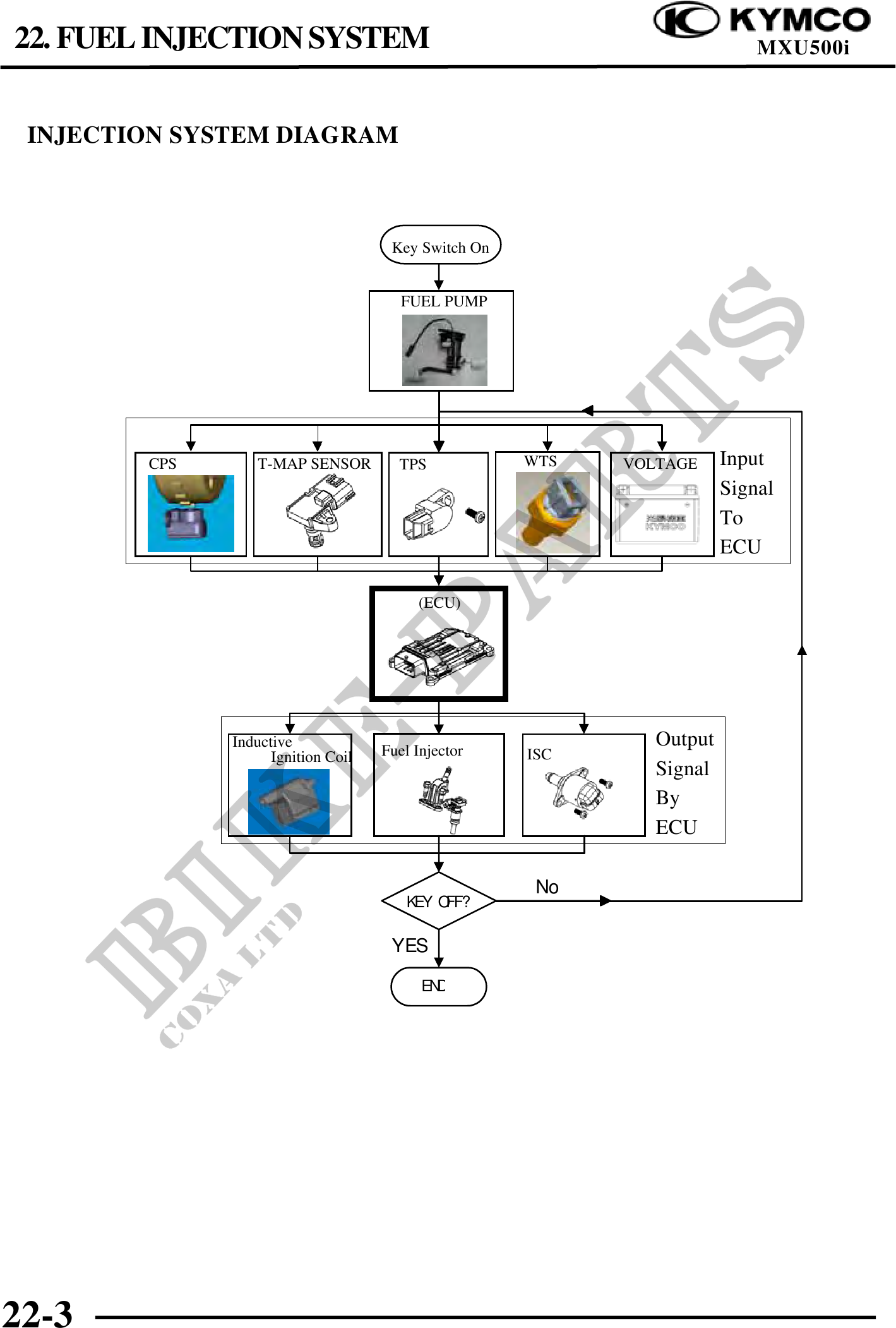

INJECTION SYSTEM DIAGRAM
Key Switch On
FUEL PUMP
CPS T-MAP SENSOR TPS WTS VOLTAGE Input
Signal
To
ECU
(ECU)
Inductive
Fuel Injector
Output
Ignition Coil ISC
Signal
By
ECU
No
KEY OFF?
YES
END
22-3
