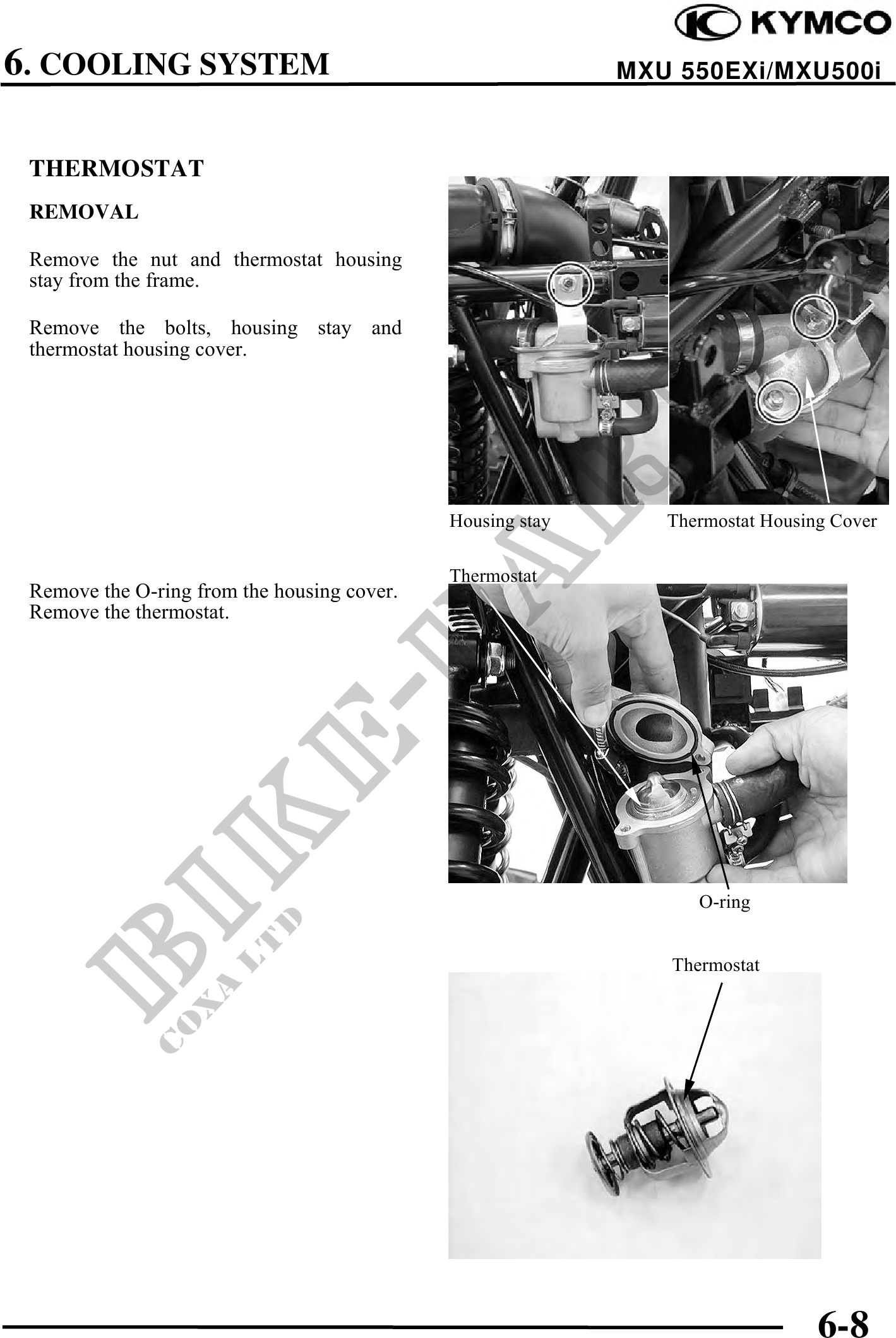

          6. COOLING SYSTEM                                           MXU 550EXi/MXU500i


 THERMOSTAT
 REMOVAL

 Remove the nut and thermostat housing
 stay from the frame.

 Remove the bolts, housing stay and
 thermostat housing cover.




                                             Housing stay      Thermostat Housing Cover

                                             Thermostat
 Remove the O-ring from the housing cover.
 Remove the thermostat.




                                                                  O-ring


                                                               Thermostat




                                                                                6-8
