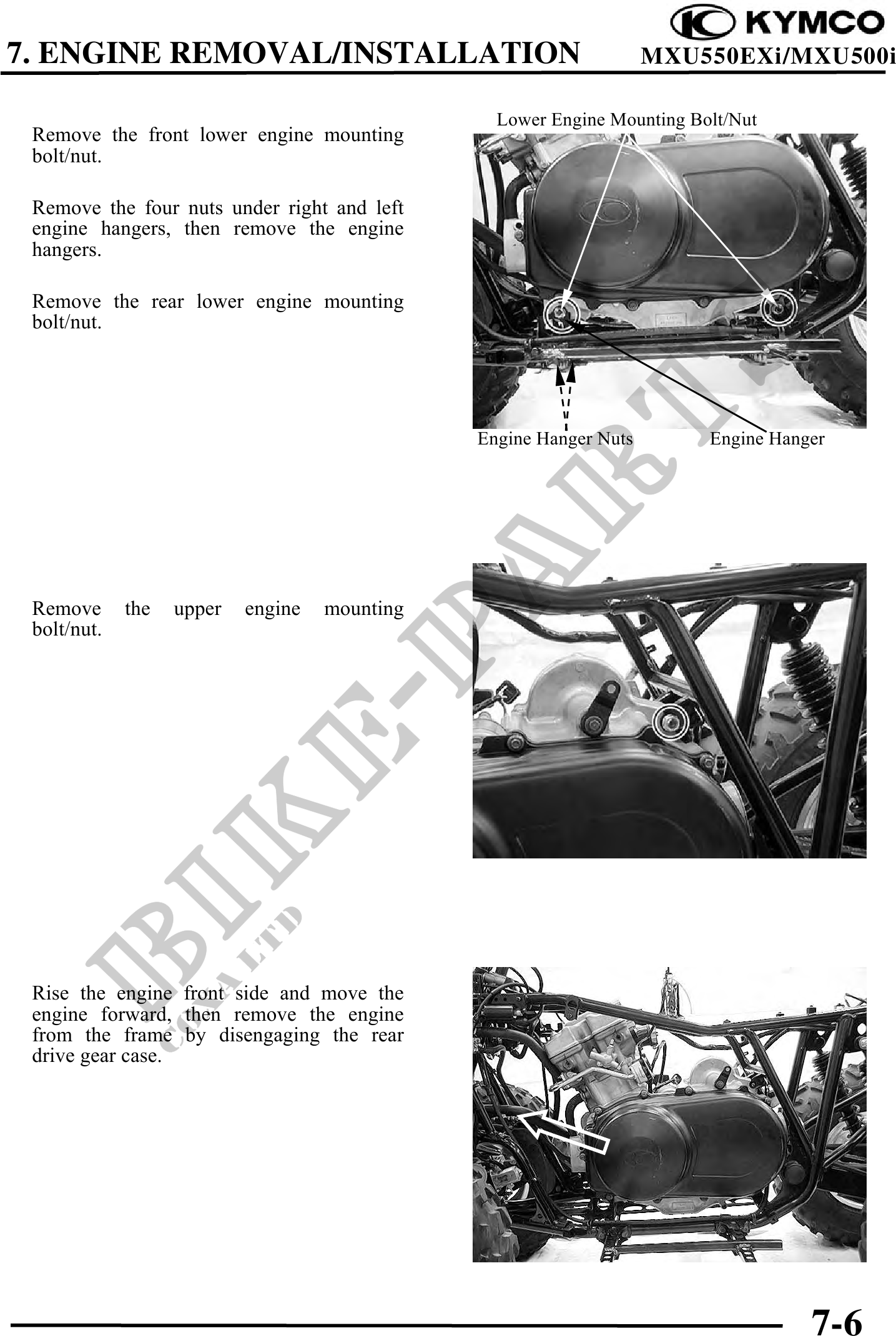

7. ENGINE REMOVAL/INSTALLATION MXU550EXi/MXU500i
Lower Engine Mounting Bolt/Nut
Remove the front lower engine mounting
bolt/nut.
Remove the four nuts under right and left
engine hangers, then remove the engine
hangers.
Remove the rear lower engine mounting
bolt/nut.
Engine Hanger Nuts Engine Hanger
Remove the upper engine mounting
bolt/nut.
Rise the engine front side and move the
engine forward, then remove the engine
from the frame by disengaging the rear
drive gear case.
7-6
