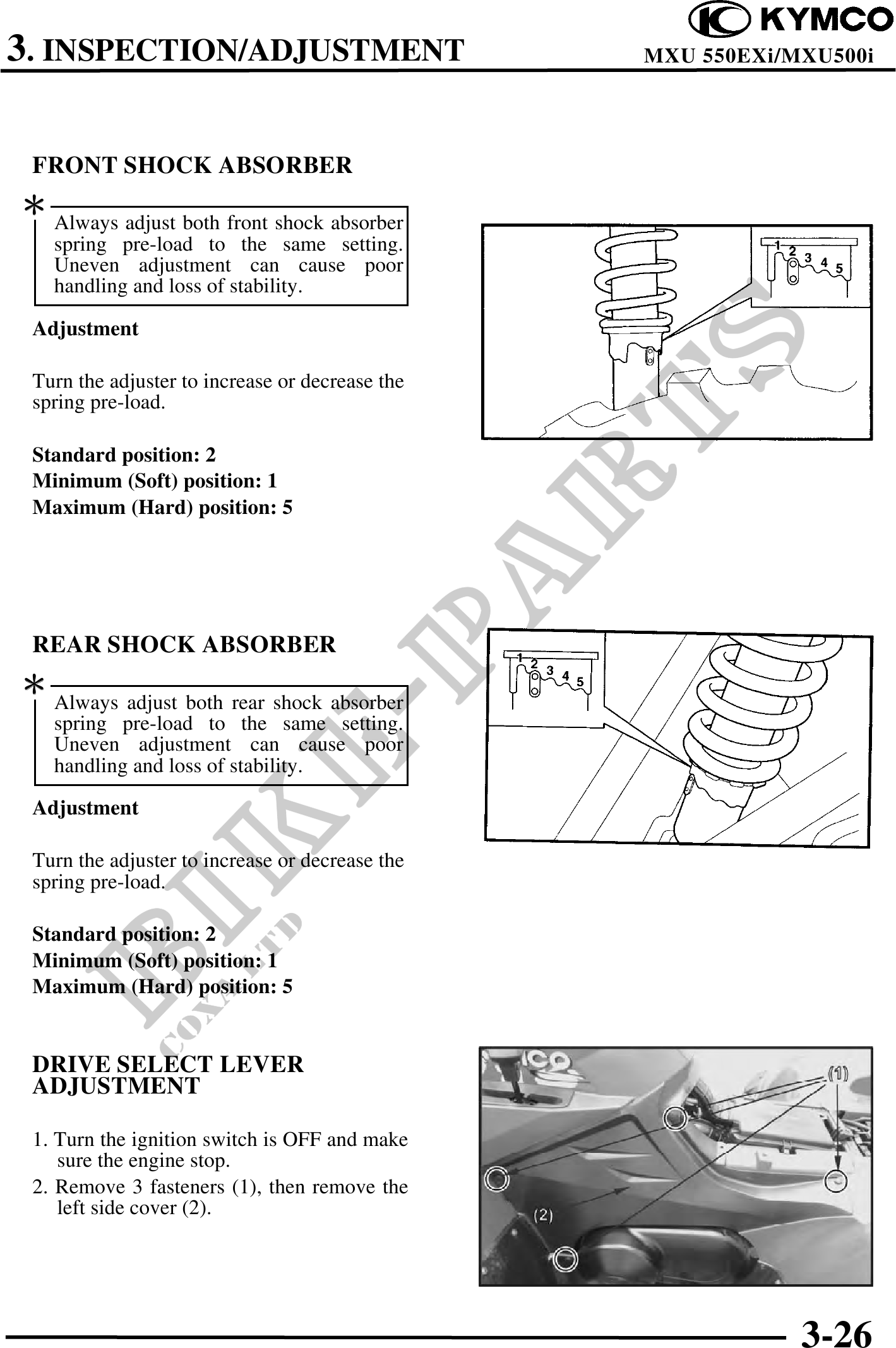

3. INSPECTION/ADJUSTMENT MXU 550EXi/MXU500i
FRONT SHOCK ABSORBER
Always adjust both front shock absorber
spring pre-load to the same setting.
Uneven adjustment can cause poor
handling and loss of stability.
Adjustment
Turn the adjuster to increase or decrease the
spring pre-load.
Standard position: 2
Minimum (Soft) position: 1
Maximum (Hard) position: 5
REAR SHOCK ABSORBER
Always adjust both rear shock absorber
spring pre-load to the same setting.
Uneven adjustment can cause poor
handling and loss of stability.
Adjustment
Turn the adjuster to increase or decrease the
spring pre-load.
Standard position: 2
Minimum (Soft) position: 1
Maximum (Hard) position: 5
DRIVE SELECT LEVER
ADJUSTMENT
1. Turn the ignition switch is OFF and make
sure the engine stop.
2. Remove 3 fasteners (1), then remove the
left side cover (2).
3-26
