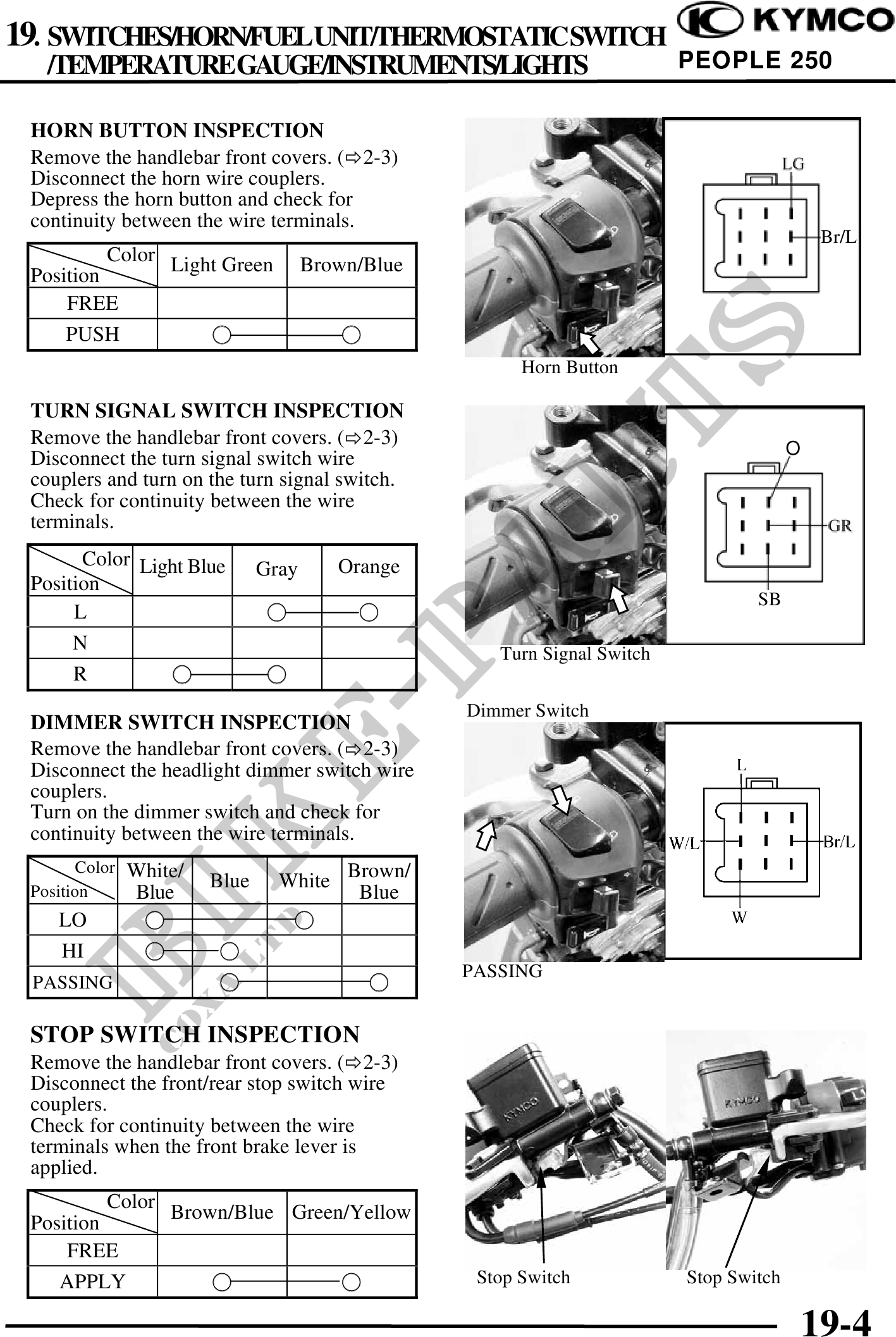

19. SWITCHES/HORN/FUELUNIT/THERMOSTATICSWITCH
/TEMPERATUREGAUGE/INSTRUMENTS/LIGHTS PEOPLE 250
HORN BUTTON INSPECTION
Remove the handlebar front covers. ( 2-3)
Disconnect the horn wire couplers.
Depress the horn button and check for
continuity between the wire terminals.
Br/L
Color Light Green Brown/Blue
Position
FREE
PUSH
Horn Button
TURN SIGNAL SWITCH INSPECTION
Remove the handlebar front covers. ( 2-3)
O
Disconnect the turn signal switch wire
couplers and turn on the turn signal switch.
Check for continuity between the wire
terminals.
Color Light Blue Gray Orange
Position
SB
L
N Turn Signal Switch
R
Dimmer Switch
DIMMER SWITCH INSPECTION
Remove the handlebar front covers. ( 2-3)
Disconnect the headlight dimmer switch wire
couplers.
Turn on the dimmer switch and check for
continuity between the wire terminals.
Color White/
Blue White Brown/
Position Blue Blue
LO
HI
PASSING
PASSING
STOP SWITCH INSPECTION
Remove the handlebar front covers. ( 2-3)
Disconnect the front/rear stop switch wire
couplers.
Check for continuity between the wire
terminals when the front brake lever is
applied.
Color Brown/Blue Green/Yellow
Position
FREE
APPLY Stop Switch Stop Switch
19-4
