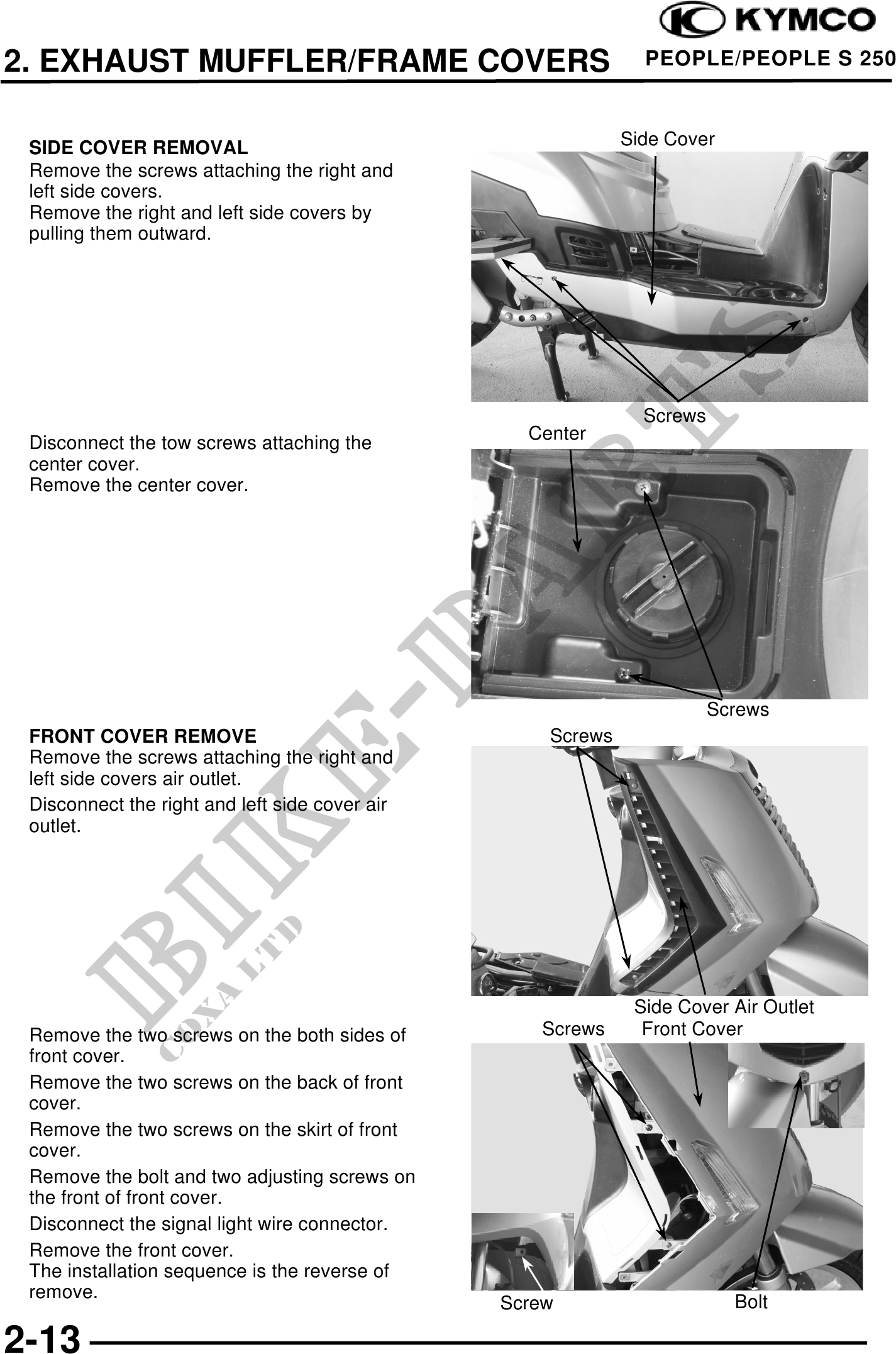

2. EXHAUST MUFFLER/FRAME COVERS PEOPLE/PEOPLE S 250
SIDE COVER REMOVAL Side Cover
Remove the screws attaching the right and
left side covers.
Remove the right and left side covers by
pulling them outward.
Screws
Center
Disconnect the tow screws attaching the
center cover.
Remove the center cover.
Screws
FRONT COVER REMOVE Screws
Remove the screws attaching the right and
left side covers air outlet.
Disconnect the right and left side cover air
outlet.
Side Cover Air Outlet
Remove the two screws on the both sides of Screws Front Cover
front cover.
Remove the two screws on the back of front
cover.
Remove the two screws on the skirt of front
cover.
Remove the bolt and two adjusting screws on
the front of front cover.
Disconnect the signal light wire connector.
Remove the front cover.
The installation sequence is the reverse of
remove.
Screw Bolt
2-13
