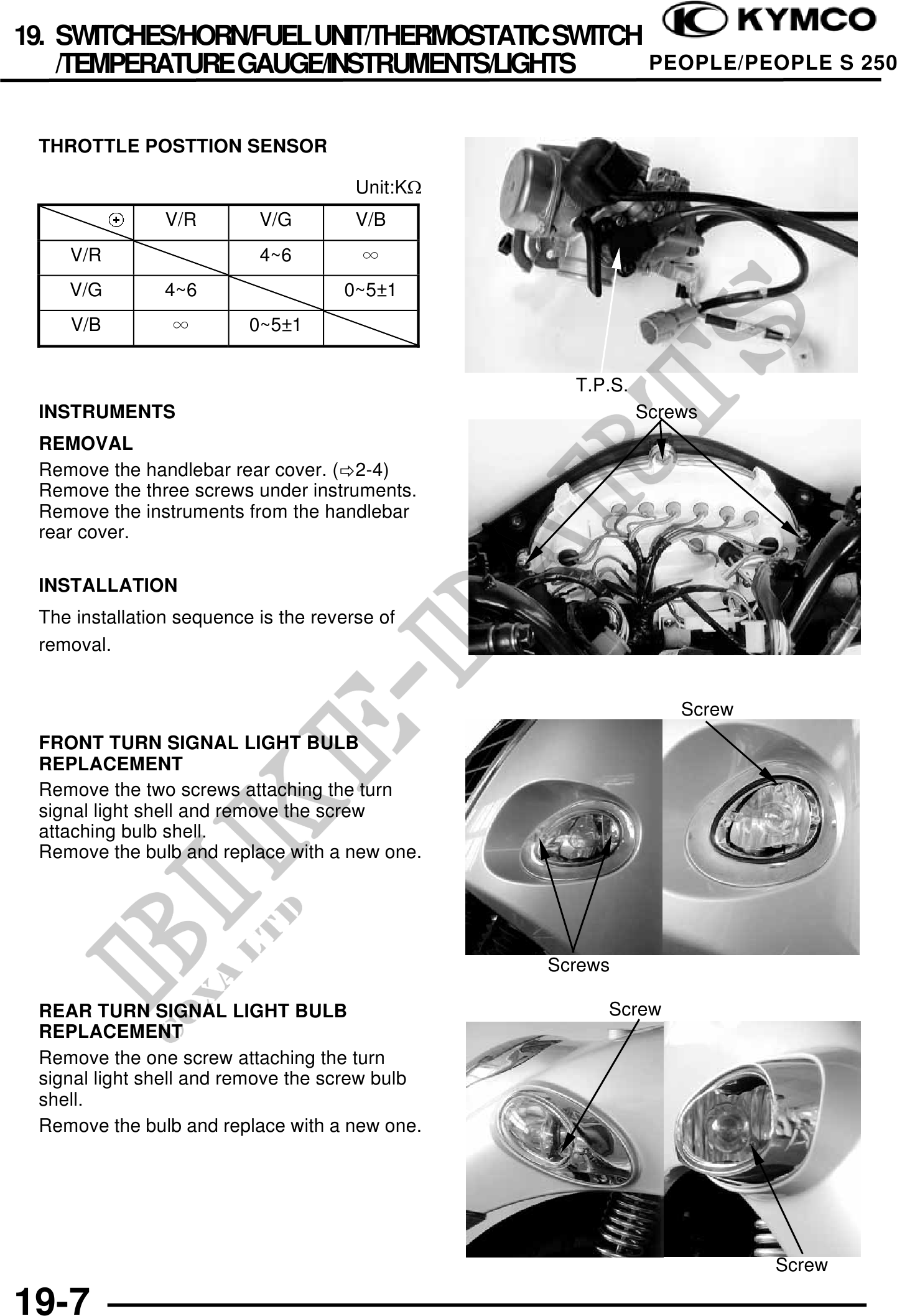

19. SWITCHES/HORN/FUEL UNIT/THERMOSTATIC SWITCH
/TEMPERATURE GAUGE/INSTRUMENTS/LIGHTS PEOPLE/PEOPLE S 250
THROTTLE POSTTION SENSOR
Unit:K
V/R V/G V/B
V/R 4~6
V/G 4~6 0~51
V/B 0~51
T.P.S.
INSTRUMENTS Screws
REMOVAL
Remove the handlebar rear cover. ( 2-4)
Remove the three screws under instruments.
Remove the instruments from the handlebar
rear cover.
INSTALLATION
The installation sequence is the reverse of
removal.
Screw
FRONT TURN SIGNAL LIGHT BULB
REPLACEMENT
Remove the two screws attaching the turn
signal light shell and remove the screw
attaching bulb shell.
Remove the bulb and replace with a new one.
Screws
REAR TURN SIGNAL LIGHT BULB Screw
REPLACEMENT
Remove the one screw attaching the turn
signal light shell and remove the screw bulb
shell.
Remove the bulb and replace with a new one.
Screw
19-7
