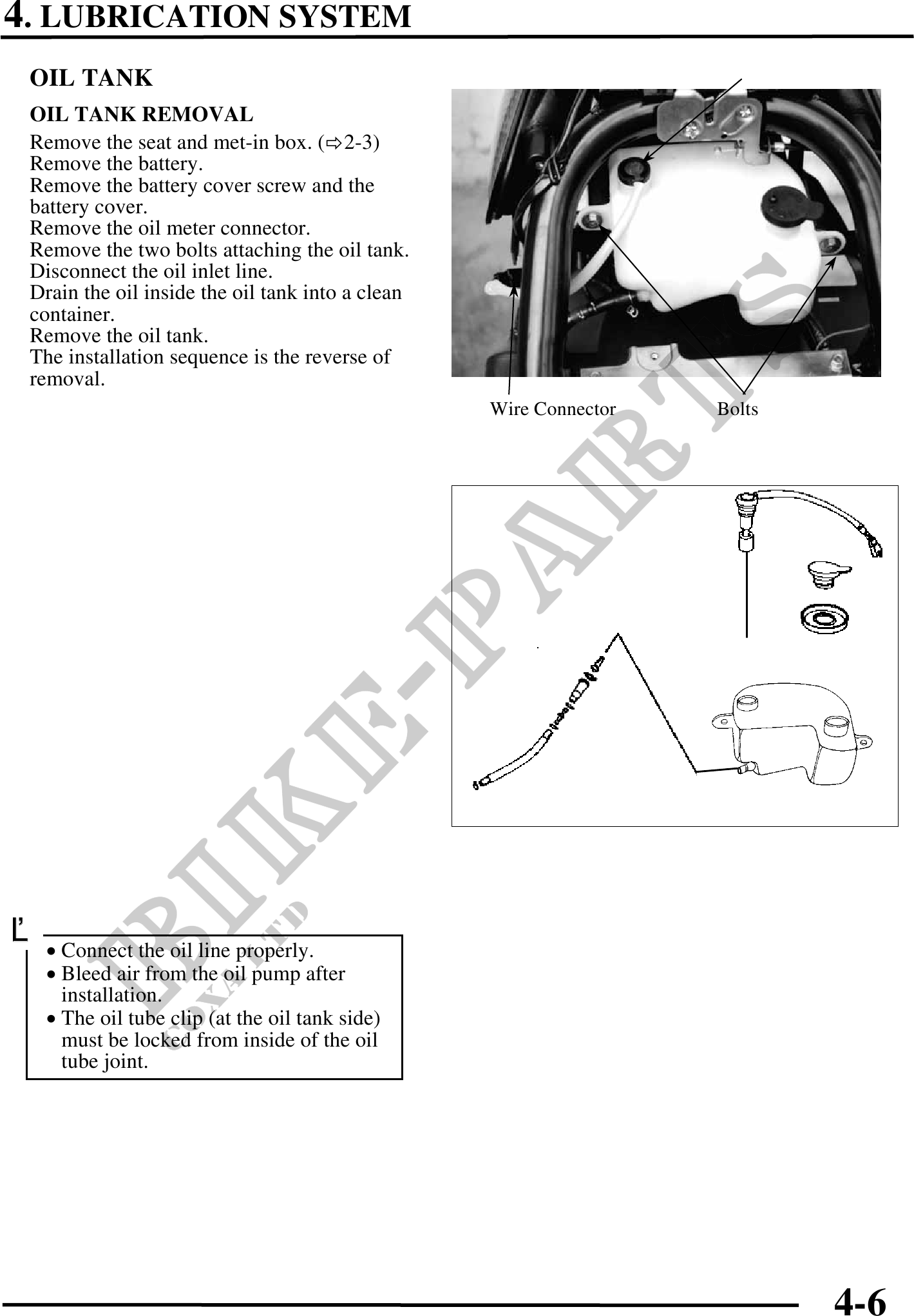

4. LUBRICATION SYSTEM OIL TANK Oil Meter OIL TANK REMOVAL Remove the seat and met-in box. ( 2-3) Remove the battery. Remove the battery cover screw and the battery cover. Remove the oil meter connector. Remove the two bolts attaching the oil tank. Disconnect the oil inlet line. Drain the oil inside the oil tank into a clean container. Remove the oil tank. The installation sequence is the reverse of removal. Wire Connector Bolts · Connect the oil line properly. · Bleed air from the oil pump after installation. · The oil tube clip (at the oil tank side) must be locked from inside of the oil tube joint. 4-6
