super 9 3 Workshop-manual : Page 18

          1. GENERAL INFORMATION                                                            SUPER 9         50

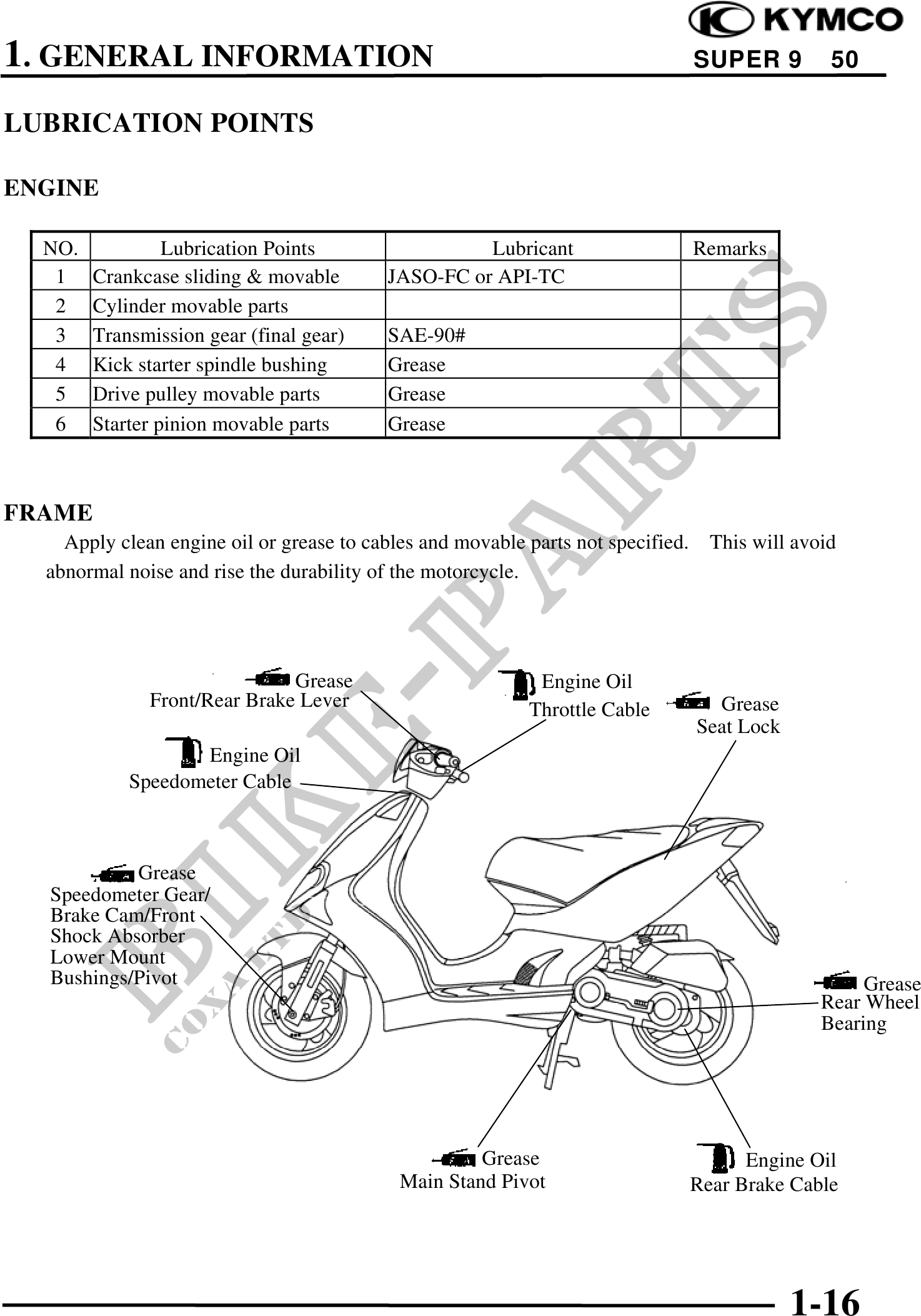

LUBRICATION POINTS

ENGINE

  NO.            Lubrication Points                 Lubricant                     Remarks
   1    Crankcase sliding & movable       JASO-FC or API-TC
   2    Cylinder movable parts
   3    Transmission gear (final gear)    SAE-90#
   4    Kick starter spindle bushing      Grease
   5    Drive pulley movable parts        Grease
   6    Starter pinion movable parts      Grease



FRAME
    Apply clean engine oil or grease to cables and movable parts not specified.     This will avoid
  abnormal noise and rise the durability of the motorcycle.




                              Grease                        Engine Oil
              Front/Rear Brake Lever                       Throttle Cable           Grease
                                                                                  Seat Lock
                   Engine Oil
            Speedometer Cable



           Grease
  Speedometer Gear/
  Brake Cam/Front
  Shock Absorber
  Lower Mount
  Bushings/Pivot                                                                                      Grease
                                                                                                 Rear Wheel
                                                                                                 Bearing




                                                     Grease                             Engine Oil
                                            Main Stand Pivot                      Rear Brake Cable




                                                                                              1-16
