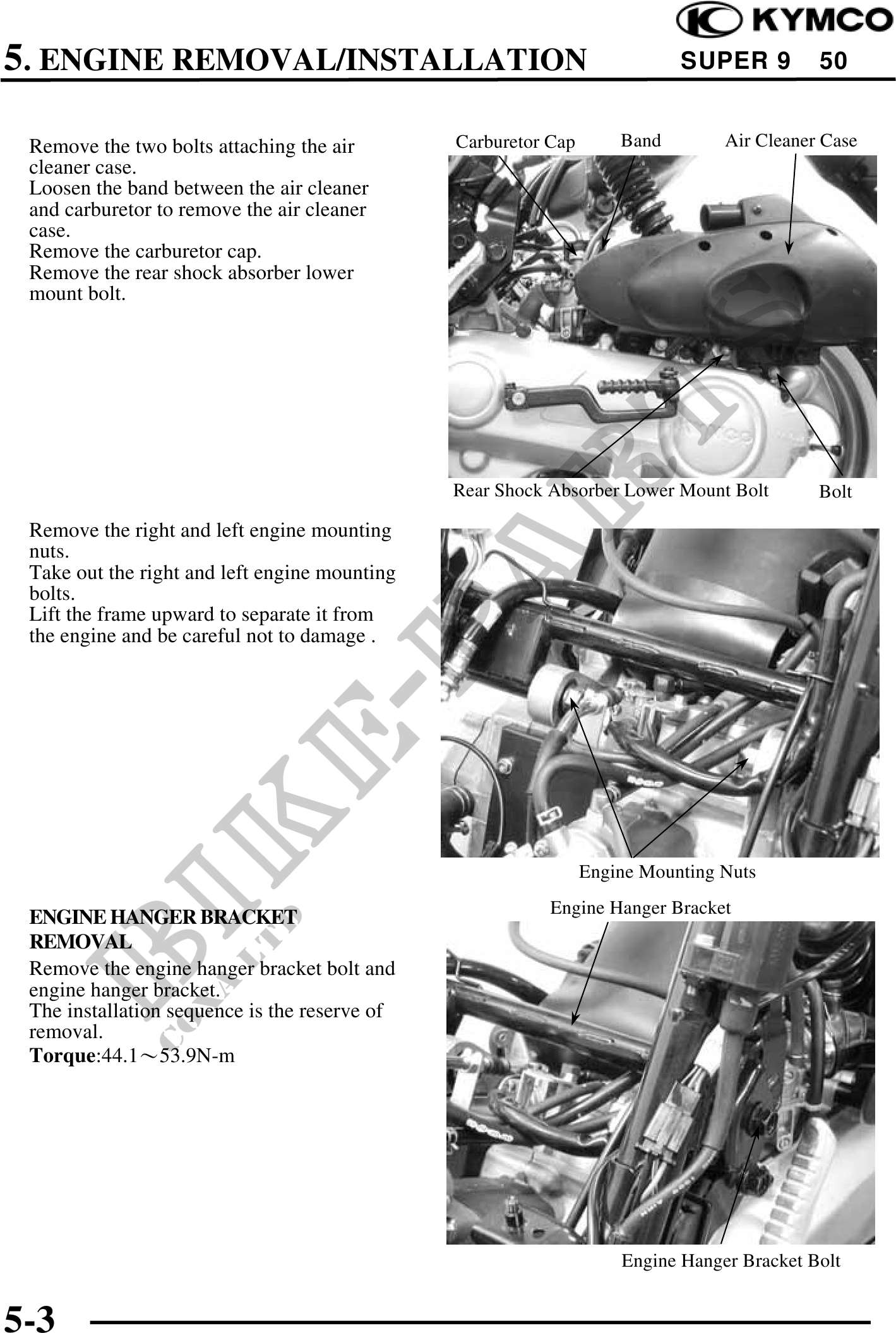

5. ENGINE REMOVAL/INSTALLATION SUPER 9 50
Remove the two bolts attaching the air Carburetor Cap Band Air Cleaner Case
cleaner case.
Loosen the band between the air cleaner
and carburetor to remove the air cleaner
case.
Remove the carburetor cap.
Remove the rear shock absorber lower
mount bolt.
Rear Shock Absorber Lower Mount Bolt Bolt
Remove the right and left engine mounting
nuts.
Take out the right and left engine mounting
bolts.
Lift the frame upward to separate it from
the engine and be careful not to damage .
Engine Mounting Nuts
Engine Hanger Bracket
ENGINE HANGER BRACKET
REMOVAL
Remove the engine hanger bracket bolt and
engine hanger bracket.
The installation sequence is the reserve of
removal.
Torque:44.153.9N-m
Engine Hanger Bracket Bolt
5-3
