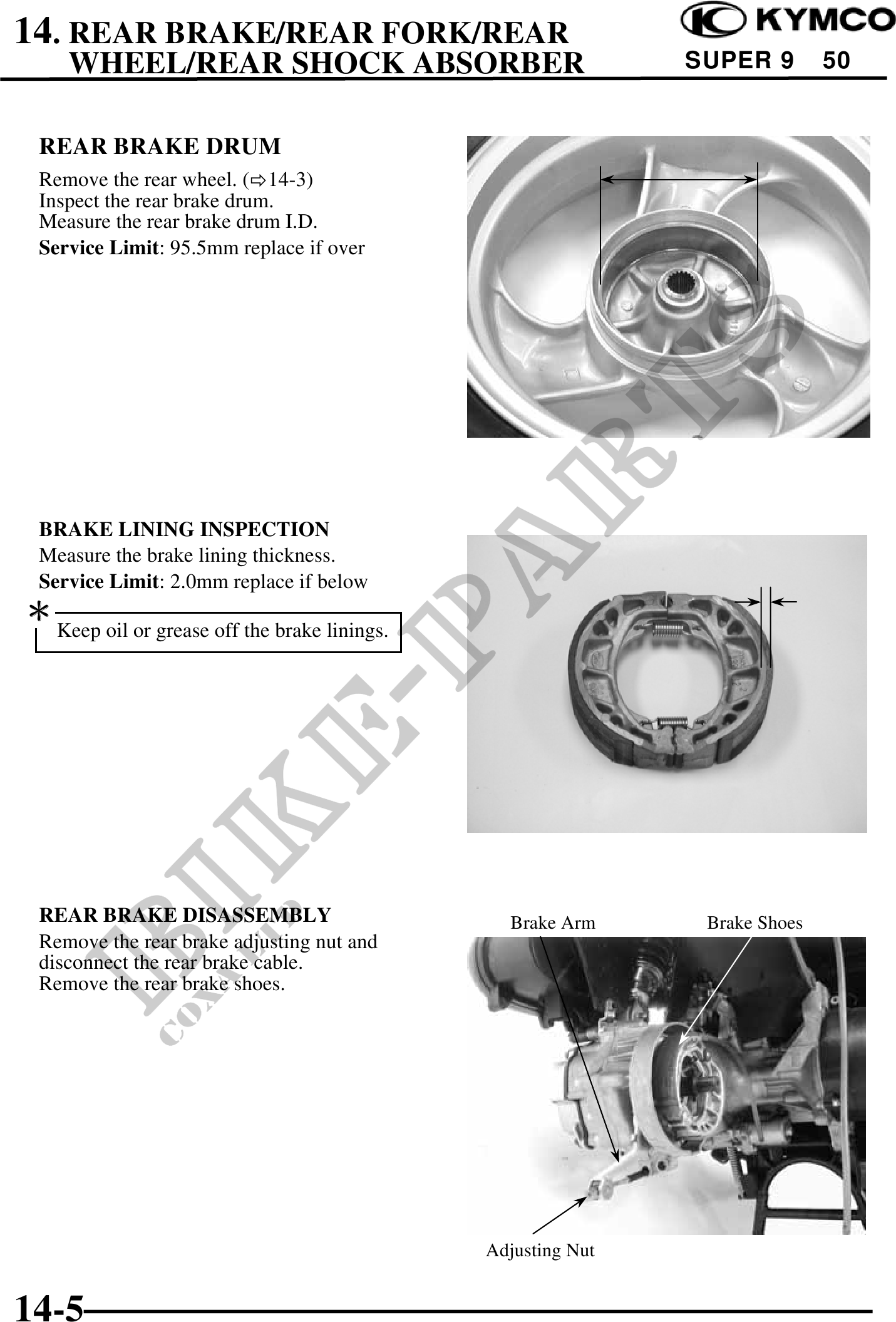

14. REAR BRAKE/REAR FORK/REAR
WHEEL/REAR SHOCK ABSORBER SUPER 9 50
REAR BRAKE DRUM
Remove the rear wheel. ( 14-3)
Inspect the rear brake drum.
Measure the rear brake drum I.D.
Service Limit: 95.5mm replace if over
BRAKE LINING INSPECTION
Measure the brake lining thickness.
Service Limit: 2.0mm replace if below
Keep oil or grease off the brake linings.
REAR BRAKE DISASSEMBLY Brake Arm Brake Shoes
Remove the rear brake adjusting nut and
disconnect the rear brake cable.
Remove the rear brake shoes.
Adjusting Nut
14-5
