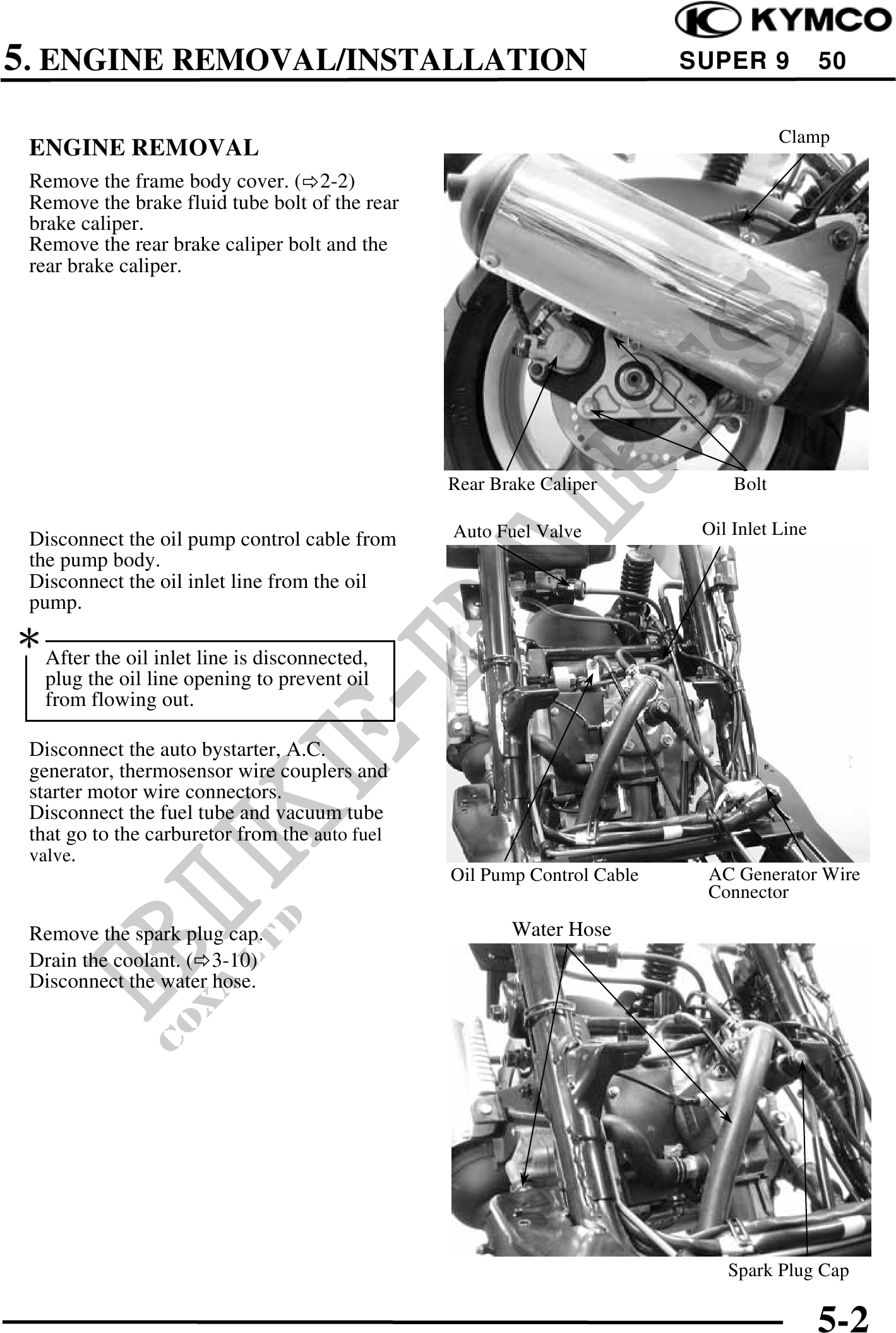

5. ENGINE REMOVAL/INSTALLATION SUPER 9 50
Clamp
ENGINE REMOVAL
Remove the frame body cover. ( 2-2)
Remove the brake fluid tube bolt of the rear
brake caliper.
Remove the rear brake caliper bolt and the
rear brake caliper.
Rear Brake Caliper Bolt
Auto Fuel Valve Oil Inlet Line
Disconnect the oil pump control cable from
the pump body.
Disconnect the oil inlet line from the oil
pump.
After the oil inlet line is disconnected,
plug the oil line opening to prevent oil
from flowing out.
Disconnect the auto bystarter, A.C.
generator, thermosensor wire couplers and
starter motor wire connectors.
Disconnect the fuel tube and vacuum tube
that go to the carburetor from the auto fuel
valve.
Oil Pump Control Cable AC Generator Wire
Connector
Remove the spark plug cap. Water Hose
Drain the coolant. ( 3-10)
Disconnect the water hose.
Spark Plug Cap
5-2
